AgieCharmilles CUT E series

Put efficiency at the touch of your finger
The AgieCharmilles CUT E Series puts efficiency at the touch of your finger with the smart, easy-to-use UNIQUA human-machine interface and onboard technologies that streamline your job setup. Thanks to the digital Intelligent Power Generator, cutting speed and surface finish are improved.

Optimal functionality and usability

Become instantly familiar with the CUT E, no matter what your background is. The UNIQUA human-machine interface allows sequential programming as well as object-oriented programming, giving you more flexibility and productivity.

High performance with a complete range of technologies

Extremely high removal rates and low hourly running costs are possible with cheap brass wires (speed technology). The generator has a complete range of technologies including all materials needed for your workshop.

High-accuracy T-type mechanics

The T-type base frame permits the loading of large and heavy work pieces without affecting accuracy. The compact and rigid machine structure guarantees good positioning accuracy and highly repeatable results.

CUT E 350 - CUT E 600

Please accept all cookies to view the external content.

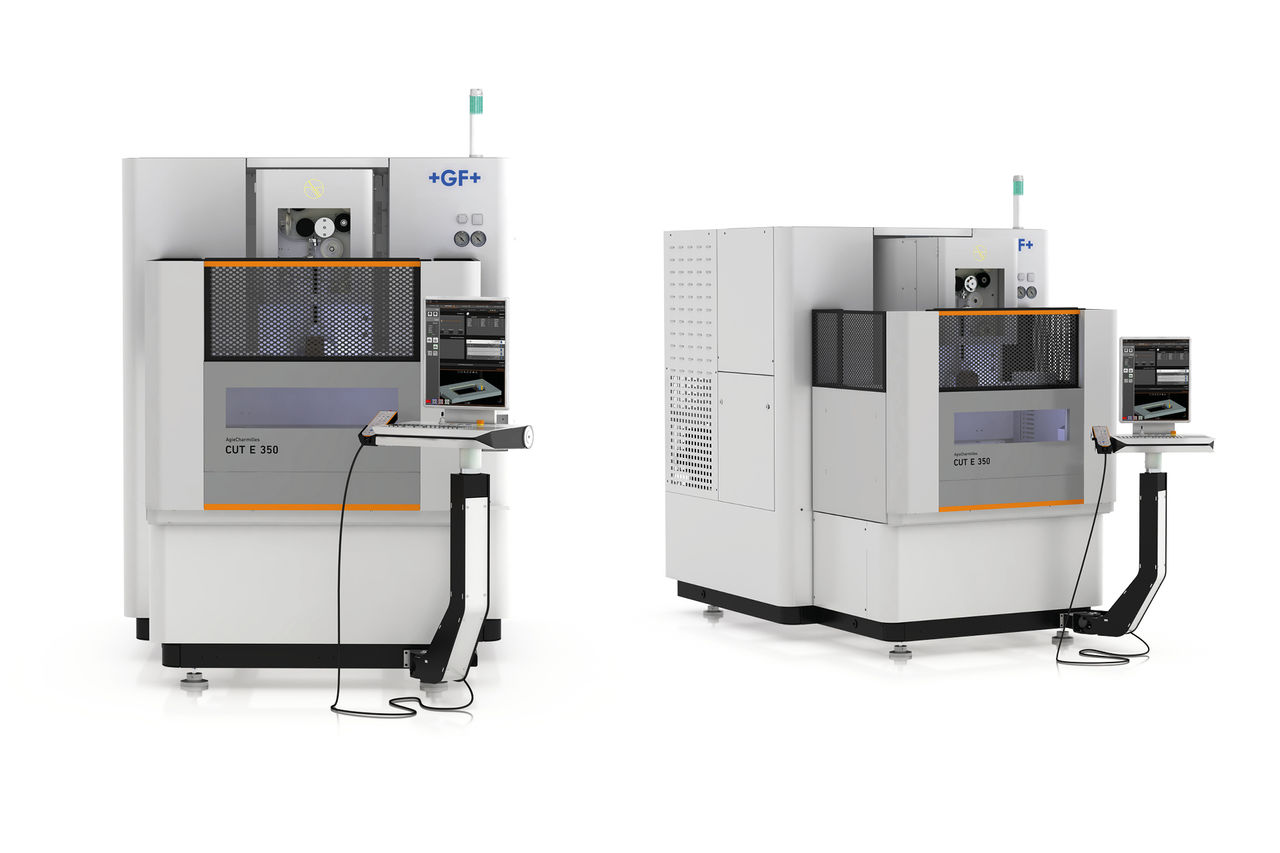

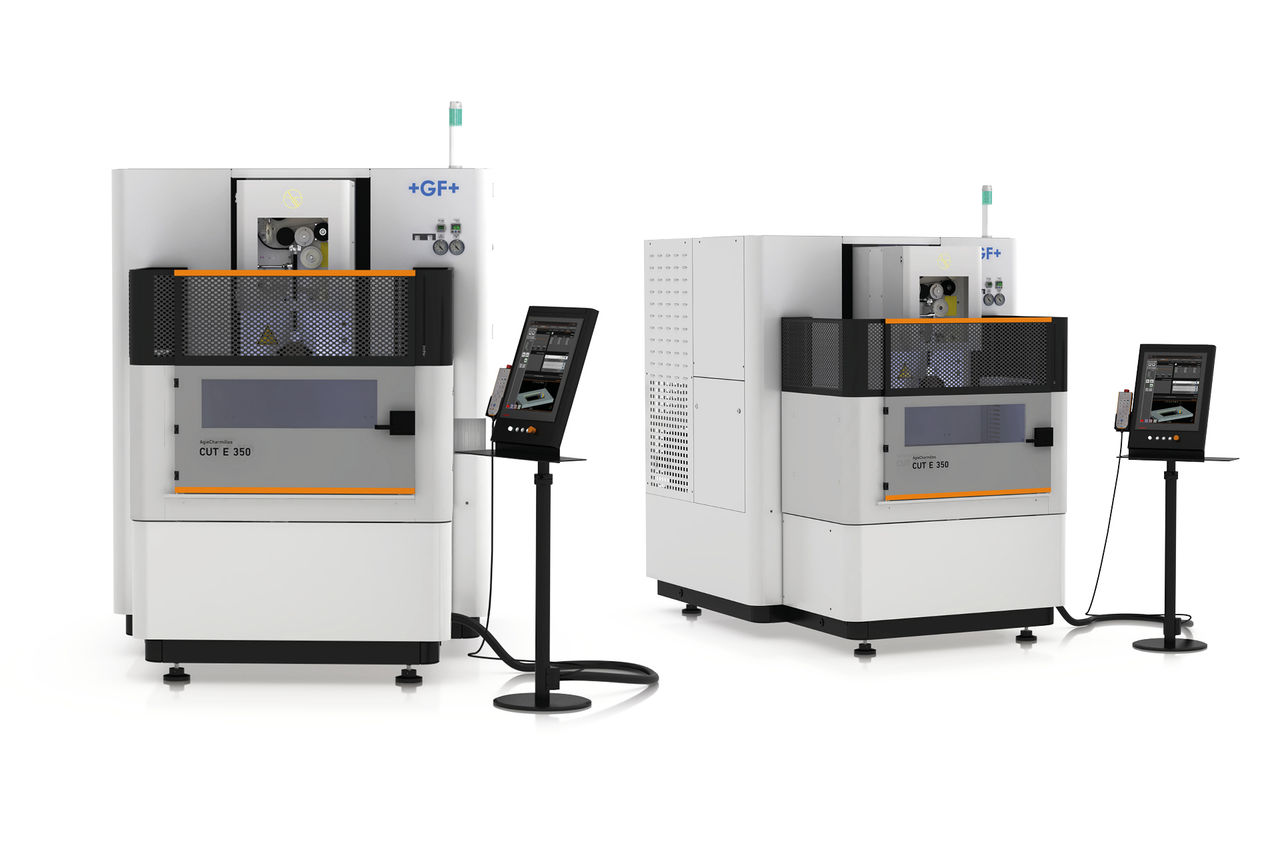

AgieCharmilles CUT E 350
AgieCharmilles CUT E 350

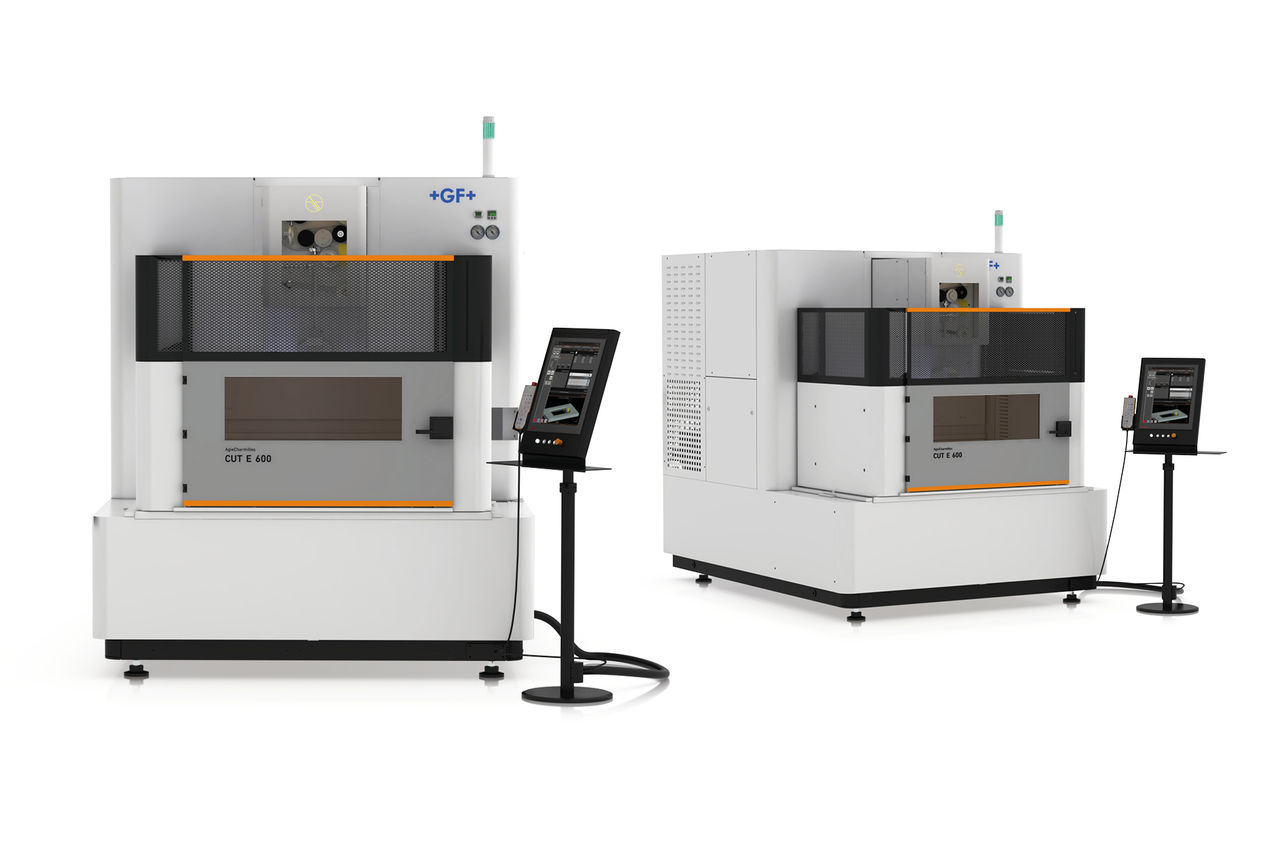

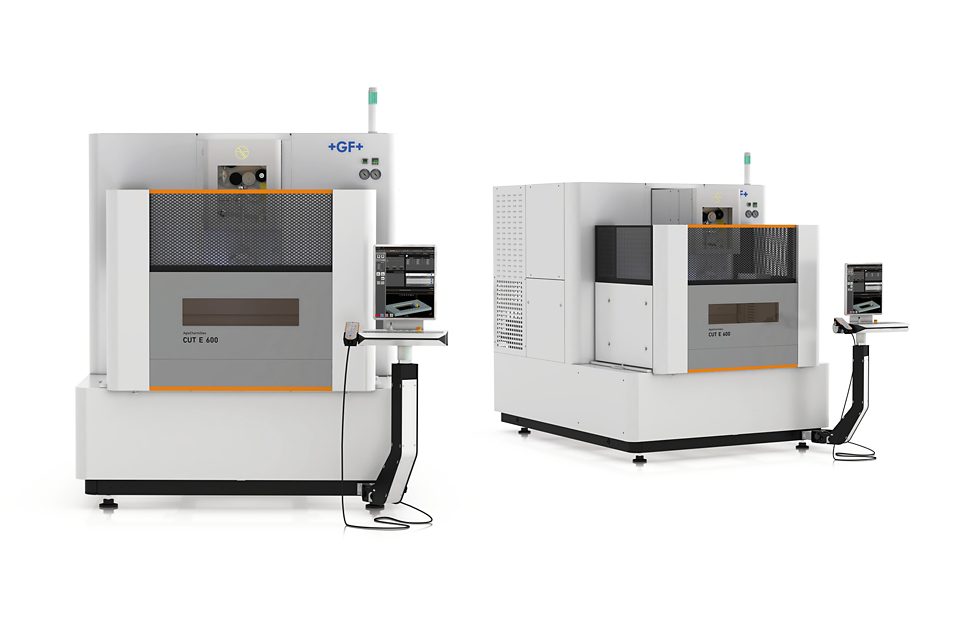

AgieCharmilles CUT E 600
AgieCharmilles CUT E 600
1/

1,000 kg part weight

Thanks to the T-shaped base, large and heavy workpieces up to 1,000 kg can be easily loaded and unloaded.

19-inch touch screen

Gives you a clear view of the process management. Job preparation, monitoring of the current job, and various functions are available in a single view.

30% less floor space

Significantly more compact that its predecessor, this machine consumes only about four square meters, allowing its efficient integration into your workshop.

2,000 hours

Maintenance every 2,000 machining hours is recommended for the optimal functionality, reliability and precision of your equipment.

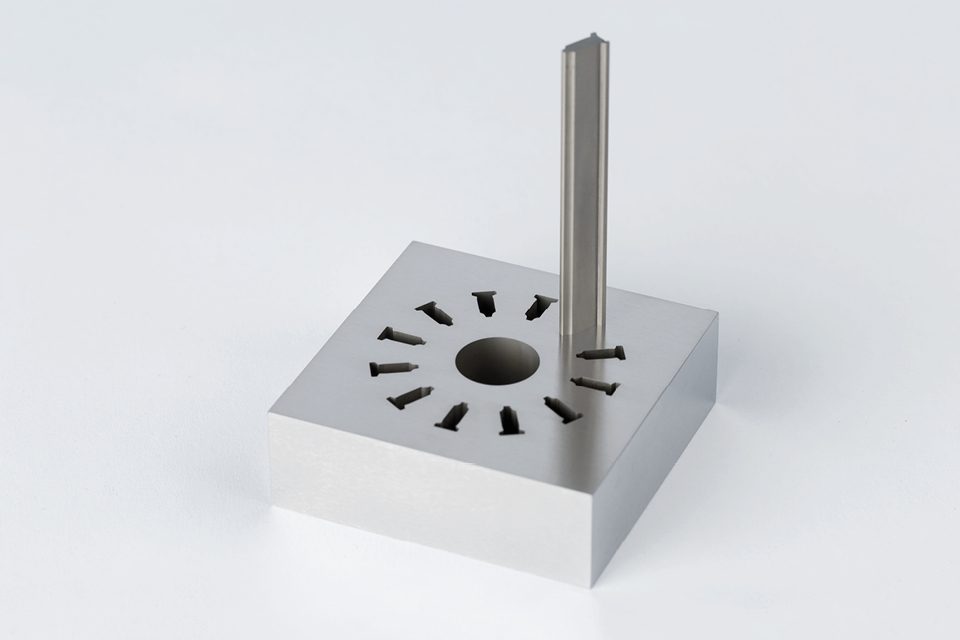

Power your performance

Power your performance

Your efficient production is at the heart of the modern Intelligent Power Generator (IPG). Its onboard technologies boost cutting speed, precision and surface quality to satisfy your customers and put you ahead of your competitors.

Outstanding precision and repeatability

Outstanding precision and repeatability

This series of solutions demonstrates the excellent machining capabilities essential for precision parts: remarkable form accuracy, excellent contour precision, exemplary surface quality and outstanding production repeatability.

Customize your solution

Customize your solution

Enlarge capabilities of your machine, by customizing it to your specific workshop needs like Wire chopper and big wire spool. It’s as easy as choosing from our wide range of options.

Specifications

CUT E 350

Main specifications

Main specifications
Travel X, Y, Z  350 x 250 x 250 mm
13.78 x 9.84 x 9.84 in
Min. surface roughness RA 0.14 μm
6 μin
Dimensions of complete equipment * 1850 x 3050 x 2220 mm
72.83 x 120.07 x 87.40 in
Max. taper angle / height ± 30°/50 mm
± 30°/1.97 in
Max. workpiece dimensions 820 x 680 x 250 mm
32.28 x 26.77 x 9.84 in
Max. workpiece weight 400 kg
882 lbs

Workpiece

Workpiece
Travel U, V ± 45 mm
± 1.77 in
Wire diameters 0.15-0.30 (0.10 optional) mm
0.006-0.012 (0.04 optional) in
Max. wire spool weight               8 (25 optional) kg

* Width x depth x height

CUT E 600

Main specifications

Main specifications
Travel X, Y, Z  600 x 400 x 350 mm
23.62 x 15.75 x 13.78 in
Min. surface roughness RA 0.14 μm
6 μin
Dimensions of complete equipment * 2160 x 3400 x 2320 mm
85.04 x 133.86 x 91.34 in
Max. taper angle / height ± 30°/50 mm
± 30°/1.97 in
Max. workpiece dimensions 1030 x 800 x 350 mm
40.55 x 31.5 x 13.78 in
Max. workpiece weight 1000 kg
2205 lbs

Workpiece

Workpiece
Travel U, V ± 50 mm
± 1.97 in
Wire diameters 0.15-0.30 (0.10 optional) mm
0.006-0.012 (0.04 optional) in
Max. wire spool weight              8 (25 optional) kg
