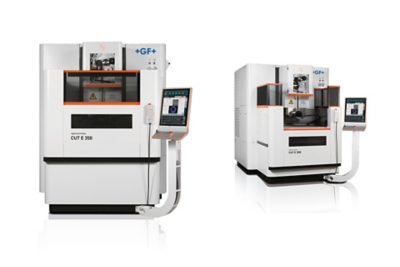

CUT E 350 - CUT E 600

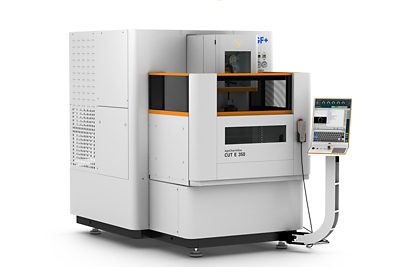

AgieCharmilles CUT E 350
AgieCharmilles CUT E 350
AgieCharmilles CUT E 600
- AgieCharmilles CUT E 350
- AgieCharmilles CUT E 350
- AgieCharmilles CUT E 600
1/
规格
CUT E 350
Main Specifications |
|
| Travel X, Y, Z | 350 x 250 x 250 mm 13.78 x 9.84 x 9.84 in |
| Min. surface roughness RA | 0.12 μm 4.72 μin |
| Dimensions of complete equipment * | 1750 x 2470 x 2220 mm 68.9 x 97.24 x 86.61 in |
| Max. taper angle / height | ± 30/56° mm ± 30/2.20° in |
| Max. workpiece dimensions | 820 x 680 x 245 mm 32.28 x 26.77 x 9.64 in |
| Max. workpiece weight | 400 kg 882 lbs |
Workpiece and electrode |
|
| Travel U, V | ± 45 mm ± 1.77 in |
| Wire diameters | 0.15-0.30 (0.10 optional) mm 0.006-0.012 (0.04 optional) in |
| Max. wire spool weight | 8 (25 optional) kg |
* Width x depth x height
CUT E 600
Main Specifications |
|
| Travel X, Y, Z | 600 x 400 x 350 mm 23.62 x 15.75 x 13.78 in |
| Min. surface roughness RA | 0.12 μm |
| Max. taper angle / height | ± 30/56° mm ± 30/2.20° in |
| Max. workpiece dimensions | 1030 x 800 x 345 mm 40.55 x 31.5 x 13.58 in |
| Max. workpiece weight | 1000 kg 2205 lbs |
Workpiece and electrode |
|
| Travel U, V | ± 50 mm ± 1.97 in |
| Wire diameters | 0.15-0.30 (0.10 optional) mm 0.006-0.012 (0.04 optional) in |
| Max. wire spool weight | 8 (25 optional) kg |
