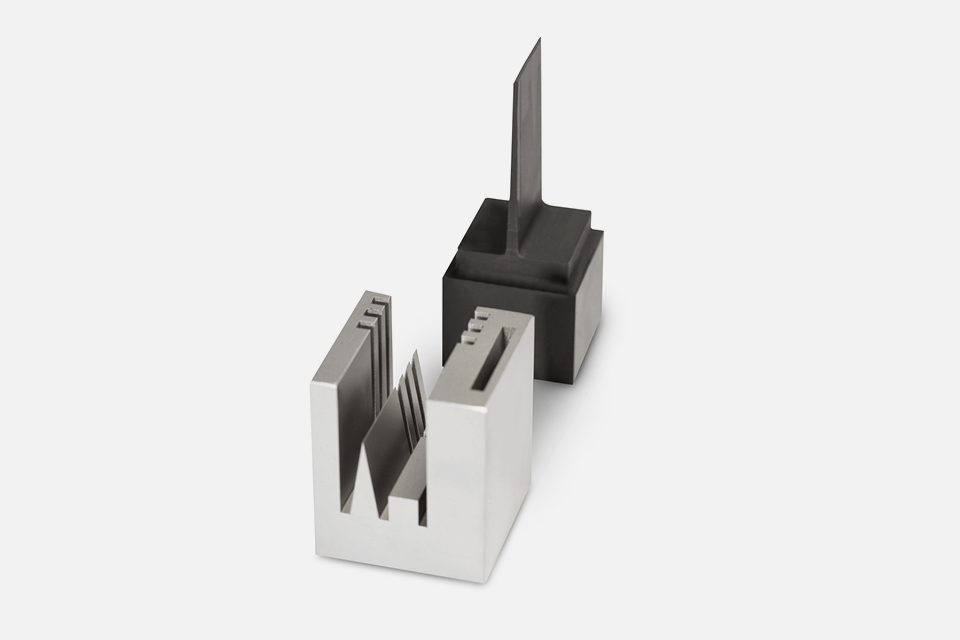

提高速度和质量

iGAP 发电机技术可帮助模具制造商使用电火花成形加工以更快速度实现更小、更精确的火花隙,从而满足他们对更高生产力和速度的需求。根据需要,iGAP 可以改变电极正面和侧面的火花功率。火花功率仅在必要时增加,这也有助于保护电极,增加 ISPG 技术提供的增益。

人机界面 (HMI) 提高生产力

这款新型 AC FORM HMI 的开发基于携手众多模具制造商进行旨在简化模具制造技术的研究。让 GF Machining Solutions 界面如此成功的易用性不仅得以保持,而且还在进一步开发以支持模具制造商在成形加工中的应用。

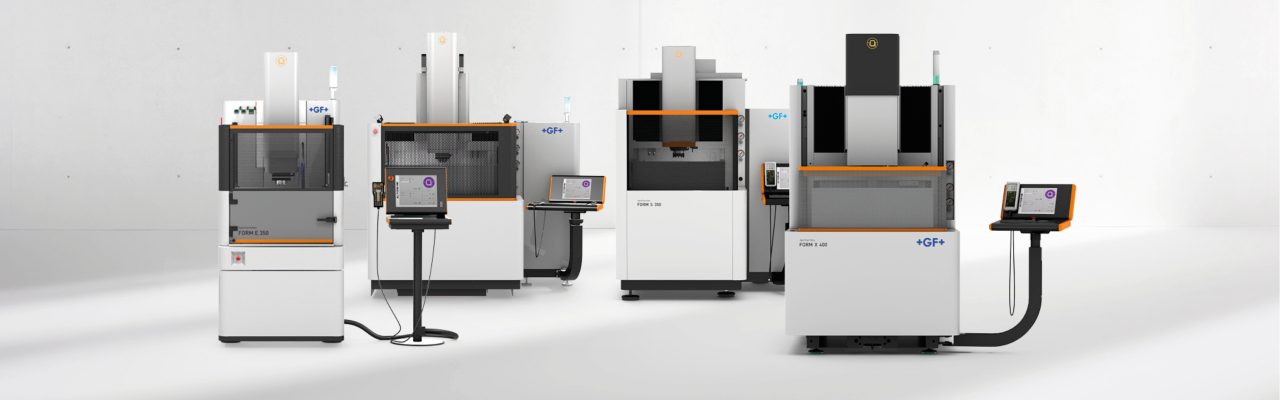

FORM P 350 - FORM P 600 - FORM P 900

零件重量

短 C 型框架结构造和超大铸铁机身可确保电火花成形加工机床在整个使用寿命期间的机械稳定性和精度。此外,电火花成形加工机床十分坚固,可吸收所有加工力,以保持零件和电极之间精确的间隙。

定位精度

为了获得可靠的定位准确度,只可使用线性光栅尺。它们可以消除所有典型误差,如反向间隙、膨胀和磨损影响等。GF Machining Solutions 为电火花成形加工机床开发的轴伺服控制系统是一种闭环测量解决方案,旨在提供绝对可靠的准确度,无论行程如何。

生产力

自动化使生产能够在任何时间进行。最终实现更短的交付周期时间、更高的生产力和更快的电火花成形加工机床投资回报。借助 System 3R 自动化解决方案,生产可以全年无休地不间断运转。通过电火花成形加工解决方案,可实现无限可能。

加工稳定性

作为 AgieCharmilles FORM P 600 中的一个变量功能提供的出色的热稳定性能使得在电火花成形加工的整个加工过程中以及任何温度条件下都可提供完美和准确的加工。

规格

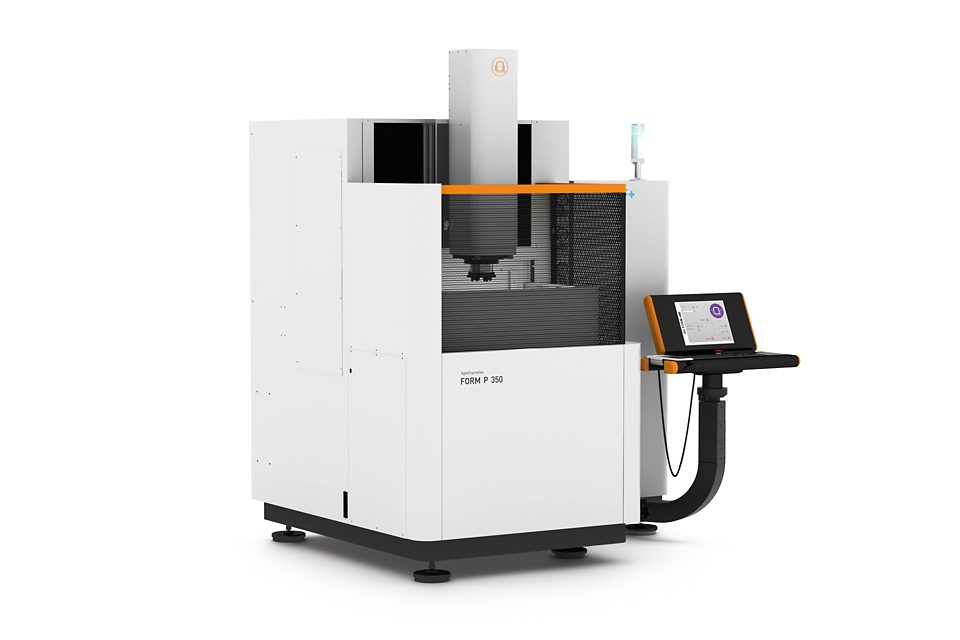

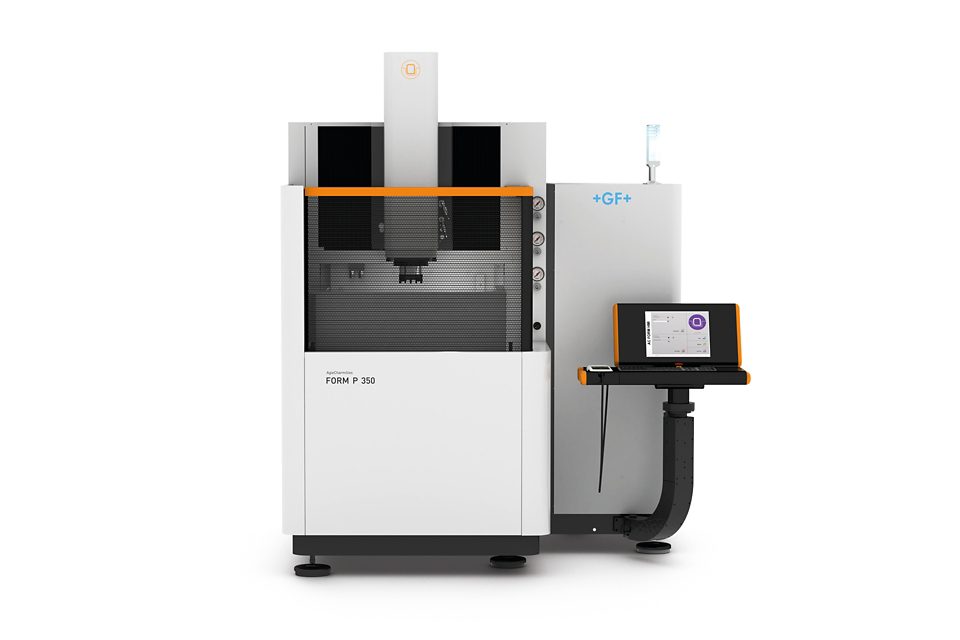

FORM P 350

Main Specifications

Main Specifications

Machine dimensions *

1900 x 1690 x 2398 mm

74.80 x 66.53 x 94.4 in

Total weight (without dielectric)

2800 kg

6173 lbs

Travel X, Y, Z *

350 x 250 x 300 mm

13.78 x 9.84 x 11.81 in

Min./Max. distance between table and chuck ***

150-450 mm

5.91-17.72 in

Best surface finish RA 0.08 μm
Capacity

410 l

108.65 gal

Workpiece and electrode

Workpiece and electrode

Max. workpiece dimensions *

700 x 460 x 285 mm

27.56 x 18.11 x 11.22 in

Max. workpiece weight

500 kg

1102.31 lbs

Max. electrode weight

50 kg

110.23 lbs

Bath level (programmable)

100 - 305 mm

3.94 - 12.01 in

* Width x depth x height ** Width x depth *** With C-Axis Eco + System 3R Macro

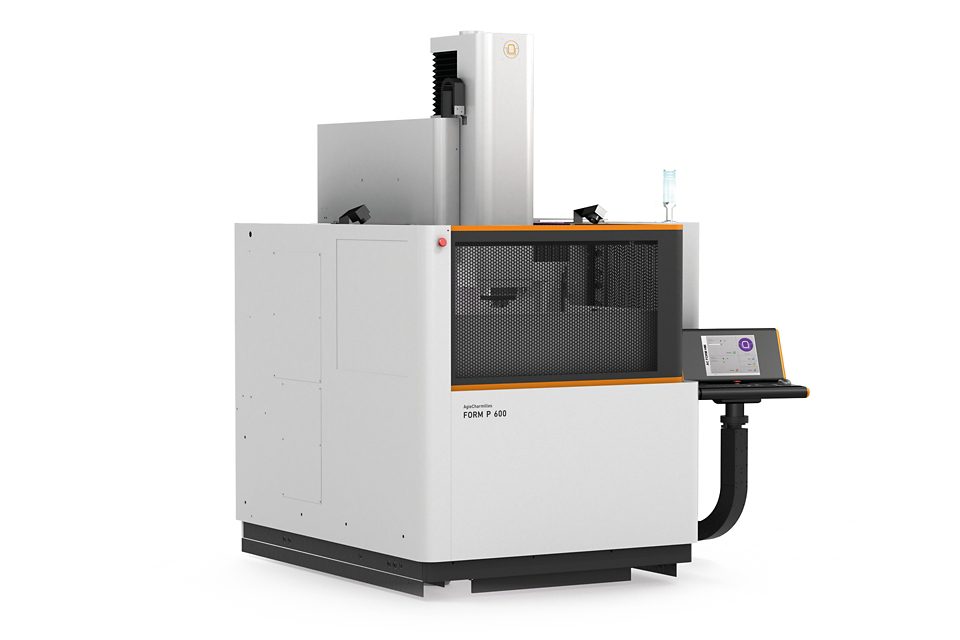

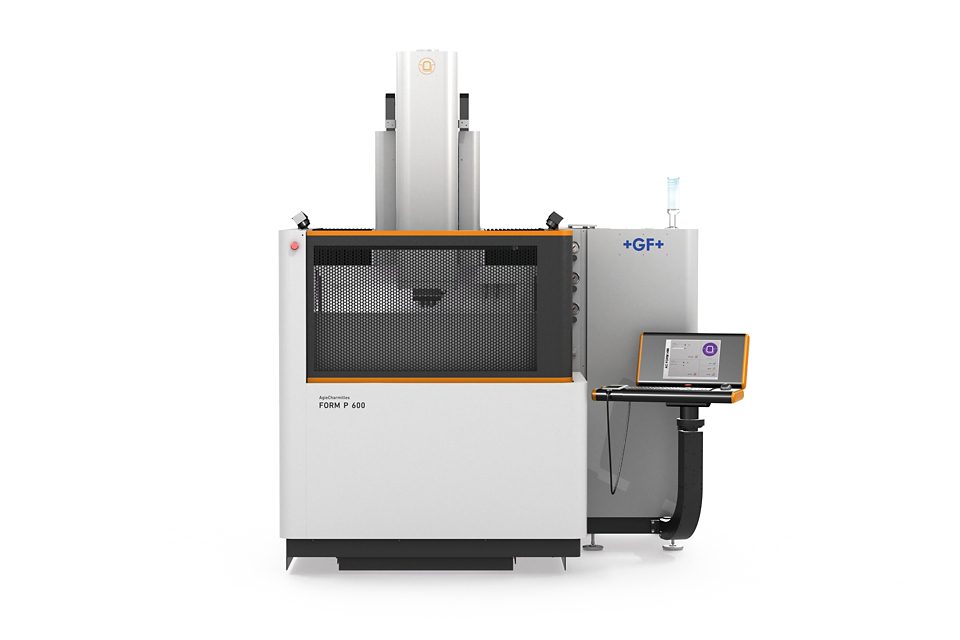

FORM P 600

Main Specifications

Main Specifications

Machine dimensions *

2265 x 2110 x 2780 mm

89.17 x 83.07 x 109.45 in

Total weight (without dielectric)

4500 kg

9920 lbs

Travel X, Y, Z *

600 x 400 x 450 mm

23.62 x 15.75 x 17.72 in

Min./Max. distance between table and chuck ***

150-600 mm

5.91-23.62 in

Best surface finish RA 0.08 μm
Capacity

700 l

184.8 gal

Workpiece and electrode

Workpiece and electrode

Max. workpiece dimensions *

1040 x 730 x 410 mm

40.94 x 28.74 x 16.14 in

Max. workpiece weight

1600 kg

3527.40 lbs

Max. electrode weight

50 kg

110.23 lbs

Bath level (programmable)

100 - 400 mm

3.94 - 15.75 in

* Width x depth x height ** Width x depth *** With C-Axis Eco + System 3R Macro

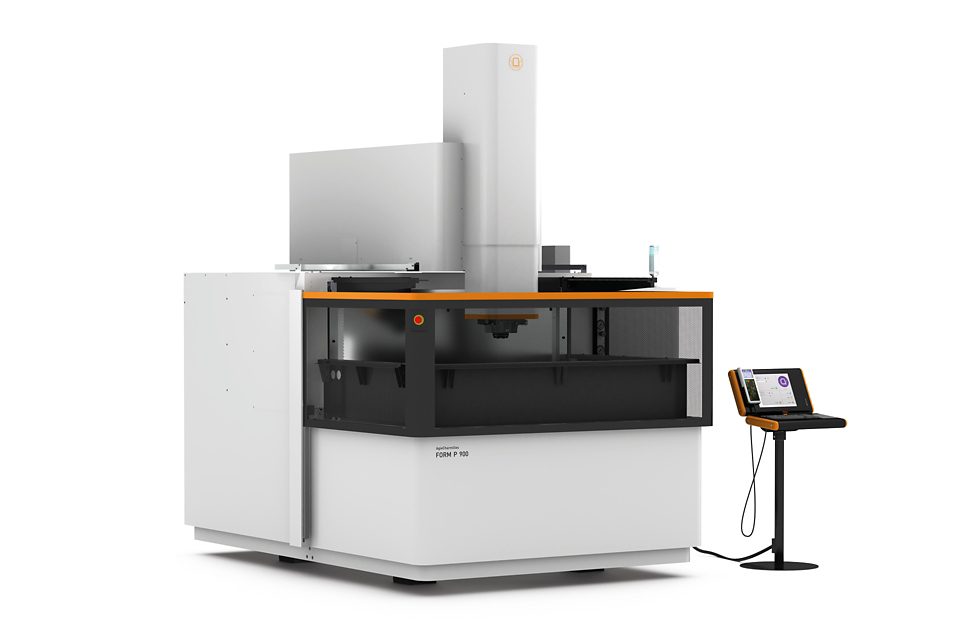

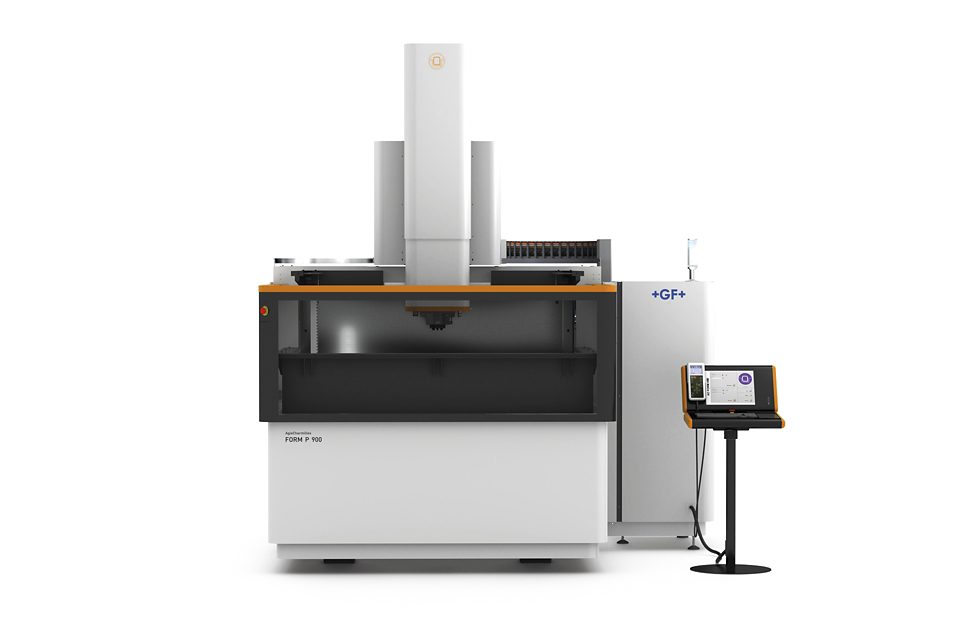

FORM P 900

Main Specifications

Main Specifications

Machine dimensions *

2970 x 3100 x 3320 mm

116.93 x 122.05 x 130.71 in

Total weight (without dielectric)

7000 kg

15432 lbs

Travel X, Y, Z *

900 x 700 x 500 mm

35.43 x 27.56 x 19.68 in

Min./Max. distance between table and chuck ***

322-822 mm

12.68-32.36 in

Best surface finish RA 0.1 μm
Capacity

2500 l

662.5 gal

Workpiece and electrode

Workpiece and electrode

Max. workpiece dimensions *

1670 x 1120 x 560 mm

65.75 x 40.09 x 22.05 in

Max. workpiece weight

3000 kg

6613.86 lbs

Max. electrode weight

50 kg

110.23 lbs

Bath level (programmable)

100 - 500 mm

3.94 - 21.65 in

* Width x depth x height ** Width x depth *** With C-Axis Eco + System 3R Macro
