AgieCharmilles FORM P 350 Dedicated

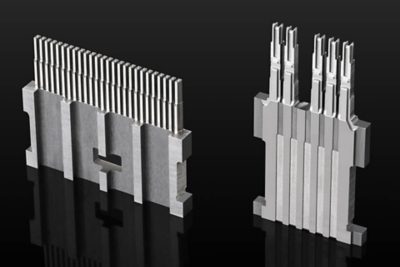

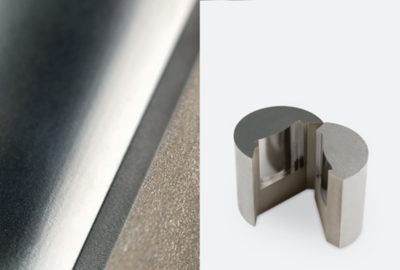

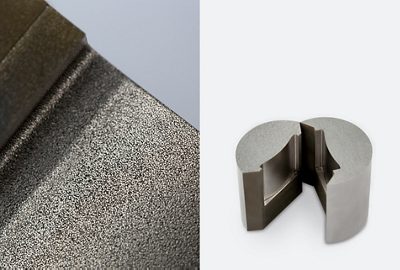

制造连接器模具需要高速、高精度以及高加工性能。为了向模具制造商提供支持,GF Machining Solutions 开发了新的 AgieCharmilles FORM P 350 Dedicated,这是一种量身定制、即时可用的刻模解决方案,用于快速可靠地制造连接器模具嵌件。

AgieCharmilles FORM P 系列

AgieCharmilles FORM P 350 D

请接受所有cookie以查看外部内容。

规格

FORM P 350 Dedicated

Machine

Machine

Architecture C-frame/Fixed table/Drop tank
Machine dimensions (*) 1960 x 1690 x 2590 mm
77.16 x 66.54 x 101.97 in
Total weight (without dielectric)  2025 kg
4464 lbs
Floor space (**)
3700 x 3400 mm
146.6 x 133.8 in

X-, Y-, Z-axes

X-, Y-, Z-axes

X, Y, Z travel (*) 350 x 250 x 300 mm
13.68 x 9.84 x 11.81 in
X-, Y-axes speed 6 m/min
19.7 ft/min
Z-axis speed 6 m/min
19.7 ft/min
Positioning resolution X, Y, Z  0.05 µm
0.000002 in

Work area

Work area

Worktank size (*) 790 x 530 x 350 mm
31.1 x 20.86 x 13.78 in
Worktable size (**) 500 x 400 mm
19.68 x 15.75 in
Distance floor to clamping level 1070 mm
42.12 in
Min./Max. distance between table and chuck (***) 150/450 mm
5.9-17.7 in

Workpiece and electrode

Workpiece and electrode

Max. electrode weight 15 kg
33 lbs
Max. workpiece weight 100 kg
220 lbs
Max. workpiece dimensions (*) 700 x 460 x 200 mm
27.56 x 18.11 x 7.87 in
Bath level (programmable) 0 - 250 mm
0 - 9.84 in

* 宽 x 深 x 高 ** 宽 x 深 *** 带 C 轴 Eco + System 3R Macro*

Dialectric unit

Dialectric unit

Capacity 200 l
52.8 gal
Number of filter elements and type 2 Paper filter
Heat exchanger for the dielectric Integrated (Dielectric-Water)
Flushing injections 2 laterals, 1 through the work piece, 1 through the electrode, 1 suction

Generator

Generator

Generator type ISPG
Max. machining current 40 A
Best surface finish 0.1 µm
4 µin

Electrical supply

Electrical supply

Standard voltage 3 x 380/400 ± 10% V
Frequency 50/60 (50 standard) Hz

Control unity

Control unity

Operating system Windows 10
Data input 17” LCD screen, mouse or touch screen, keyboard and remote control
User interface AC FORM HMI
Expert system TECFORM

Rotary Tool Changer (RTC8-LE) *

Rotary Tool Changer (RTC8-LE) *

Number of electrodes 8
Max. electrode weight 5 kg
11 lbs
Max. electrode dimension

150 x 50 mm or Ø75 mm

13 x 1.96 in Ø2.95 in

Height: 180 mm

Height: 7.08 in

C-axis *

C-axis *

Max. electrode weight on automatic chuck  15 kg
33 lbs
Rotation speed 0-100 rpm
Max. inertia

2000 kgcm2
683 lbsin2

Measuring system *

Measuring system *

3D probe System 3R or Erowa

Heat exchanger *

Heat exchanger *

Air/water for the cabinet

* 选项
