Wire-cutting EDM

What is Wire-cutting EDM?

The Wire EDM process uses an electrical spark created between two conductive parts, a wire that cuts and a part from which material will be removed. Using a dielectric solution to control the electrical discharge and applying the metallic wire to cut a programmed contour, a Wire EDM machine can produce extrusion dies, blanking punches, precise molds, special parts with small features and many more.


Why come to GF Machining Solutions for your wire cutting machine?

At the forefront of the EDM cutting industry for more than a hundred years, GF Machining Solutions has a proven record of providing reliable and high-performance solutions for wire electrical discharge machines. With a strong technical expertise and a solid patent history, GF Machining Solutions is your preferred partner for any wire EDM machining project, whether it be ultraprecise machining, mold making, or simply a process requiring high-precision cutting performances. Discover our unique innovations that allow our machines to provide outstanding performances.

Main competitive advantages

Please accept all cookies to view the youtube video content.

Intelligent Power Generator (IPG), the heart of our EDM machines

Do you know that the heart of our EDM sinker and wire cutting machines is engineered and assembled in-house at our facility in Switzerland? Our cutting-edge IPG (Integrated Power Generator) is a fully digital and resonant switching mode generator, enabling exceptional performance while minimizing power consumption.


Please accept all cookies to view the external content.

Watch the videos of our competitive advantages

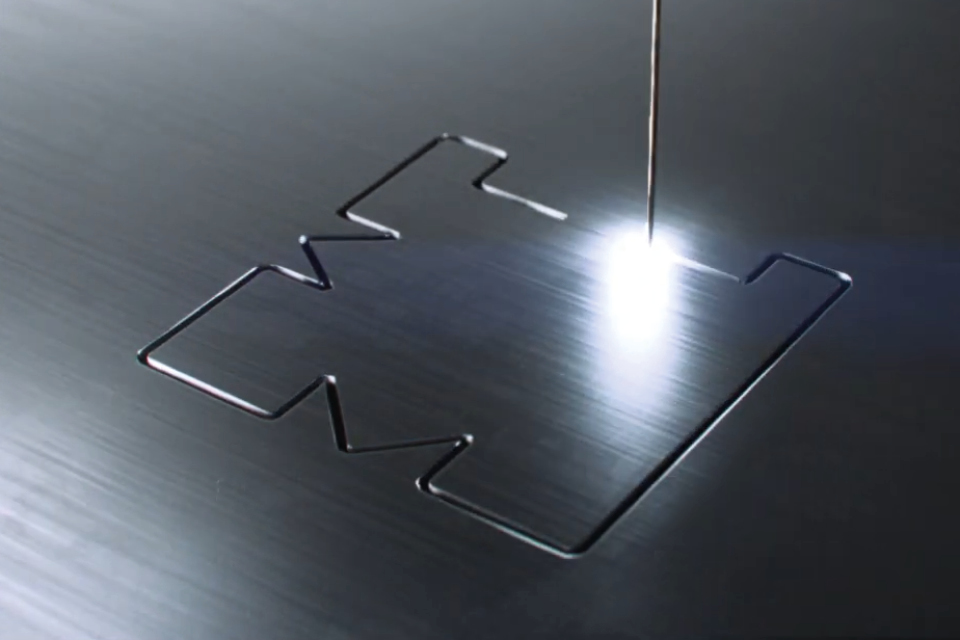

Turbo Tech

Please accept all cookies to view the youtube video content.

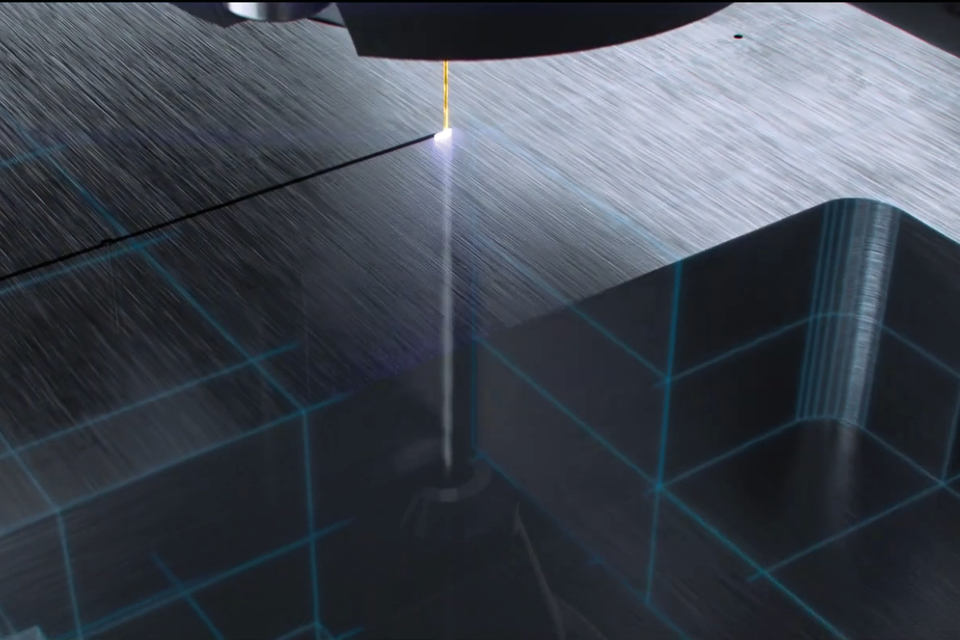

ISPS

Please accept all cookies to view the youtube video content.

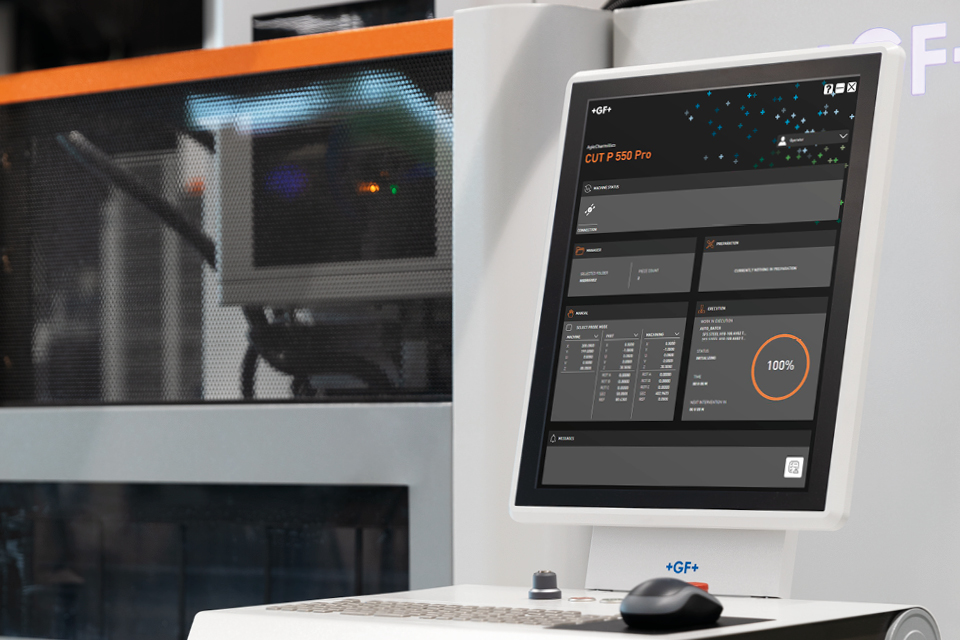

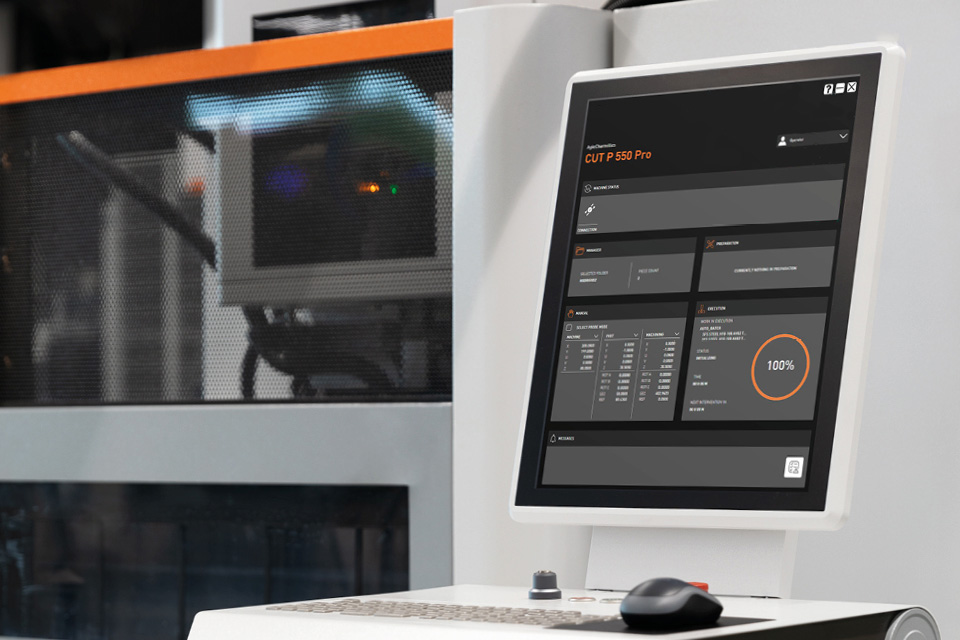

Uniqua

Please accept all cookies to view the youtube video content.

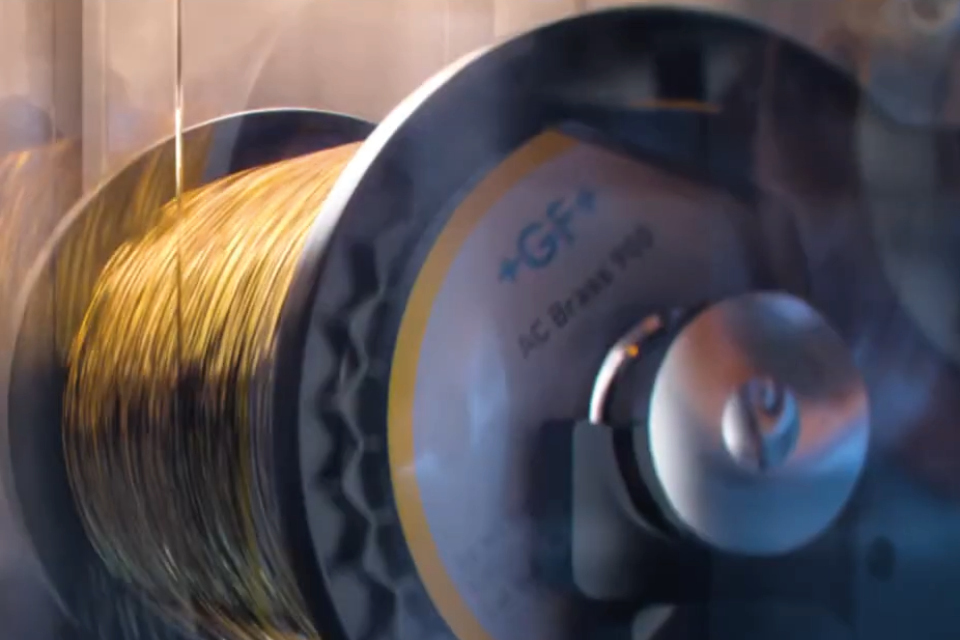

iWire

Please accept all cookies to view the youtube video content.


Overview of the series

Please accept all cookies to view the external content.

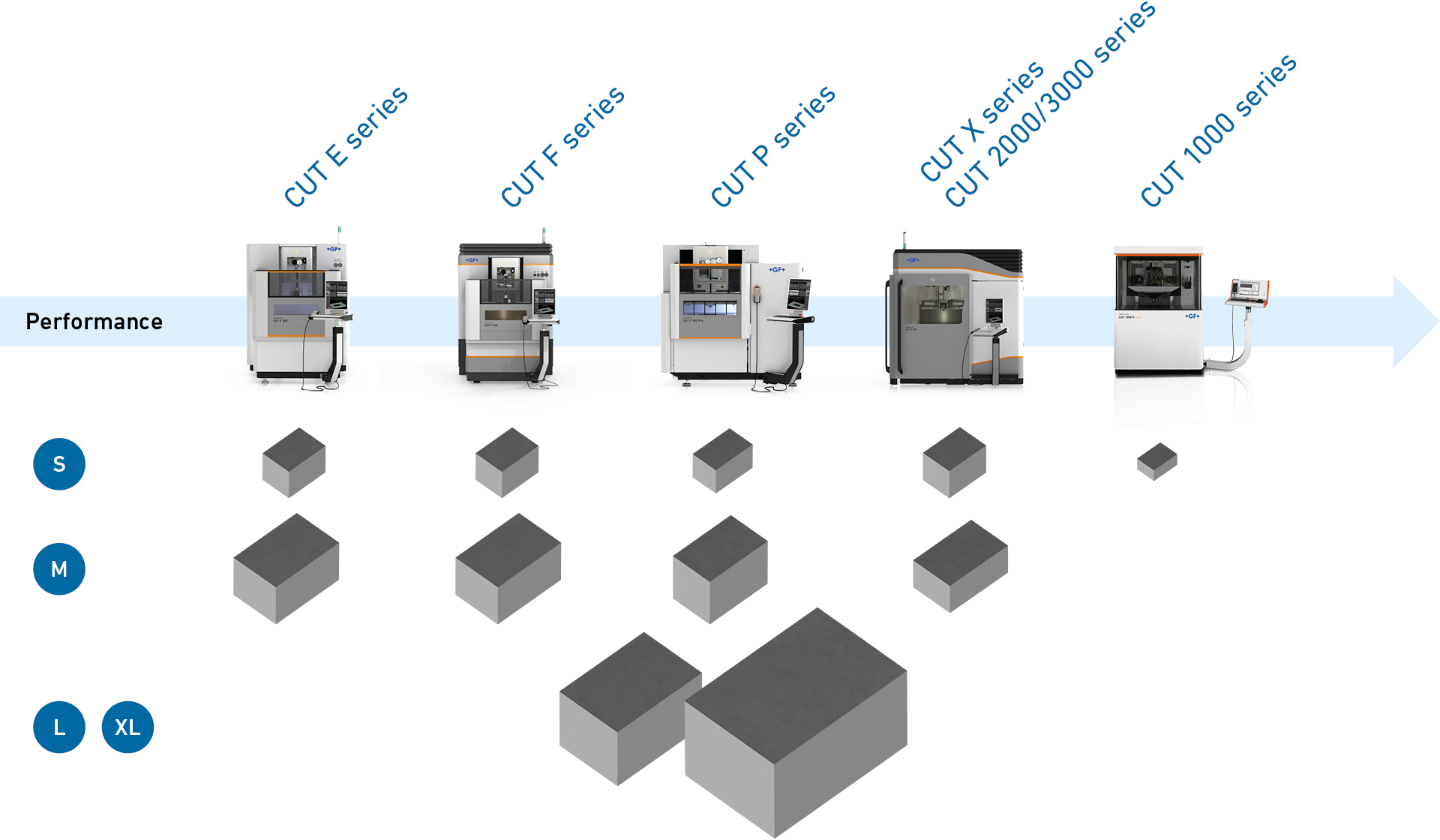

Our range of Wire EDM machines

machine range overview
small range
medium range
large and extra large machines


Overview Small Medium Large / Extra large

Please accept all cookies to view the external content.

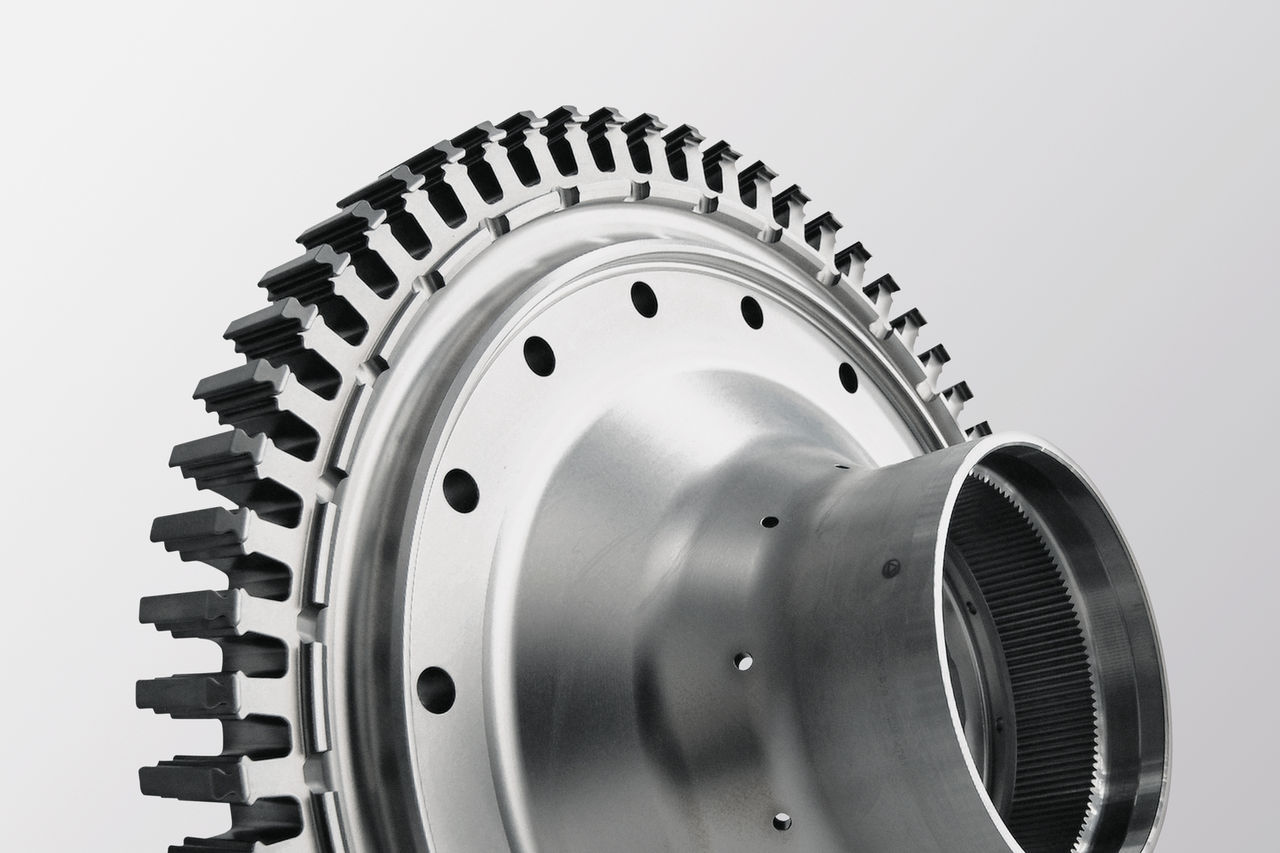

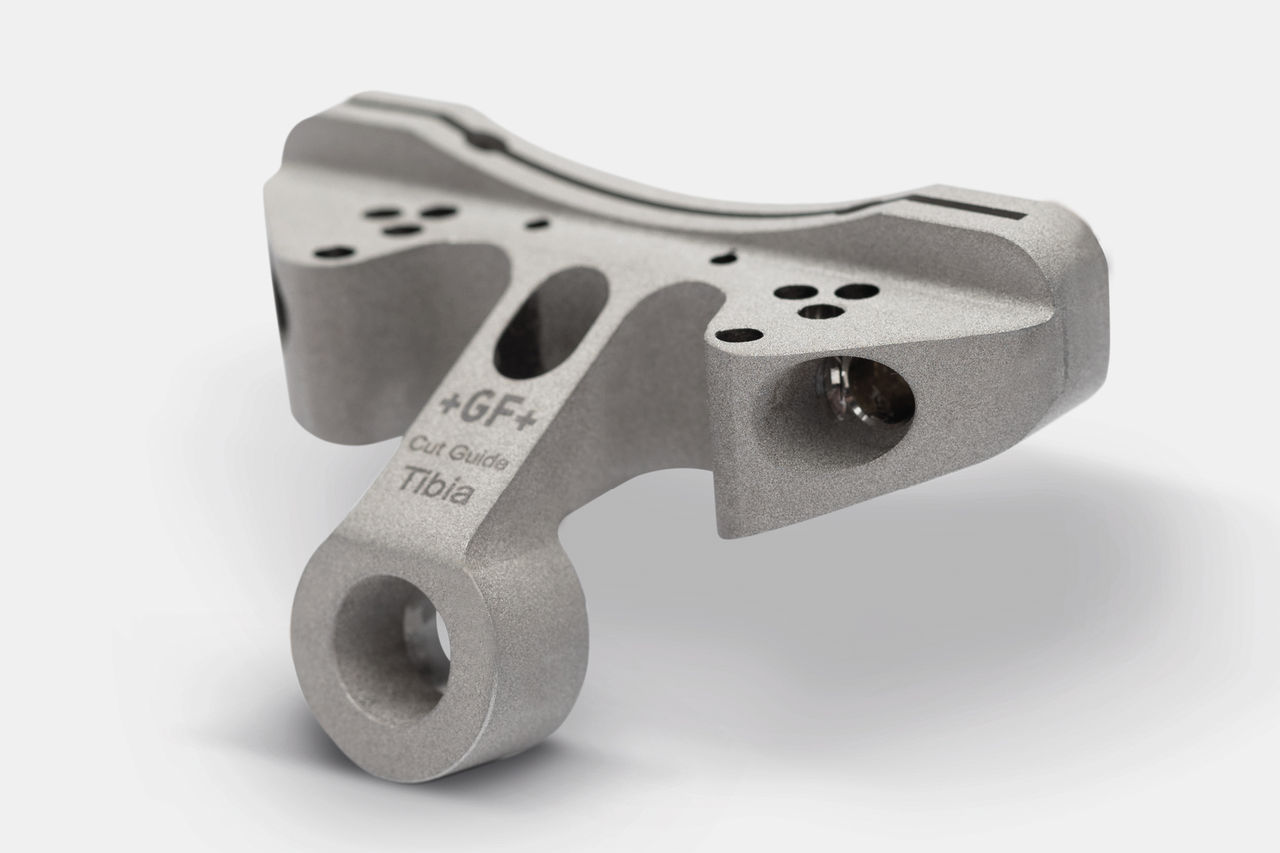

Should you need to machine small parts for the medical industry to extra large parts for aerospace applications, find exactly the machine that fits your workpiece requirements:

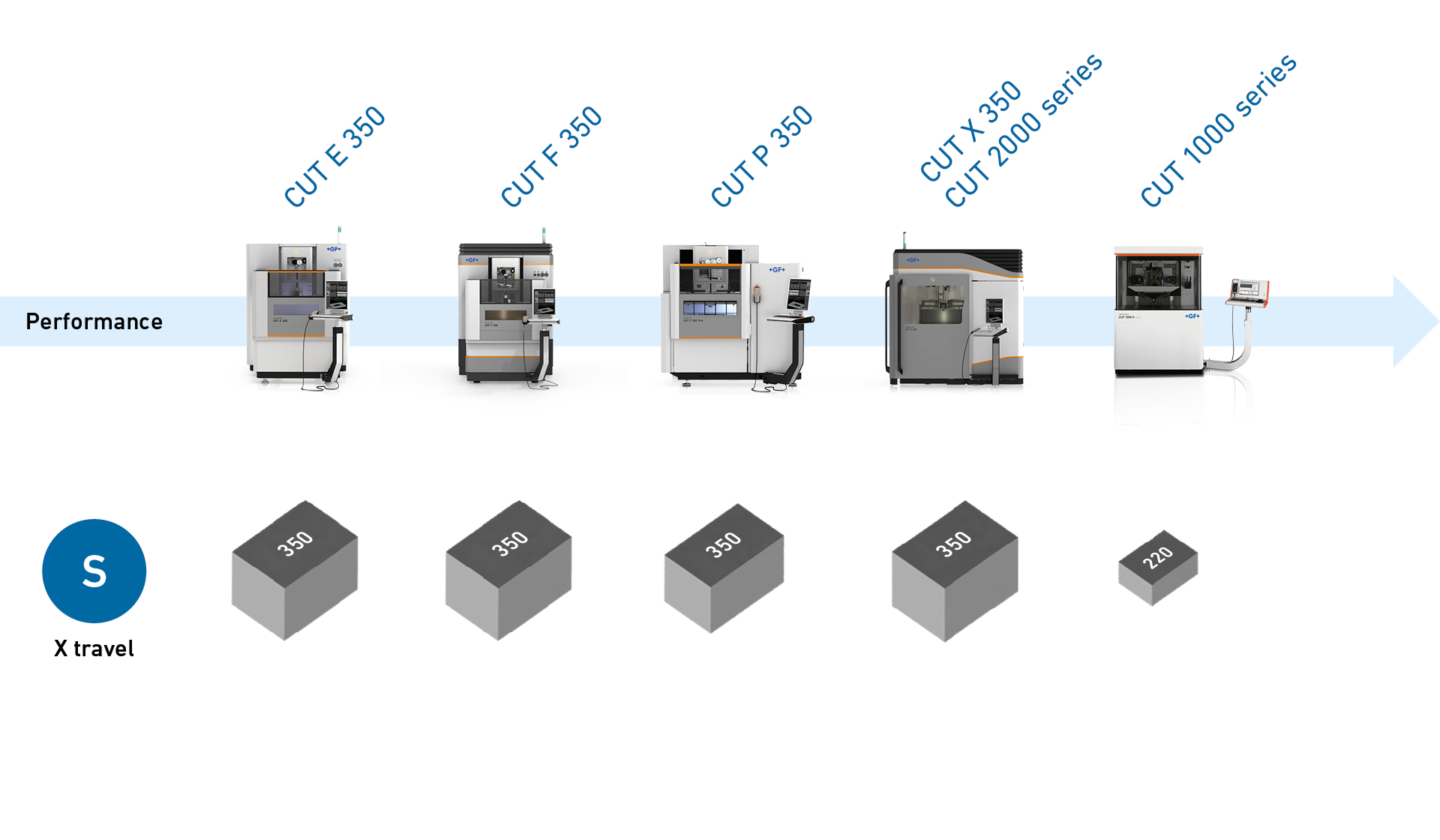

Small

Travel XYZ/UV (mm)

Travel XYZ/UV (mm)

CUT 1000 / CUT 1000 OilTech 220 x 160 x 100 / ± 40
CUT X 350 350 x 250 x 256 / ± 70
CUT 2000 S/X
CUT 2000 S/X OilTech
350 x 250 x 256 / ± 70
CUT P 350 Pro 350 x 220 x 220 / 350 x 220
CUT F 350 350 x 250 x 250 / ± 45
CUT E 350 350 x 250 x 250 / ± 45

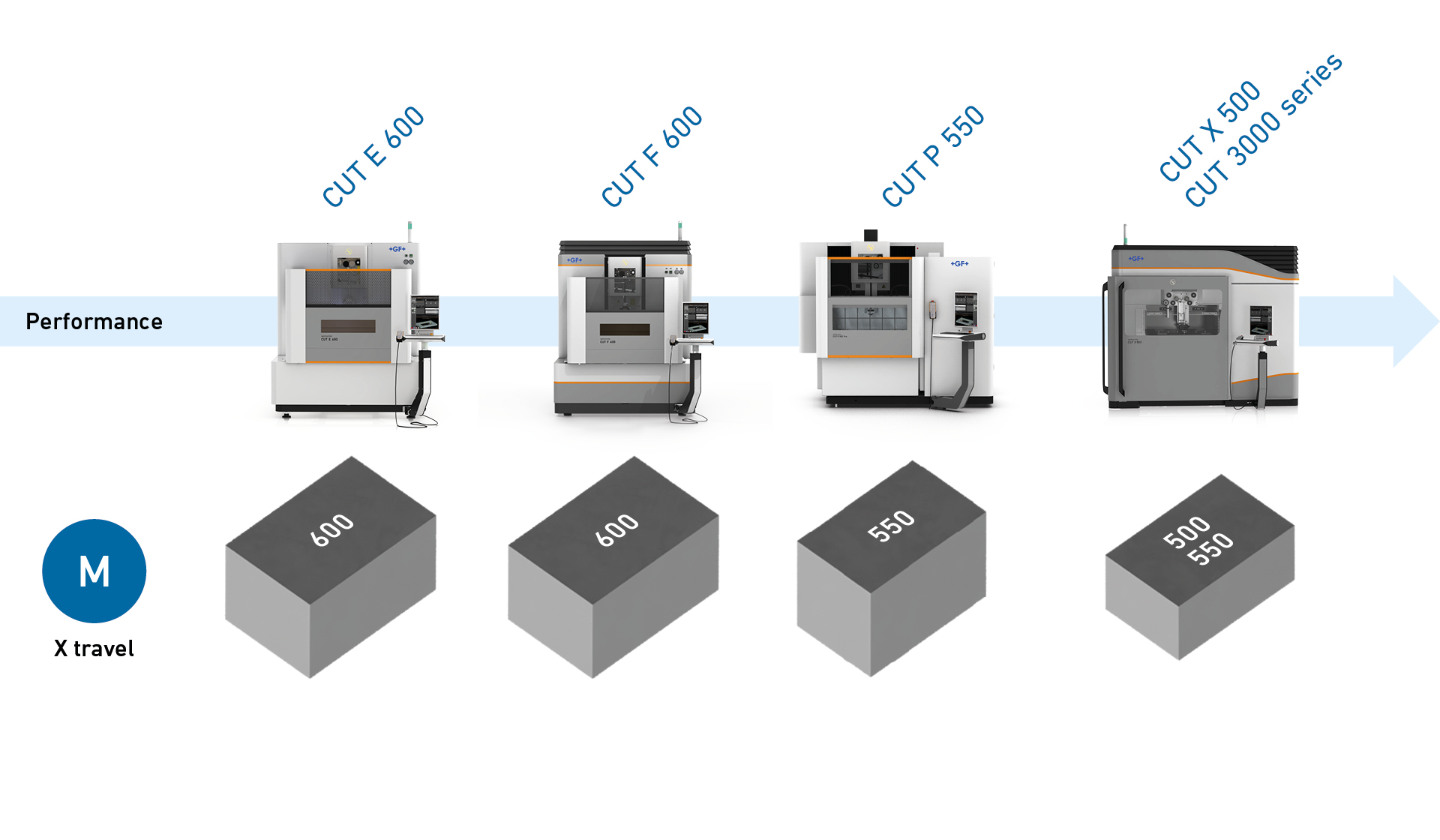

Medium

Travel XYZ/UV (mm)

Travel XYZ/UV (mm)

CUT X 500
500 x 350 x 256 / ± 70
CUT 3000 S/X
550 x 350 x 256 / ± 70
CUT P 550 Pro 550 x 350 x 400 / 550 x 350
CUT F 600 600 x 400 x 350 / ± 50
CUT E 600 600 x 400 x 350 / ± 50

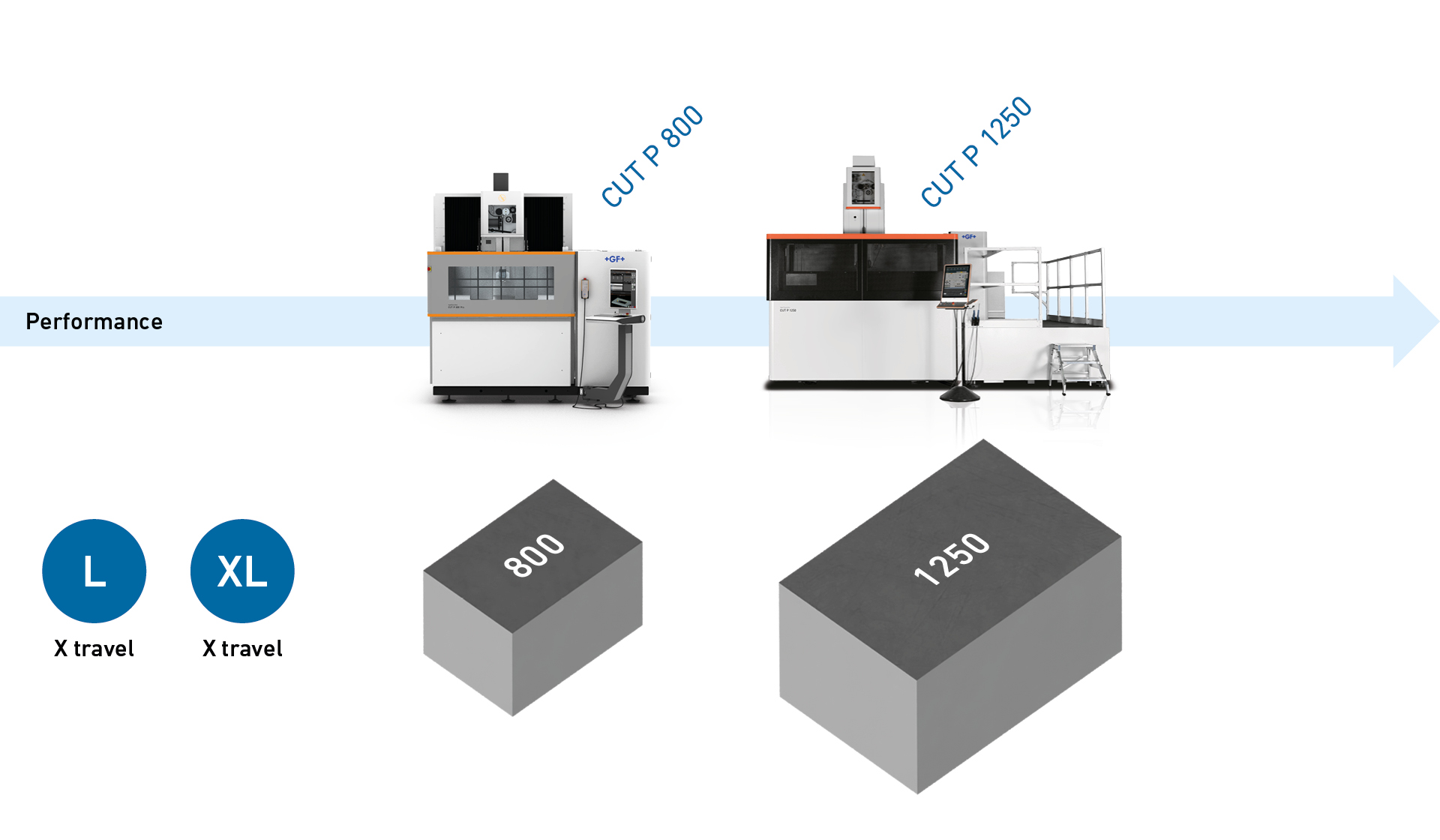

Large / Extra large

Travel XYZ/UV (mm)

Travel XYZ/UV (mm)

CUT P 800 Pro 800 x 550 x 510 / 800 x 550
CUT P 1250 1250 x 850 x 700 / 1250 x 850

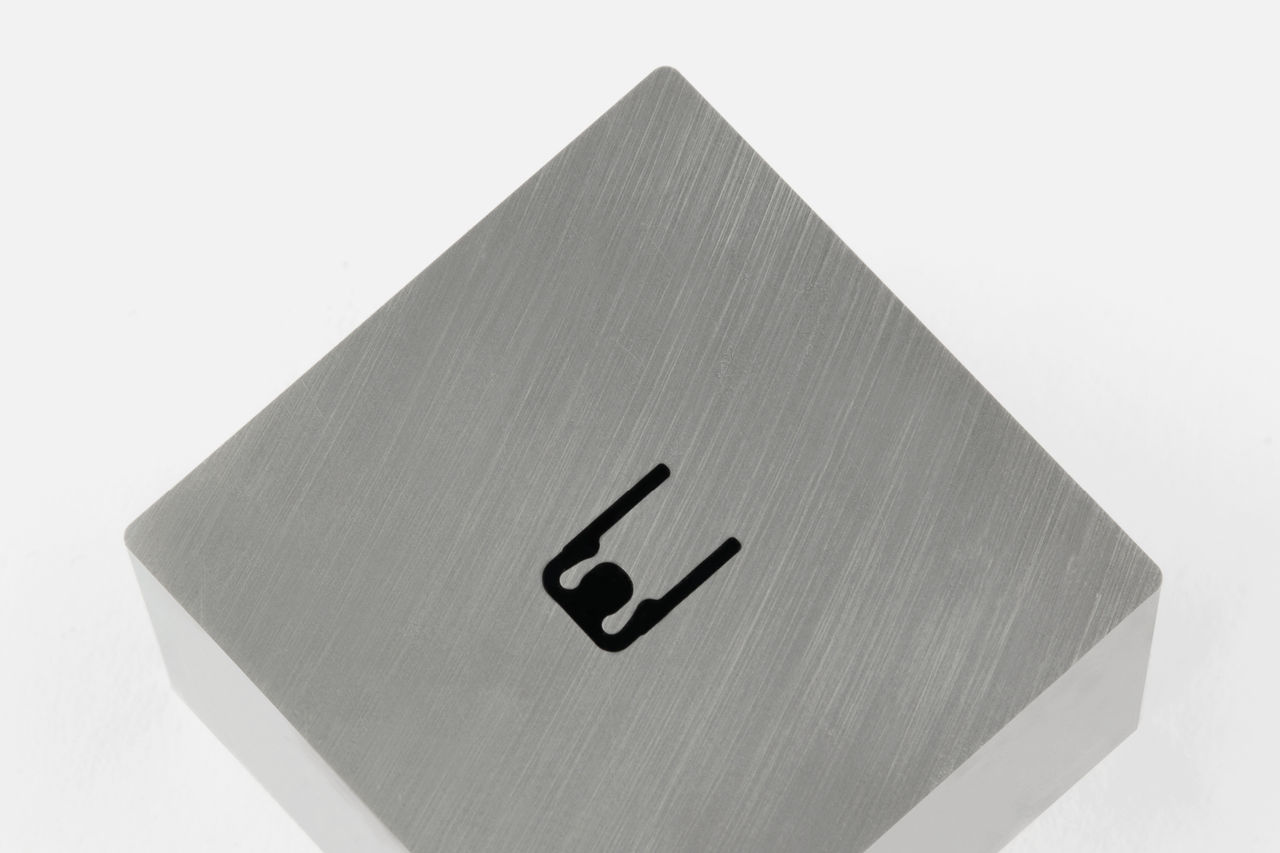

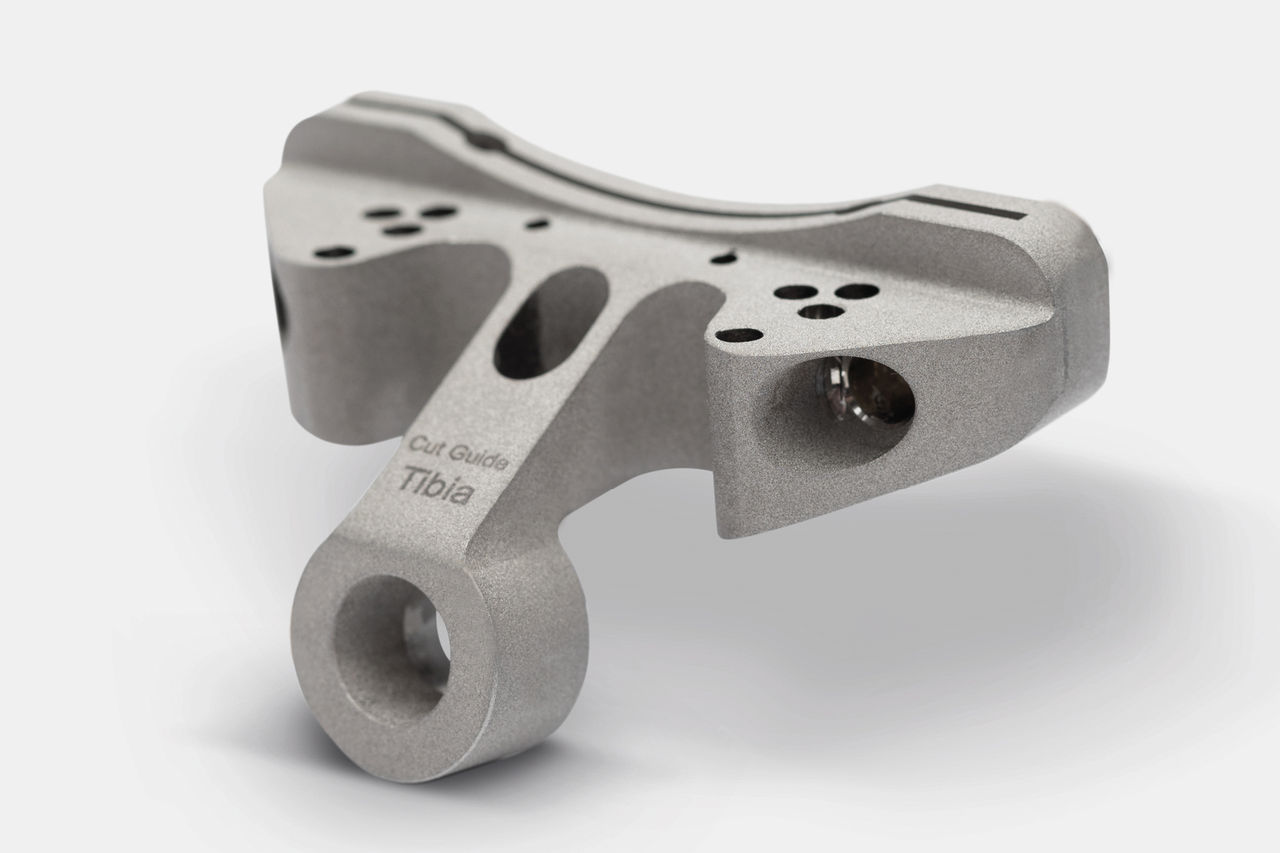

Application possibilities



Please accept all cookies to view the external content.


Please accept all cookies to view the external content.

Energy efficiency

With a reduction of 30% of the daily energy consumption compared to the previous generation, our new generation of Wire-Cutting machines is ready for the future. This important improvement is possible thanks to the smart module Econowatt during standby mode and to the latest generation of GF Machining Solutions’ Intelligent Power Generators (IPG) and to new injection pumps during operation.

Please accept all cookies to view the external content.


Please accept all cookies to view the external content.
