Mikron MILL E 1000/1400/1900 U

Efficient productive solution for big parts and molds
Produce efficiently accurate and precise parts with high surface quality to meet the expectations of your customers in the part production and mold and die in general mechanical, aerospace and automotive industries. Count on enduring precision – even over long machining times- thanks to a sturdy portal cast base and hand-scraped key components. Achieve unbeatable productivity and accuracy on this range thanks to this solution's integrated automation and machining dynamics over long milling process.

Five-axis simultaneous mill-turn

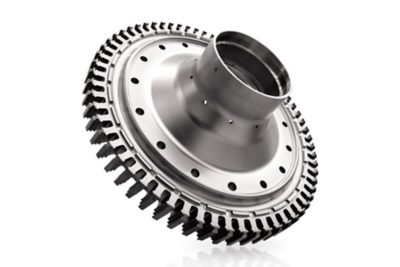

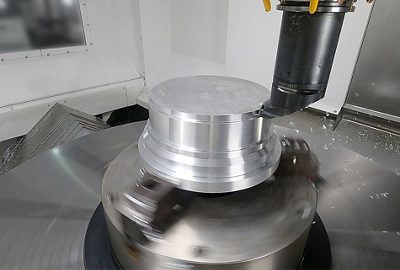

Break into new markets with process-secure production of highly demanding parts even milling or tuniring simultaneous application. Tackle both complex and simple applications due to ideal machinine geometry, electronic optimization, dynamic direct drives for round axes, best measuring components and powerful control.

Profit every day from a best ergonomy

Save valuable time devoted to supervising your machining process with this solution's ergonomic design. Whether you are changing tool insert, checking the workpiece surface or measuring workpiece dimensions, this solution's ideal access makes it fast and easy to use in a daily bases.

Increase your workshop's productivity

Expand your productivity, not your shop floor, whit our solutions offering the biggest work area on the smallest footprint. Ramp up your productivity per square meter due to integrated peripherals.

MILL E 1000 U - MILL E 1400 U (ST) - MILL E 1900 U (ST)

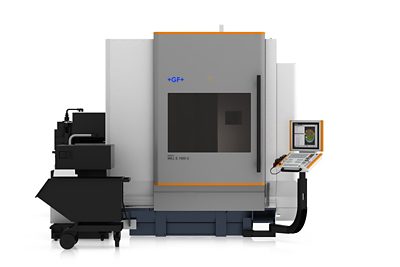

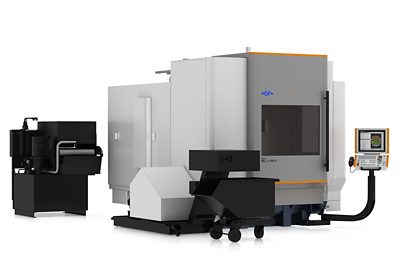

Milling machine - 5 axis - Mikron MILL E 1000 U Mikron MILL E 1000 U
Milling machine - 5 axis - Mikron MILL E 1000 U Mikron MILL E 1000 U

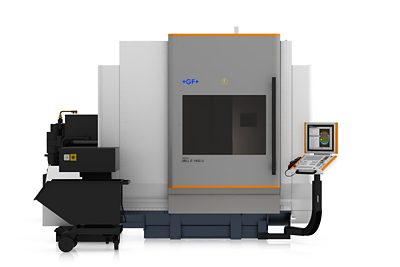

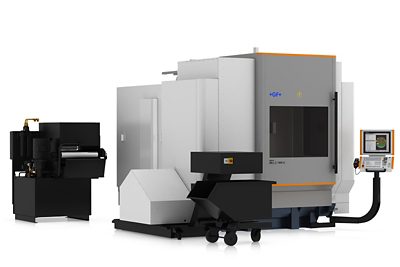

Milling machine - 5 axis - Mikron MILL E 1400 U Mikron MILL E 1400 U
Milling machine - 5 axis - Mikron MILL E 1400 U Mikron MILL E 1400 U

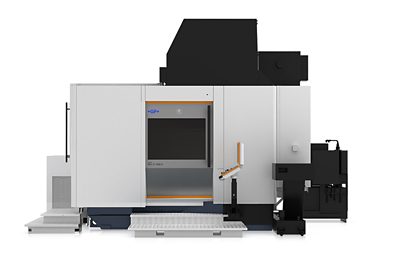

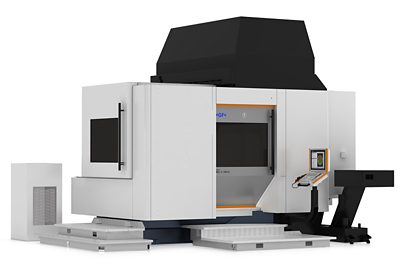

Milling machine - 5 axis - Mikron MILL E 1900 U Mikron MILL E 1900 U
Milling machine - 5 axis - Mikron MILL E 1900 U Mikron MILL E 1900 U
1/
Count on a fulltime efficient productivity

Produce precise five-axis parts throughout the full lifetime of the machine, thank to our week long scraping of the guide rail's supports. Achieve consistently precise part due to wear-free, water-cooled swivel and rotary axes in combination with Step-Tec Spindle that deliver high performance at any time.

Two in one solution – Mill-turn

Take the benefits of two machines in one being able to do milling or turning. Increase your workshop flexibility and business opportunity by combining different machining process in a single machine without impacting workshop layout.

Increase your workshop's productivity

Expand your productivity, not your shop floor, with our solutions offering the biggest work area on the smallest footprint. Push your workshop output with integrated peripheral like chiller, tool magazine or a pallet changer for three pallets that just consumes 40cm more footprint.

Profit every day from the best ergonomy

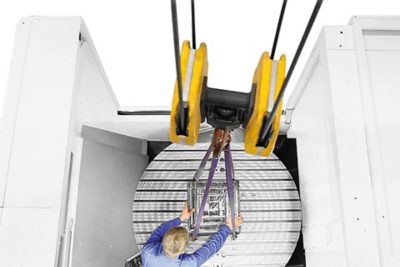

Benefit from a clean, clear design and unrestricted access to all integrated machine peripheral. Load and unload easily tool on the magazine, get the most suitable access to the working area as well as for maintenance.

Flexible and efficient

Tackle tough material with confidence

The machine design and construction of the MILL E U in combination with a powerful Step-Tec spindle allow you to machine tough material providing high stability and precision with a constant cutting path. Get a long, wear-free machine lifetime thanks to the powerful motor Spindle in the swivel head with bearings and clamps on both sides.

Surgical support device

Long lasting precision

Capitalize on the enduring accuracy ensured by this solution's rotary table supported by wear-free, gearless, beltless direct drive motor. Achieve long-lasting precision and surface quality due to our drive measuring system and fine-milled table surface, or the available hand-scraped table or pallet surface.

Two in one solution – Mill turn

Push your workshop and machine productivity thanks to the Mikron MILL E 1900 U ST solutions. Increase application flexibility opening new doors to your business without expanding workshop floor space keeping always the best productivity per square meter.

Excellent machine accessibility

To ensure machine availability, efficient productivity, maintenance and excellent set up on big machine like the Mikron MILL E 1000, 1400 and 1900 U, GF Machining solutions create an easy overall machine accessibility to support customer on his daily work.

Specifications

MILL E 1000 U

Main Specifications

Main Specifications
Travel X, Y, Z 1000 x 1150 x 900 mm
Feed rate X/Y/Z 15 / 32 (S6) m/min
Swivelling range +16/-120° (HSK-63)
+16/-110° (HSK-100)
Rotary range n x 360°
Feed rate swivel 11 rpm
20 (S6) rpm
Feed rate rotary 40 rpm
Working table T-slot table Ø100 mm
Table load 1400 kg
Working spindle 10'000 rpm - HSK-A100
15'000 / 24'000 rpm - HSK-A63
Tool magazine HSK-63: 30 / 46 / 92 / Tower 116 / 212 / 336 pockets
HSK-100: 32 / 64 / Tower 90 / 130 / 175 pockets
Automation On request:
MILL E 1400 U

Main Specifications

Main Specifications
Travel X, Y, Z 1380 x 1150 x 900 mm
Feed rate X/Y/Z 15 / 32 (S6) m/min
Swivelling range +16/-120° (HSK-63)
+16/-110° (HSK-100)
Rotary range n x 360°
Feed rate swivel 11 rpm
20 (S6) rpm
Feed rate rotary 40 rpm
Working table T-slot table parallel Ø1100 mm
Pallet - T-slot parallel Ø1000(x840) mm
Table load for T-slot table Ø1100 - 1600 kg
for pallets Ø1000(x840) 1000 kg / 1500 kg (crane loading)
for pallet magazine 3000 kg(3x pallets)
Working spindle 10'000 rpm - HSK-A100
15'000 / 24'000 rpm - HSK-A63
Tool magazine HSK-A63: 30 / 46 / 92 / Tower 116 / 212 / 336 pockets
HSK-A/T100: 32 / 64 / Tower 90 / 130 / 175 pockets
Automation Pallet magazine 3 pallets Ø1000(x840)
Others on request
MILL E 1400 U ST

Main Specifications

Main Specifications
Travel X, Y, Z 1380 x 1150 x 900 mm
Feed rate X/Y/Z 15 / 32 (S6) m/min
Swivelling range +16° (HSK-T100)
-110° (HSK-T100)
Rotary range n x 360°
Feed rate swivel 11 rpm
20 (S6) rpm
Feed rate rotary 40 rpm ST Simultaneous Turning
350 / 400 (S6) rpm ST Simultaneous Turning
Working table  T-slot table radial Ø1000 mm for ST Simultaneous Turning
Table load 1600 kg milling
1000 kg turning
Working spindle 12'000 rpm - HSK-T100
Tool magazine HSK-T100: 32 / 64 / Tower 90 / 130 / 175 pockets
Automation On request
MILL E 1900 U

Main Specifications

Main Specifications
Travel X, Y, Z 1880 x 1400 x 930 mm
Feed rate X/Y/Z 15 / 41 (S6) m/min
Swivelling range +20/-120° (HSK-A63)
+20/-110° (HSK-A100)
Rotary range n x 360°
Feed rate swivel 11 (S6) rpm
20 (S6) rpm
Feed rate rotary 30 rpm
Working table T-slot table parallel Ø1600 mm
Pallet - T-slot parallel Ø1250(x1000) mm
Table load 4000 kg
Working spindle 10'000 rpm - HSK-A100
15'000 / 24'000 rpm - HSK-A63
Tool magazine HSK-A63: 45 / Tower 116 / 212 / 336 pockets
HSK-A100: 30 / Tower 90 / 130 / 175 pockets
Automation Pallet magazine 3 pallets Ø1250(x1000)
Others on request
MILL E 1900 U ST

Main Specifications

Main Specifications
Travel X, Y, Z 1880 x 1400 x 930 mm
Feed rate X/Y/Z 15 / 41 (S6) m/min
Swivelling range +20 (HSK-T100)
-110° (HSK-T100)
Rotary range n x 360°
Feed rate swivel 11 (S6) rpm
20 (S6) rpm
Feed rate rotary 30 rpm Simultaneous Turning
300 rpm Simultaneous Turning
Working table T-slot table radial Ø1500 mm for Simultaneous Turning
Table load 4000 kg milling / 2400 kg turning
Working spindle 12'000 rpm - HSK-T100
Tool magazine HSK-T100: 30 / Tower 90 / 130 / 175 pockets
Automation On request
