The benchmark of precision machining and agile productivity
Please accept all cookies to view the external content.
Your precision center: 365 days a year
Symmetrical gantry design ensures stable, precise milling with cooled key components, while Automated Machine Calibration (AMC) maintains accuracy through quick, user-friendly cycles.
Best surface finish on light or heavy parts

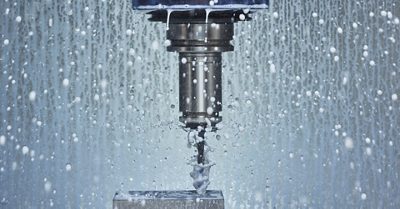

Maintain high-dynamic milling year-round with 1.7 g acceleration, 61 m/min feed rate, and a 36 kW/120 Nm STEP TEC Spindle—built for nonstop precision and superior surface finish.
Highly flexible parts production
This robust, high-performance milling solution is built for 24/7 secure machining. With scalable automation and Machine Spindle Protection (MSP), it ensures reliable, risk-free operation in a compact footprint.

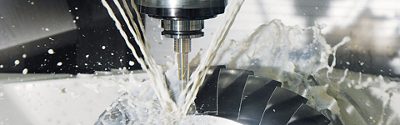

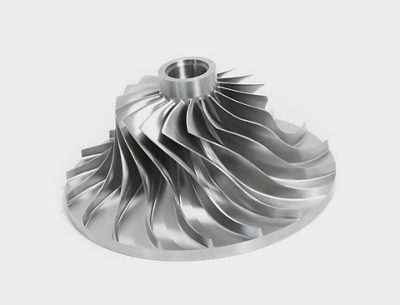

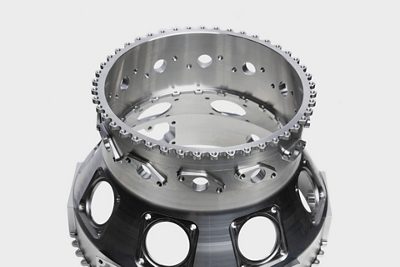

Ideal for aerospace and energy impeller machining, the MIKRON MILL P 800 U is equipped with high-dynamic 5-axis torque motors, delivering precise and stable machining of complex geometries with tight tolerances.

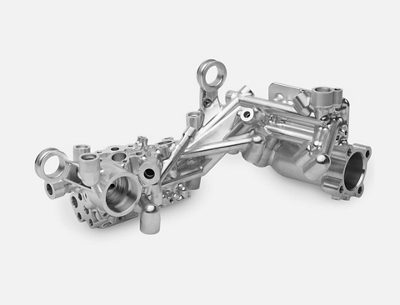

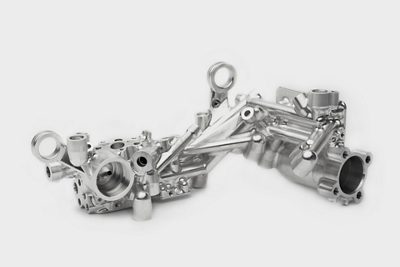

Ideal for complex 5-axis motorsport parts, the MIKRON MILL P 800 U delivers precise machining and tight tolerances on materials from hard alloys to aluminum in a single setup.
Ideal for complex 5-axis defense components, the MIKRON MILL P 800 U delivers high dynamics and stable, stiff construction with simultaneous turning and multi-axis functions in a single setup.

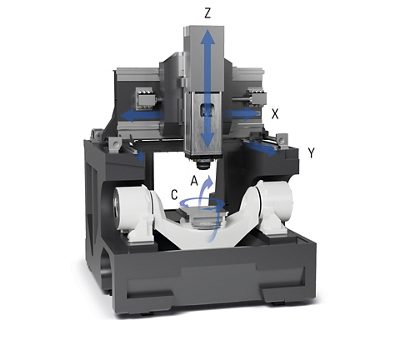

Robust and stiff for unapparelled dynamism
The MIKRON MILL P 800 U features a symmetrical gantry design with cooled key components, delivering exceptional stiffness and unparalleled dynamic performance for demanding 5-axis manufacturing.
• Full twin-drive gantry
• Direct drive motor for tilting and swiveling
• 1.7 g axis acceleration
• 61 m/min axis feedrate
• Up to 1,000 kg payload

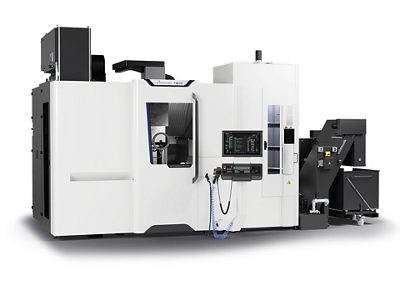

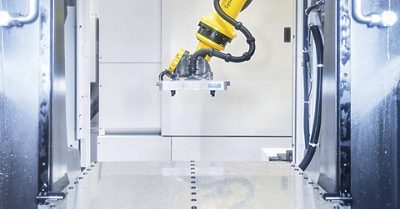

The machine that grows with your needs
The most compact automated layout in its range
The MIKRON MILL P 800 U S offers the best complete automation solution per square meter in its class. Quickly and easily connect a second, or more, machine to increase your workshop’s productivity.

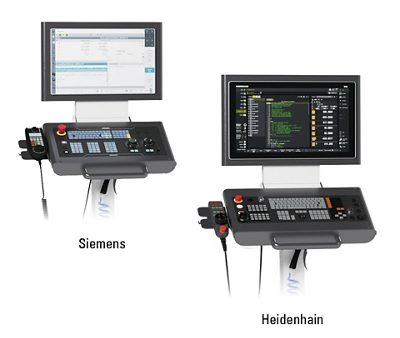

Human Machine interface
Boosted numerical control
The MIKRON MILL P 800 U S can be equipped with either the Heidenhain TNC 7 or the Siemens Sinumerik ONE control system. Both HMIs are enhanced by an internally developed and patented Smart Machine modules, designed to boost productivity and elevate machining performance to the next level.

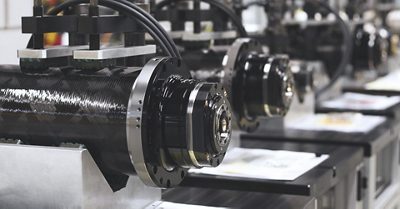

High-quality Swiss made Spindle
Precision engineered for extreme micromachining
STEP TEC high-speed Spindles use premium components and advanced thermal design for stable, precise, vibration-free micromachining at high speeds. Swiss-made in-house for unmatched quality, ideal for automotive, electronics, and medical applications.

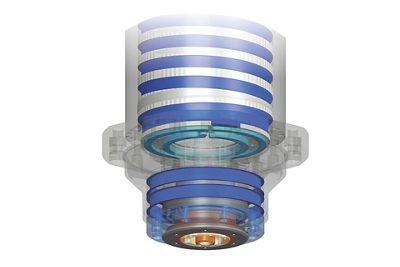

OptiCool
STEP TEC’s OptiCool Spindle series ensures not only that the Spindle remains thermally stable, but that natural heat transfer to the Spindle support (e.g., Z axis) is limited to the lowest amount possible, in order to preserve the machine’s geometry.
Applications
Specifications
MILL P 800 U
Main specifications
Main specifications |
|
| Travel X, Y, Z | 800 x 800 x 550 mm |
| Feed rate X/Y/Z | 45 (61 dynamic version) m/min |
| Swivelling range | +91/-121° |
| Rotary range | n x 360 rpm |
| Feed rate swivel | 25 (50 dynamic version) rpm |
| Feed rate rotary | 35 (60 dynamic version) rpm |
| Working table | T-slot / parallel Ø 630 mm T-slot / parallel Ø 500 mm System 3R Delphin 400 x 400 / 500 x 500 / 500 x 630 mm |
| Table load | 500 / 1,000 kg |
| Working spindle | 20,000 rpm - HSK-A63 |
| Tool magazine | 30 / 60 / Tool Tower 120 / 170 / 215 pockets |
| Automation | Pallet magazine 7x (500 x 630) Pallet magazine 9x (500 x 500) Pallet magazine 12x (400 x 400) System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis |
MILL P 800 U ST
Main specifications
Main specifications |
|
| Travel X, Y, Z | 800 x 800 x 550 mm |
| Feed rate X/Y/Z | 61 m/min |
| Swivelling range | +91/-121° |
| Rotary range | n x 360 rpm |
| Feed rate swivel | 50 rpm |
| Feed rate rotary | Milling 100 rpm Simultaneous Turning 800 rpm |
| Working table | T-slot table radial Ø 730 / Ø 500 mm System 3R Delphin 400 x 400 / 500 x 500 / 500 x 630 mm |
| Table load | 800 kg |
| Working spindle | 20,000 rpm - HSK-T63 |
| Tool magazine | 30 / 60 / Tool Tower 120 / 170 / 215 pockets |
| Automation | Pallet magazine 7x (Ø 730) Pallet magazine 9x (Ø 500) Others on request |
MILL P 800 U S
Main specifications
Main specifications |
|
| Travel X, Y, Z | 800 x 800 x 500 mm |
| Feed rate X/Y/Z | 61 m/min |
| Swivelling range | +91/-121° |
| Rotary range | n x 360 rpm |
| Feed rate swivel | 25 rpm |
| Feed rate rotary | 35 rpm |
| Working table | System 3R Delphin 500 x 500 mm |
| Table load | max. 1,000 kg |
| Working spindle | 20,000 rpm - HSK-A |
| Tool magazine | Tool Tower 170 pockets |
| Automation | System 3R Transformer 6-axis Others on request |
