AgieCharmilles CUT F Series

Optimized for flexibility
Whether tool cutting or part production; be it precision or performance; the CUT F Series is a versatile tool that takes advantage of its high positioning accuracy and performant generator with Spark Track options. Optimized mechanical design and high quality components offer reliable precision and performance to tackle any job at hand.

Optimized design for improved accuracy

Offering improved positional accuracy through mechanical design optimization, the CUT F contains higher quality grade components. Thermal stabilization of key components and high-resolution calibration contribute to maintaining a high level of accuracy.

Obtain more flexibility

Its UNIQUA interface and Spark Track feature package provide an unmatched flexibility, while reducing machining costs and increasing machine autonomy. Benefit from the extended technology database with more than 600 possibilities.

Smart consumables

SMART wire spools are equipped with radio frequency identification (RFID) chips to store wire characteristics and traceability-related data. This feature equips the CUT F and makes it truly a smart solution! Improve your production process, achieve full traceability and share technical issues in an efficient manner.

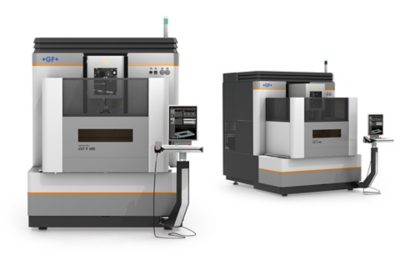

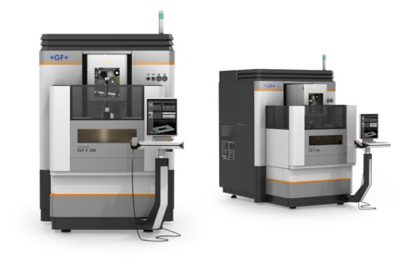

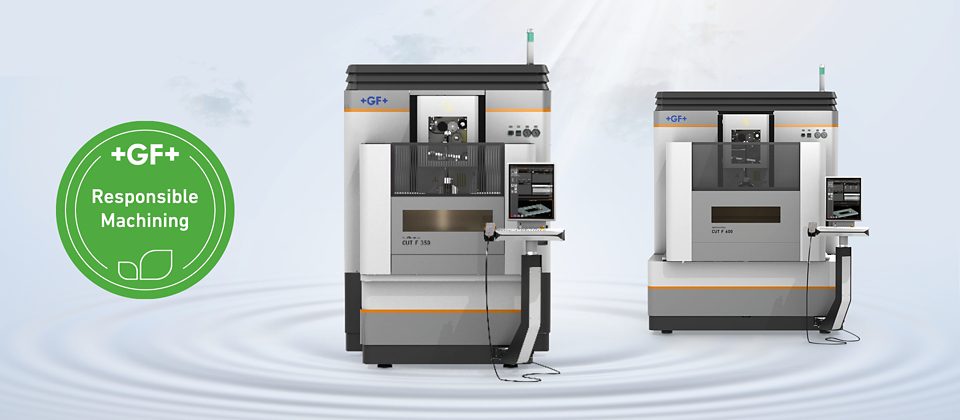

CUT F 350 - CUT F 600

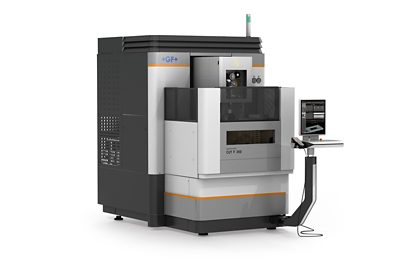

AgieCharmilles CUT F 350
AgieCharmilles CUT F 350
AgieCharmilles CUT F 600
1/
Stable accuracy

Thanks to the higher accuracy of the ball screw and the embedded thermostabilization, you can achieve an accuracy stability with every machining job.

Flexible process

Become instantly familiar with the CUT F, no matter what your background is. The UNIQUA HMI allows sequential programming as well as object-oriented programming, giving you more flexibility.

Spark Track

With the Spark Track feature, adjust the spark energy in real time to prevent wire breakage and maintain optimal cutting speed. Ultimately, improve your process efficiency.

More with less

Every feature in the CUT F is made to save costs: ISPG (Intelligent Speed Power Generator), iWire which reduces wire consumption as well as ISPS (Intelligent Spark Protection System).

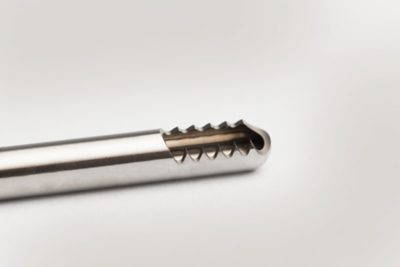

Shaver cutter

High quality for medical applications

Achieve high surface quality with an Ra of 0.3 on medical instruments, thanks to the dedicated process programming of the CUT F. The distinctive shaving teeth of this stainless steel medical instrument were created with an AC CUT AH 0.25 wire. Special care was taken to ensure a radius of 0.4 mm regularly along the part.

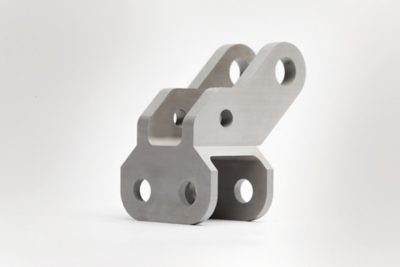

Structural aerospace part

Secure challenging industrial requirements

Machining parts for the aerospace industry is demanding due to the high requirement standards. A main advantage is brought by the ISPS feature: no broken wire was encountered during the process, compared to several broken wires in a conventional Wire-cutting process. Benefit from increased productivity with a reduced machining time, virtually no human interventions and minimized quantities of consumables.

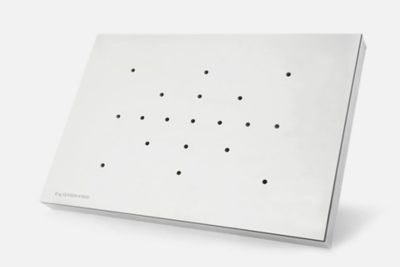

19 holes plate

Increased pitch accuracy

Obtain the best pitch accuracy on the whole working area of a machined part. Optimized mechanical design and high quality components, along with thermostabilised key precision components allow to keep the average deviation under an impressive 2.5 µm.

Specifications

CUT F 350

Main specifications

Main specifications
Travel X, Y, Z 350 x 250 x 250 mm
13.78 x 9.84 x 9.84 in
Min. surface roughness RA
 Carbide: 0.14 μm / Steel: 0.18 μm
Carbide: 5.50 μin / Steel: 7.09 μin
Dimensions of complete equipment *
 1850 x 3050 x 2450 mm
72.83 x 120.07 x 96.45 in
Max. taper angle / height ± 30/50° mm
± 30/1.97° in
Max. workpiece dimensions 820 x 680 x 250 mm
32.28 x 26.77 x 9.84 in
Max. workpiece weight 400 kg
882 lbs

Workpiece

Workpiece
Travel U, V ± 45 mm
± 1.77 in
Wire diameters 0.10-0.30 mm
0.004-0.012 in
Max. wire spool weight 8 (JIS P5), 25 (DIN 160) kg

* Width x depth x height

CUT F 600

Main specifications

Main specifications
Travel X, Y, Z 600 x 400 x 350 mm
23.62 x 15.75 x 13.78 in
Min. surface roughness RA Carbide: 0.14 μm / Steel: 0.18 μm
Carbide: 5.50 μin / Steel: 7.09 μin
Dimensions of complete equipment * 2160 x 3400 x 2600 mm
85.04 x 133.86 x 102.36 in
Max. taper angle / height ± 30/50° mm
± 30/1.97° in
Max. workpiece dimensions 1030 x 800 x 350 mm
40.55 x 31.5 x 13.78 in
Max. workpiece weight 1000 kg
2205 lbs

Workpiece

Workpiece
Travel U, V ± 50 mm
± 1.97 in
Wire diameters 0.10-0.30 mm
0.004-0.012 in
Max. wire spool weight 8 (JIS P5), 25 (DIN 160) kg
