AgieCharmilles CUT 1000 Series

Designed for outstanding accuracy
GF Machining Solutions’ CUT 1000 series, specifically designed to meet micro dimensions demands, offers unique features in terms of precision and productivity, and perfect predictability and repeatability of machining results.

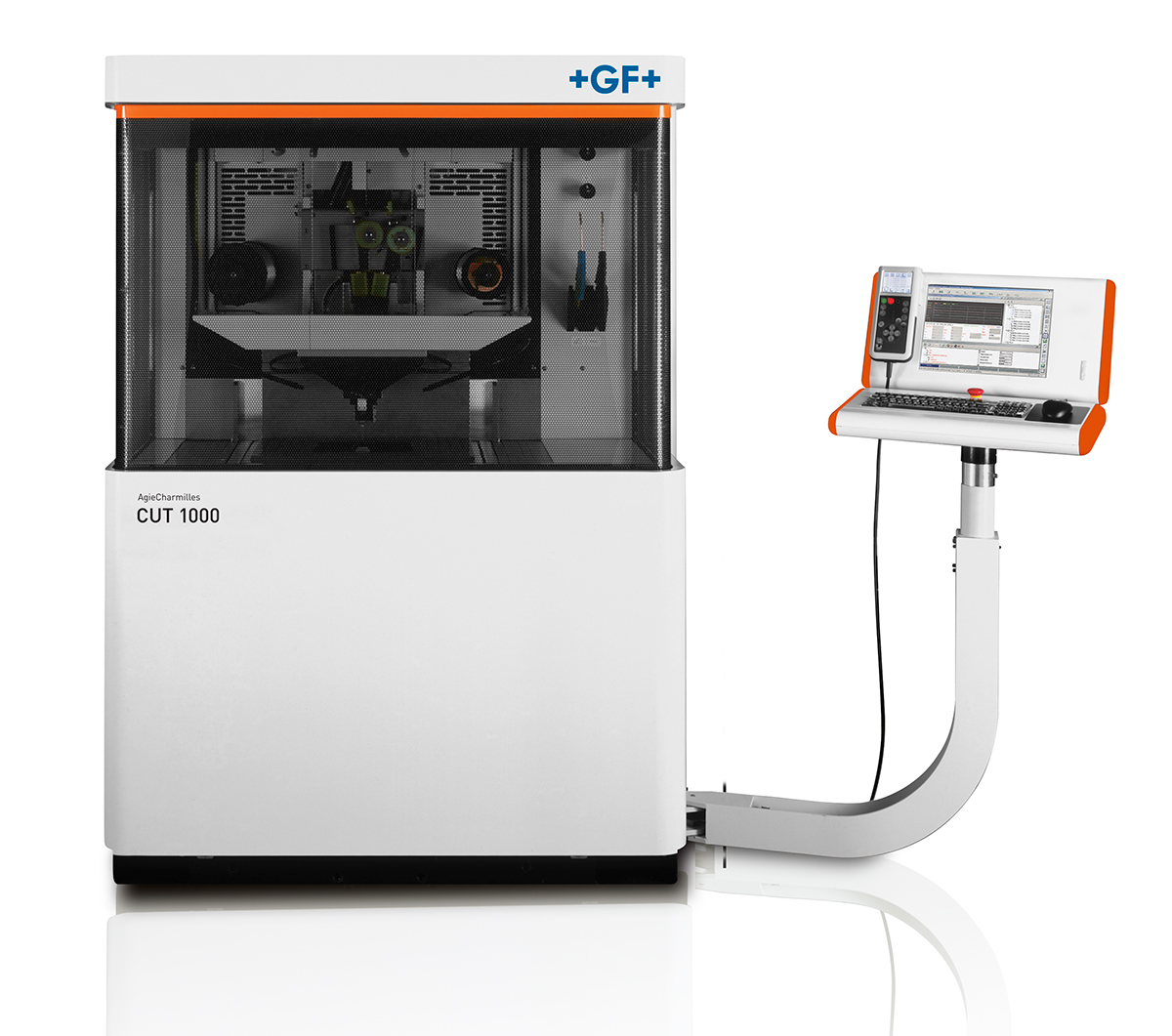

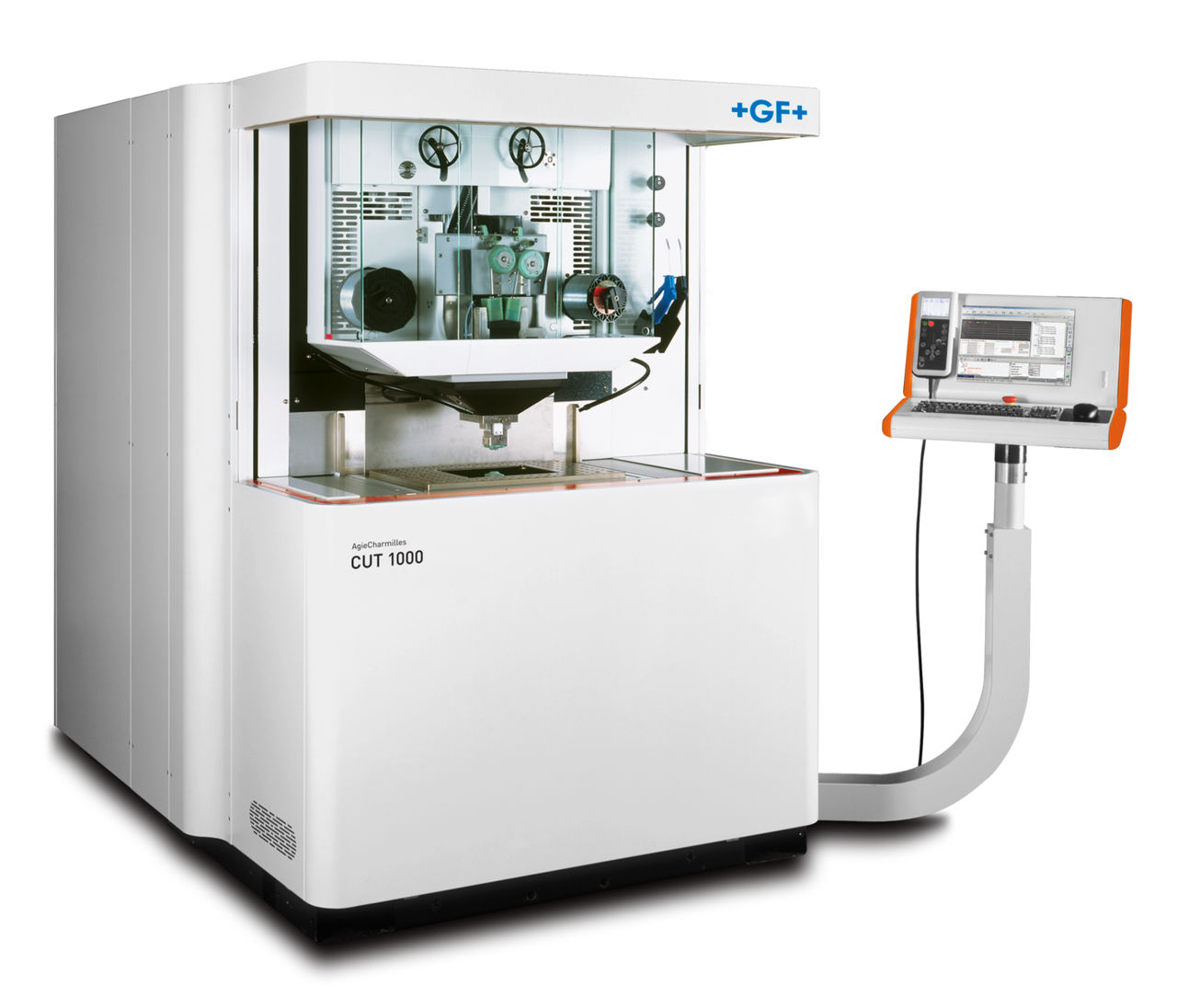

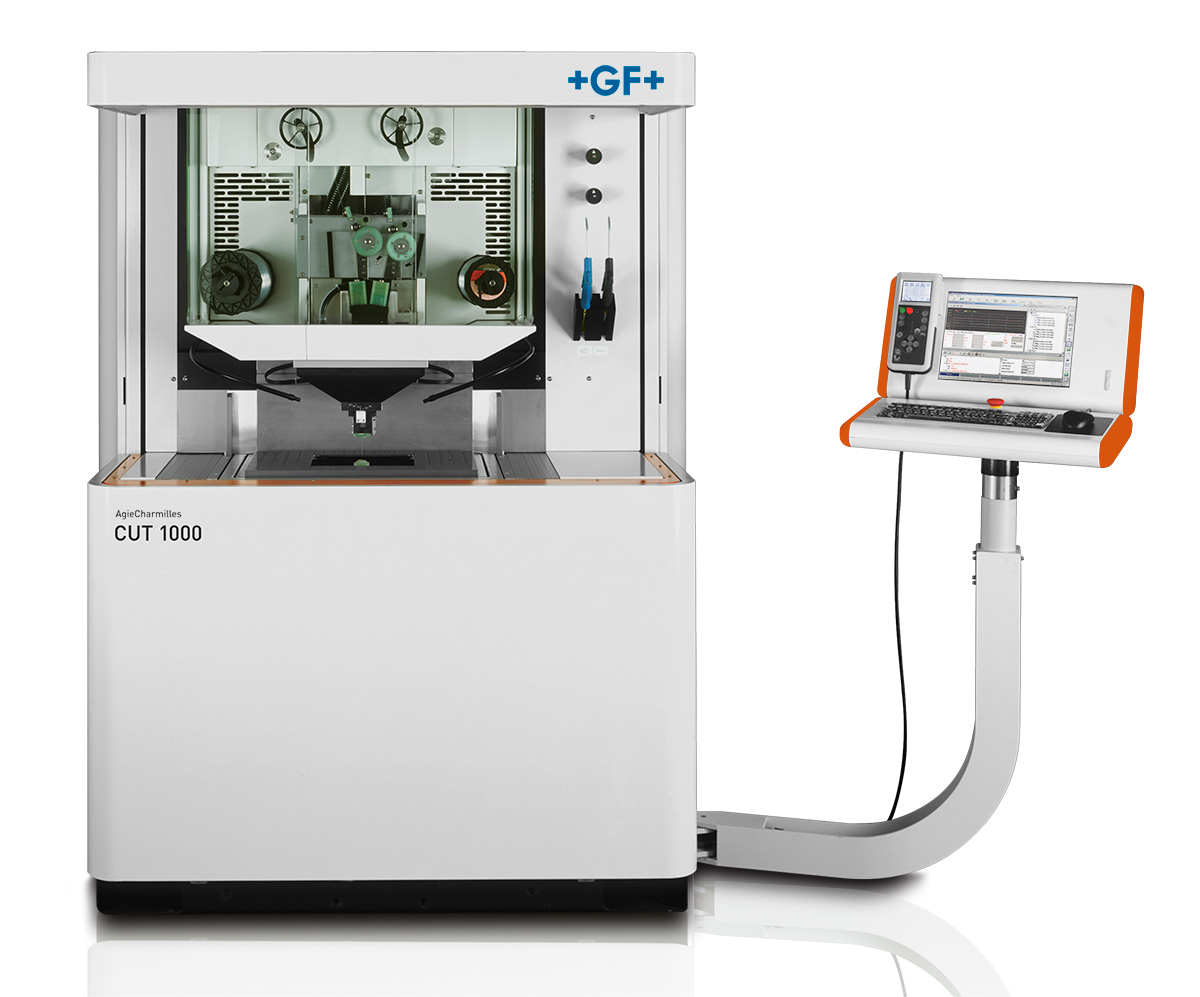

CUT 1000 / CUT 1000 OilTech

Please accept all cookies to view the external content.

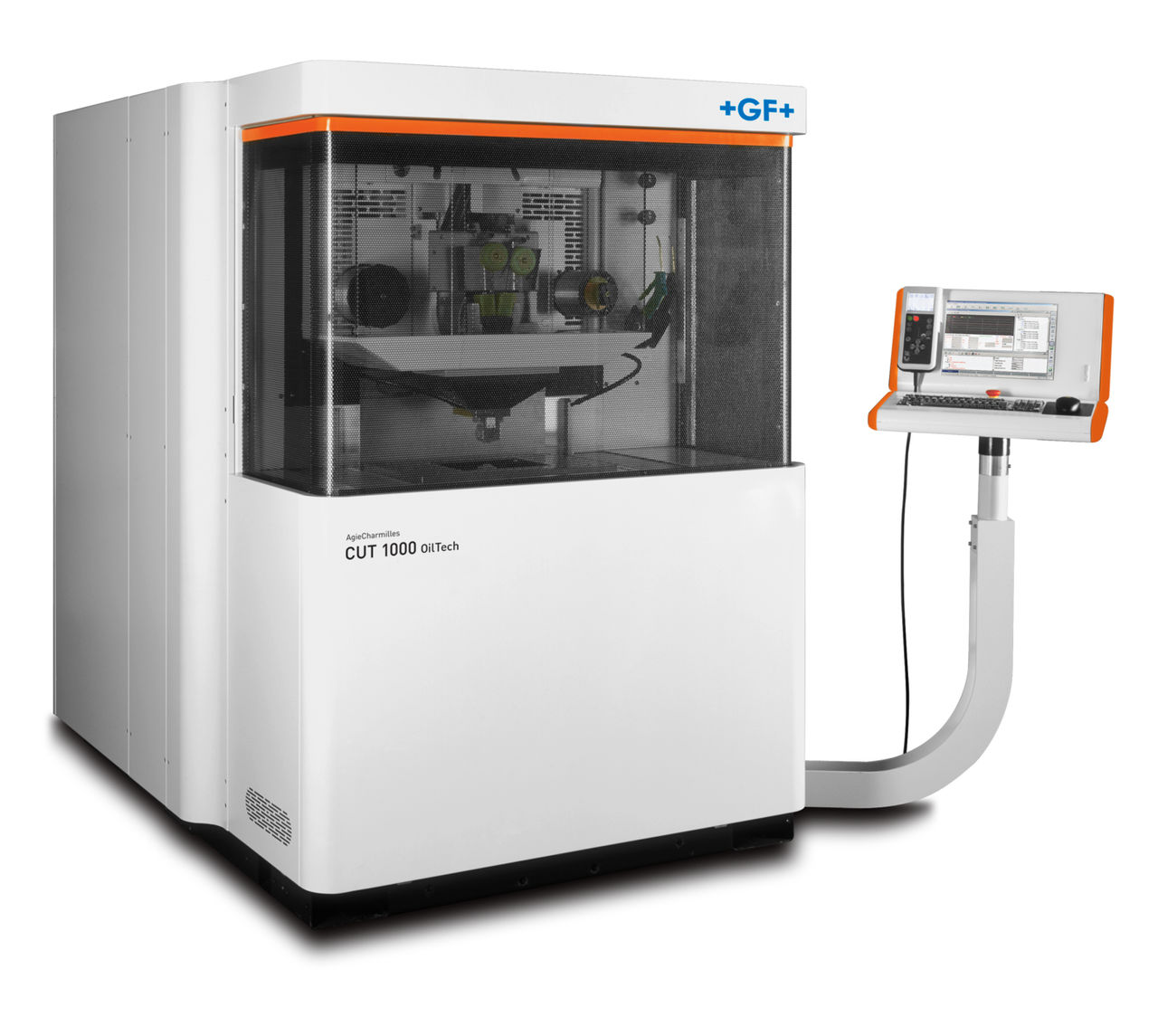

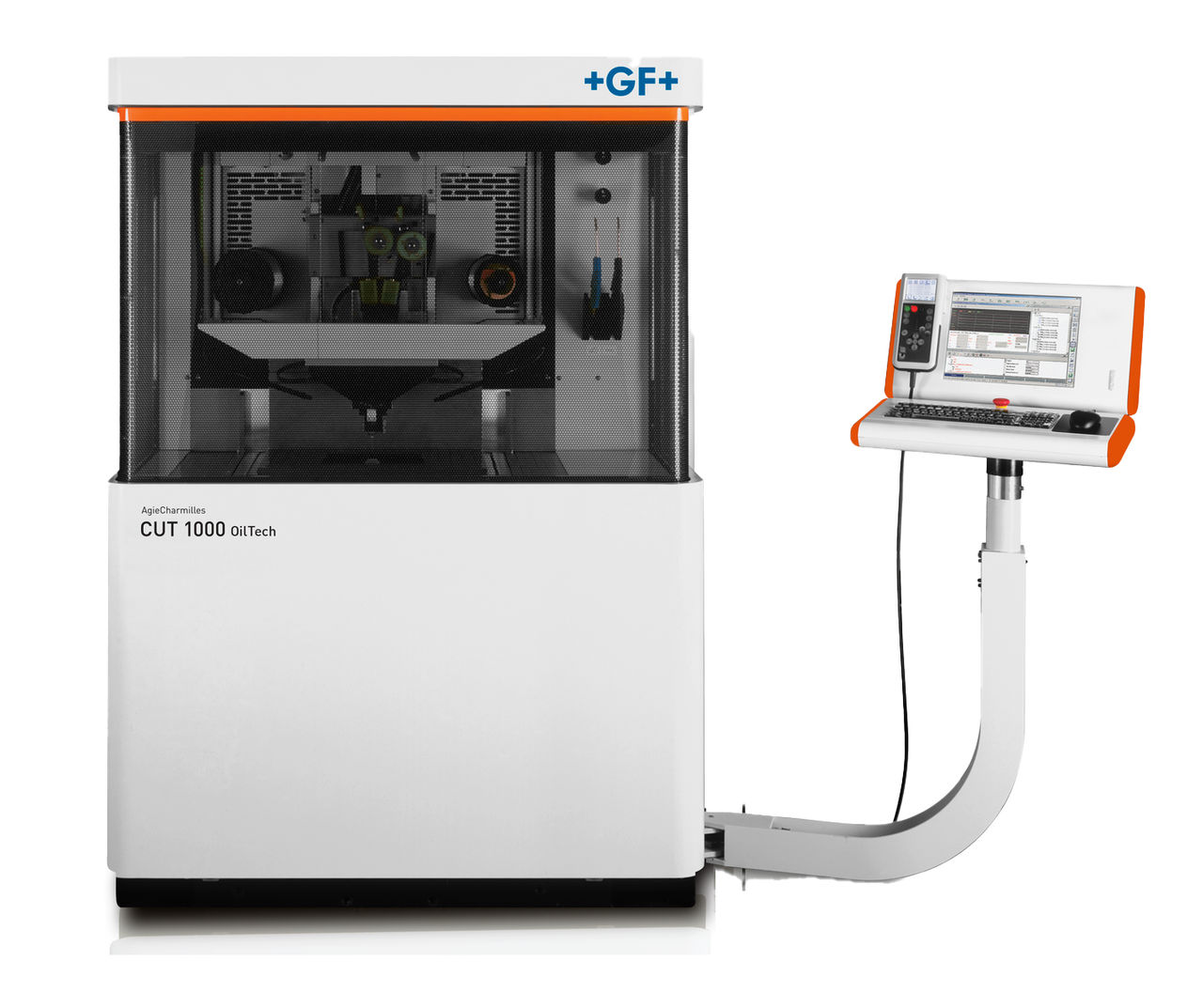

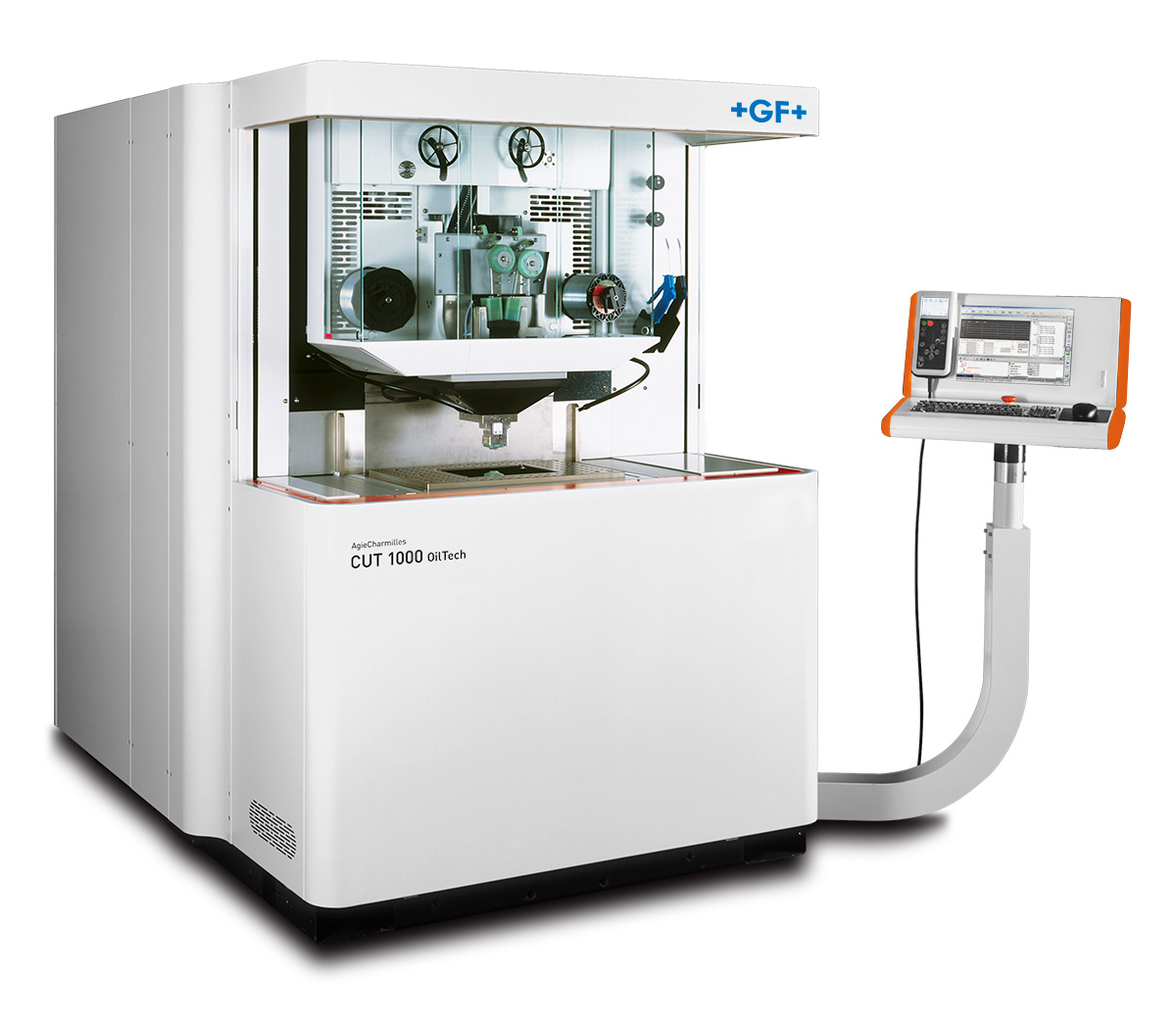

CUT 1000 OilTech

Please accept all cookies to view the external content.

Specifications

CUT 1000

Main Specifications

Main Specifications

Travel X, Y, Z

220 x 160 x 100 mm

8.66 x 6.3 x 3.93

Min. surface roughness RA 0.05 μm
Max. taper angle / height

± 3°/80 mm

± 3°/3.14 in

Max. workpiece dimensions *

300 x 200 x 80 mm

11.81 x 7.87 x 3.14 in

Max. workpiece weight

35 kg

77 lbs

Workpiece

Workpiece

Travel U, V

± 40 mm

± 1.57 in

Wire diameters

0.07 - 0.20 (0.02-0.05 optional) mm

0.003 - 0.008 (0.0008 - 0.002 optional) in

Max. wire spool weight 2x8 kg

* Width x depth x height

CUT 1000 Oiltech

Main Specifications

Main Specifications

Travel X, Y, Z

220 x 160 x 100 mm

8.66 x 6.3 x 3.93

Min. surface roughness RA 0.05 μm
Max. taper angle / height

± 3°/80 mm

± 3°/3.14 in

Max. workpiece dimensions *

300 x 200 x 80 mm

11.81 x 7.87 x 3.14 in

Max. workpiece weight

35 kg

77 lbs

Workpiece

Workpiece

Travel U, V

± 40 mm

± 1.57 in

Wire diameters

0.07 - 0.20 (0.02-0.05 optional) mm

0.003 - 0.008 (0.0008 - 0.002 optional) in

Max. wire spool weight 2x8 kg

* Width x depth x height
