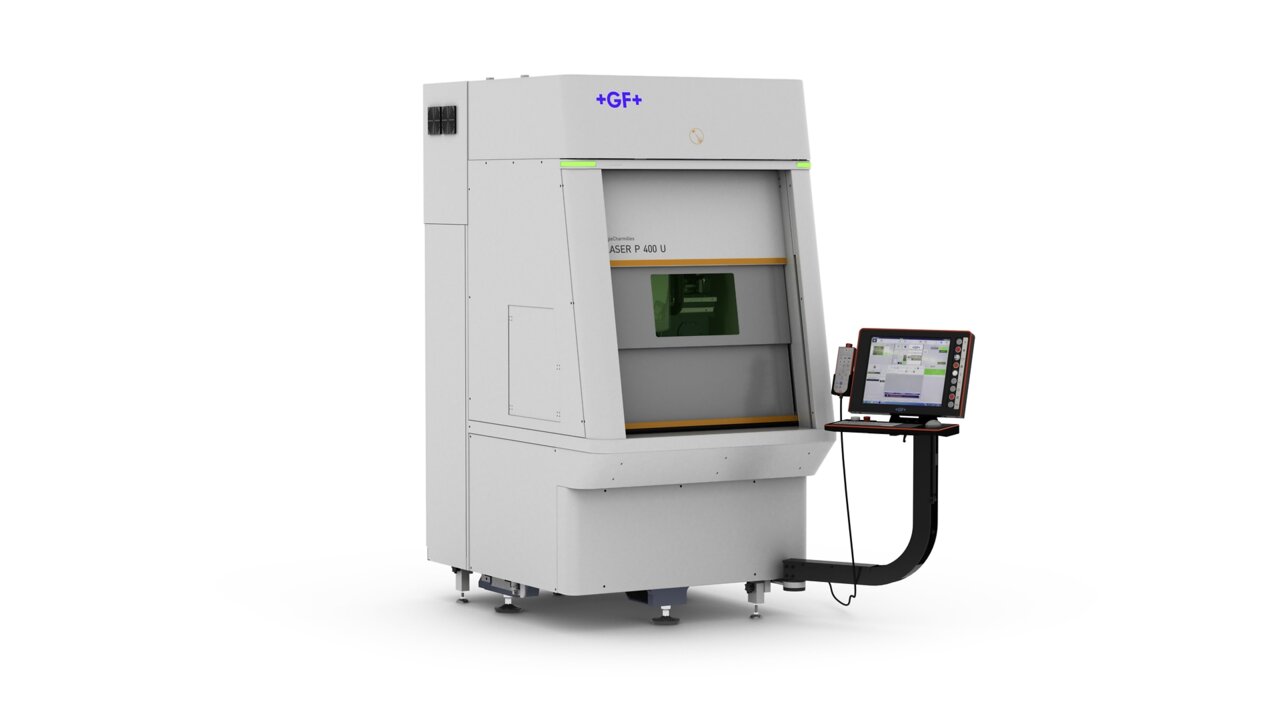

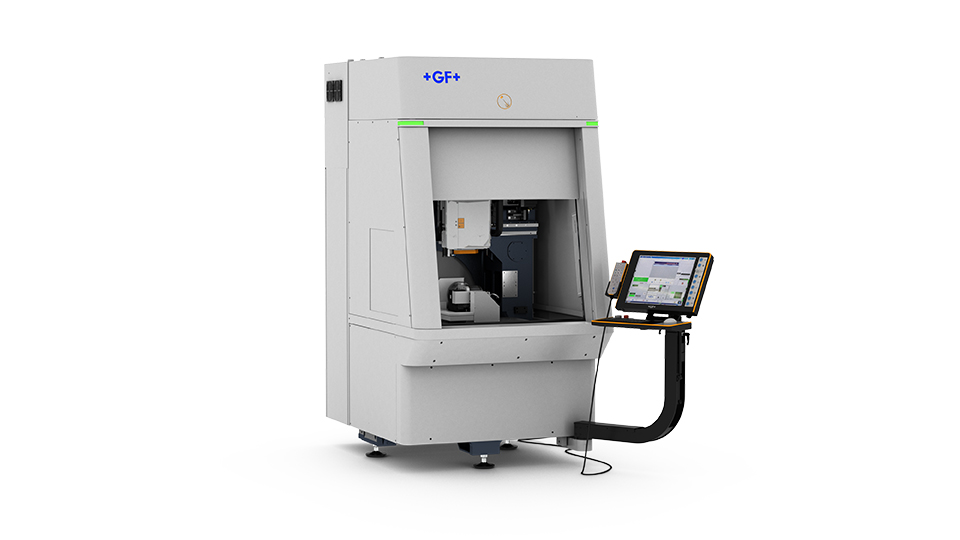

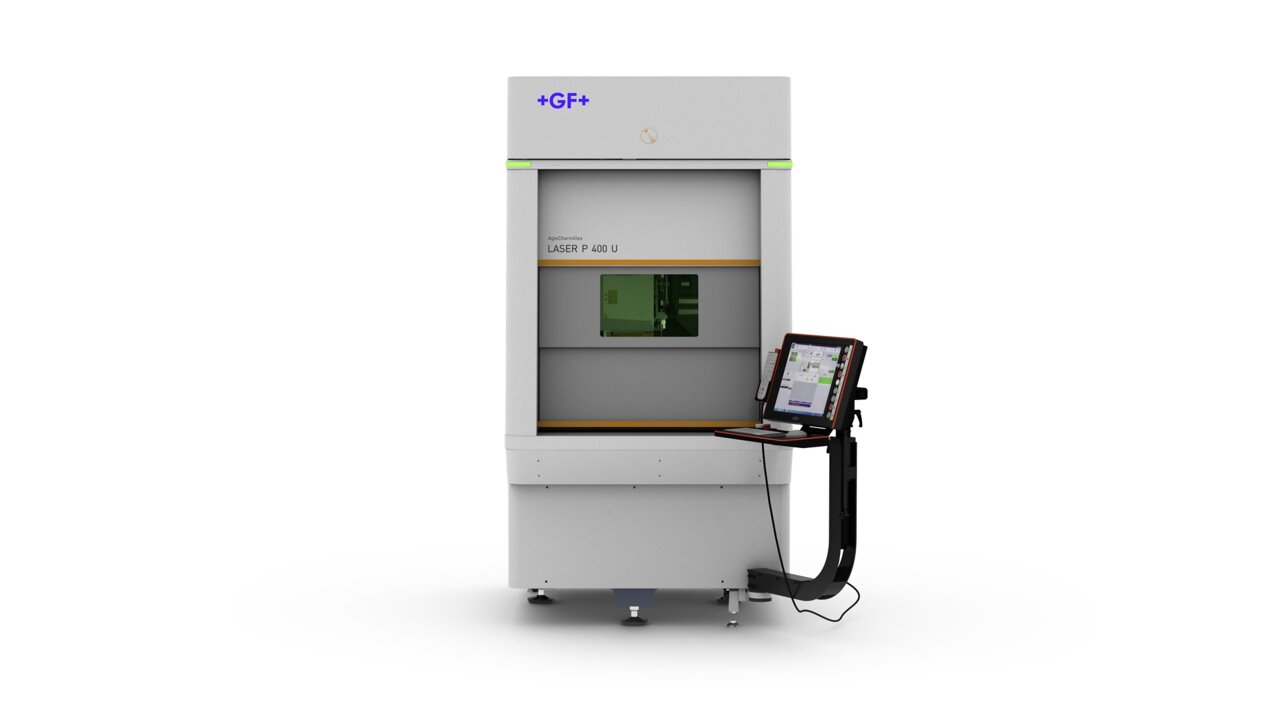

AgieCharmilles LASER P 400

Increased quality in parts production

Deliver highly accurate results your valued customers expect. This one-of a-kind Laser engraving, texturing and marking solution combines outstanding quality, efficiency, and femtosecond Laser technology in the smallest possible footprint. It is specifically designed for aesthetic and functional texturing of precision parts for watches and jewelry, small inserts, cutting tools and micro machined work pieces.

Perfect engraving to boost your quality

Shorten your lead time, and increase your quality thanks to the burr-free engraving requiring no post-treatment, thanks to the advantages of femtosecond Laser.

A scalable solution

Start with a standard nanosecond laser and integrate a femtosecond Laser source later. Your machine is ready to answer your existing and future challenges.

Simplify your processes

Execute multi operations in a single setup to save your time and simplify your manufacturing process. On the same machine in a single setup, Laser texturing, Laser blasting, Laser engraving, and Laser marking operations can be realized on the most complex parts, with unprecedented quality.





1/
Smallest spot size

Choose the specific lens best suited to your application. Depending on your needs, three types of lenses are available for small three-axis Laser operations and for larger five-axis jobs.

Laser sources

Short pulsed laser are needed to perform good texturing operations. From 30 to 100 W, we have the right tool to match your expectation.

Laser technology

The best value for your money, nanosecond Laser matches to your needs by offering a perfect compromise between quality and speed. With Laser flexipulses, be ready to fine-tune your parameters to match your speed and quality targets.

Movement type

Our Laser machine offers you the possibility to apply your desired texture on any 3D complex parts with the requested quality, thanks to our 5axis Laser ablation technology.

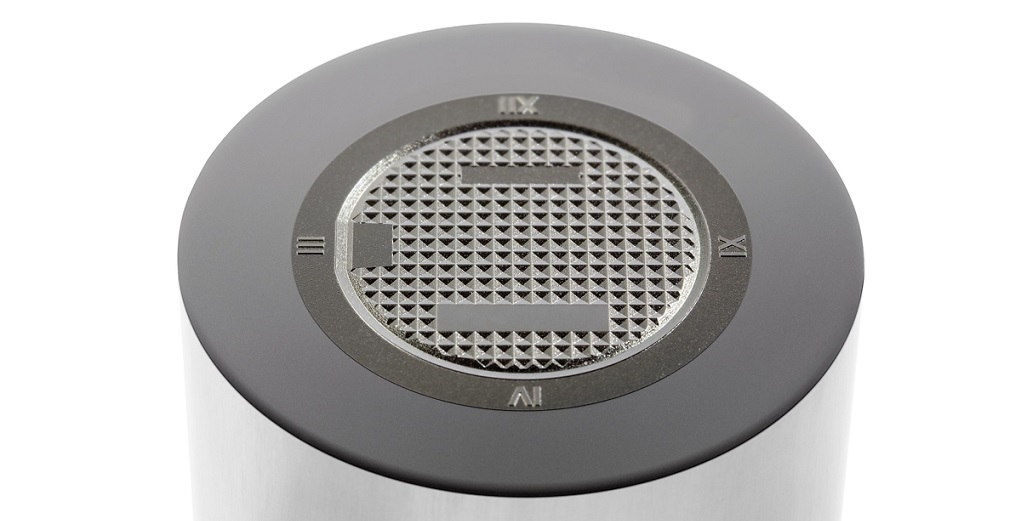

Master micro surface texturing

Master micro surface texturing

Today, Laser texturing combined with a heating and cooling molding process opens even more design possibilities to product designers. Our cooperation with RocTool demonstrates that it is possible to combine popular aesthetic demands such as holographic, textured ripples and mass industrial applications by enabling a high level of replication of the mold surface, thanks primarily to an efficient heating and cooling process during the plastic injection phase.

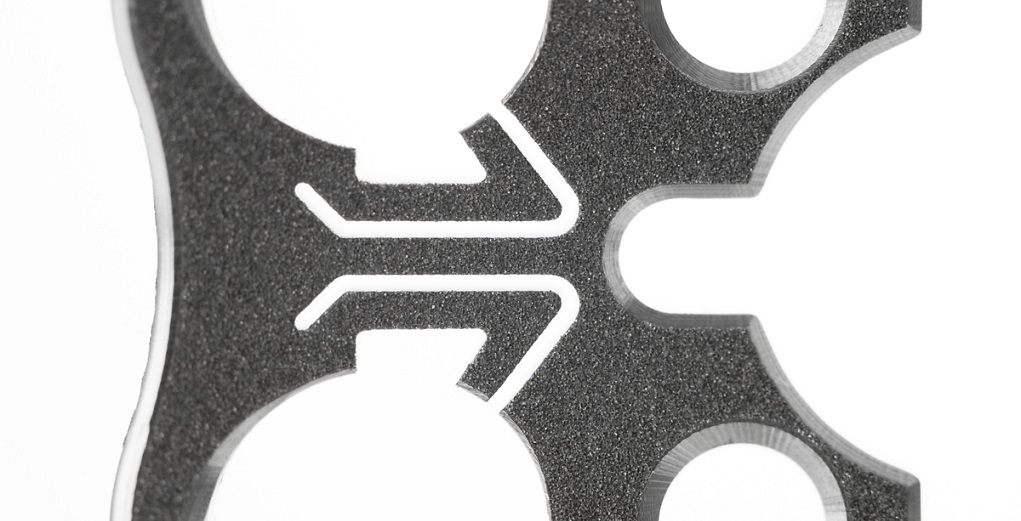

Perfect engraving to boost your quality

Perfect engraving to boost your quality

Get clean, sharp results, and absolutely burr-free engraving with no post-treatment steps required, thanks to the advantages of femtosecond Laser.

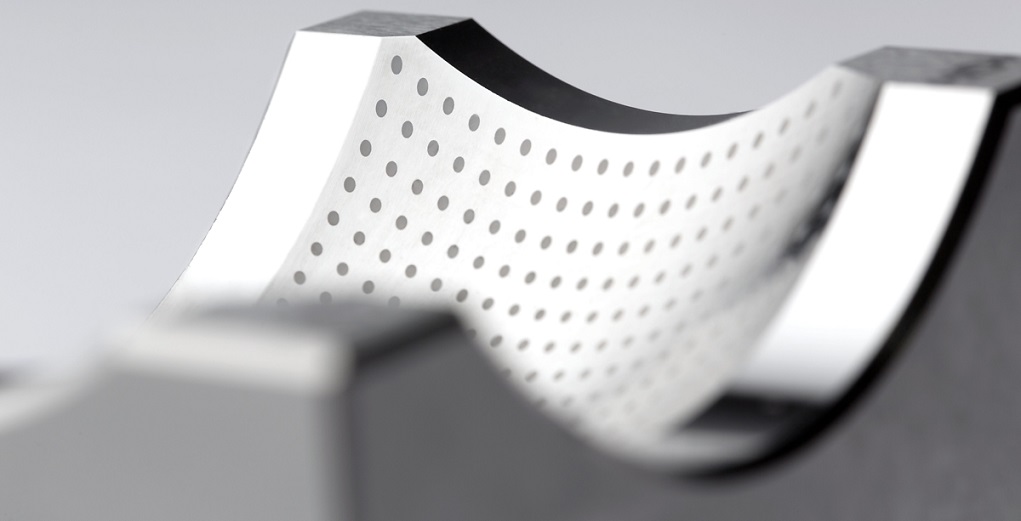

Texture new materials with confidence

Texture new materials with confidence

Effortlessly engrave a wide variety of materials—steel, aluminum, carbide, brass, graphite, copper—in three or five axes, with or without a femtosecond Laser source. With the femtosecond Laser, you can also engrave glass, ceramic, sapphire, diamonds, polymers and more, with a unique tool: a Laser beam.

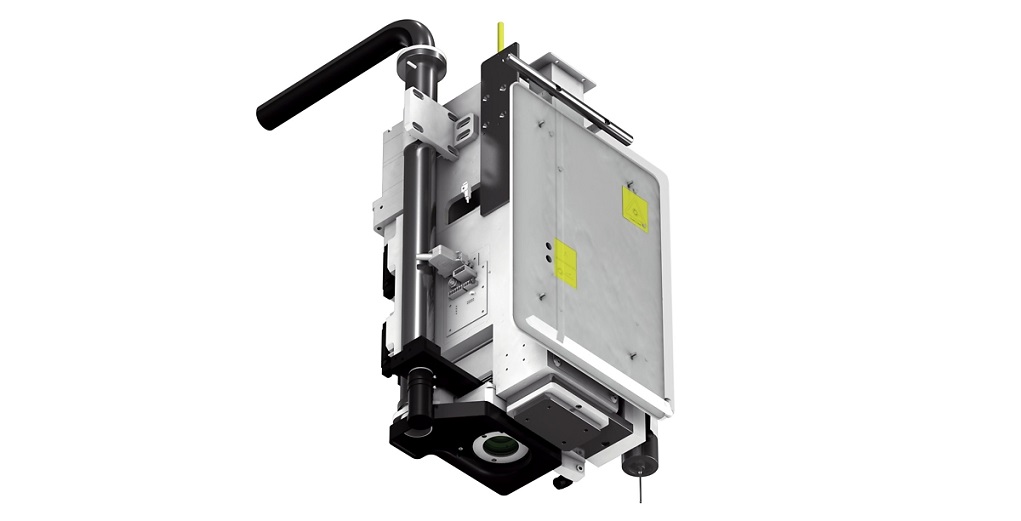

Increased agility

Increased agility

The modular concept of the AgieCharmilles LASER P 400 includes a patented, all-in-one Laser head that can combine two Laser sources for texturing and engraving the same surface with just one setup. That unique Laser head design delivers additional flexibility by making it possible to automatically switch within a second between two Laser sources installed in the same Laser head. That means users can reduce their running time by combining two texturing operations in the same machine.

Specifications

LASER P 400

Main specifications

Main specifications

Dimension of complete equipment *

 1227 x 1659 x 2379 mm

Machine weight (machine only)

 2400 kg

Floor space (machine only)

 2.04 mq

Maximum workpiece dimensions 3Ax/5Ax

 600 x 400 x 300 / Ø 120 x h 120 mm
Maximum workpiece weight 3Ax/5Ax 50/4 kg
Table size 680 x 400 mm
Travel X/Y/Z 400 x 600 x 300 mm
Rotary 4/5 axis ** A 115°-105°/B 360° mm
Laser sources Multi-Laser sources: nanosecond and/or ultrashort pulsed laser **
Power consumption Electrical: 3 x 400 Vac + ground; 6 kVA Pneumatic: 6 bars 500 l/min

* Width x depth x height ** Option

Examples of possible configurations
  • 3 or 5 axis
  • laser source possibilities:
    a) 1 nano source
    b) 1 femto source (20 W or 40 W IR/GR)
    c) 1 nano + 1 femto 20 W.
  • Choice of focal lens, f-Theta or Telecentric, with spot sizes ranging from 15 to 50 μm

Videos

Discover our LASER P 400 videos
Testimonials

Microrelleus SL – Simplify Complex Processes – LASER P 400 U

Microrelleus is providing industrial engraving, laser texturing and laser micro milling. The company offers femtosecond laser service since 2016 and nanosecond laser service since 2013. In this video, Raúl García, CEO, is presenting how Laser has impacted its business.



DM Surfaces SA – AgieCharmilles LASER P 400 Femto Flexipulse

Our motto, written by André Maurois, is as follows:“ The world is progressing thanks to the impossible things that have been achieved". Today, thanks to GF, our teams and our know-how, we have really come up with things that were previously impossible to achieve. And that's our strength today. dm-surfaces.ch
