Mikron MILL E 500/700 U

Unleash your full potential

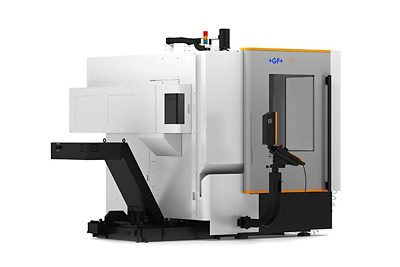

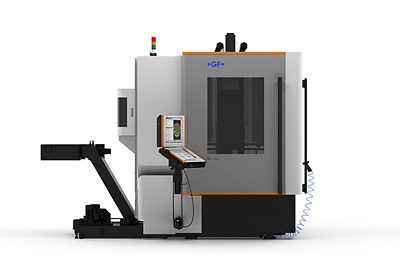

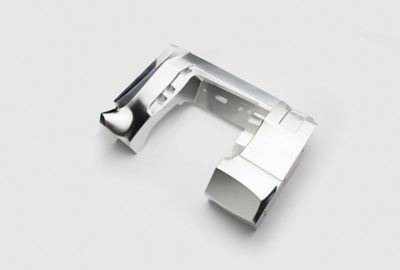

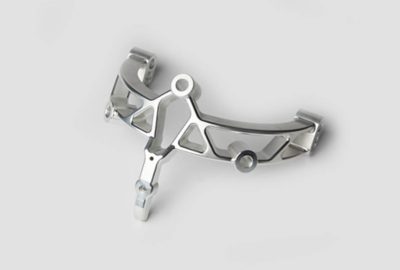

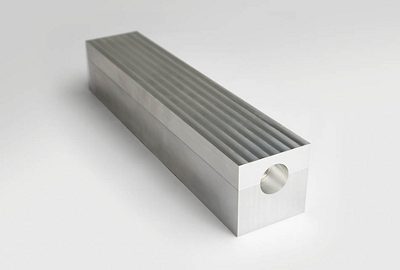

The range of solutions is a second-generation successor to the HEM U range. It brings greater machining capacity and better machining performance to a more robust machine base. With the large swivel range from -65° to + 120° and the ability to load heavy parts up to 450 kg onto the tilting, swiveling table, these solutions U allows users to manufacture a wider range of parts and tools than any other machine currently on the market. It is based on a stiff and stable C-frame construction made out of cast iron. Thanks to large guideways, a double side-supported rotary table and an optimum chip removal rate, this machine delivers quality on parts and reliable operations. Whether you are a job shop or a part producer, these machines are the right solutions to help you tackle the many different requirements coming from the automotive, energy and power generation, and general mechanics industries.

MILL E 500 U - MILL E 700 U

Specifications

MILL E 500 U

Main Specifications

Main Specifications

Travel X, Y, Z500 x 450 x 400 mm
Feed rate X/Y/Z30 m/min
Swivelling range+65°
-120°
Rotary rangen x 360°
Feed rate swivel17  (3+2)
32 (5X simultaneous with DD) rpm
Feed rate rotary28 (3+2)
112 (5X simultaneous with DD) rpm
Working tableT-slot table Ø500 mm
System 3R Dynafix 350x350 / Erowa UPC 320x320 mm
System 3R Delphin 400x400 / Erowa MTS 400x400 mm
Table load300 / 500 (5X simultaneous with DD) kg
Working spindle20'000 rpm - HSK-A63
12'000 rpm - ISO & BT40
Tool magazine30 / 60 / Tool Tower 120 / 170 / 215 pockets
AutomationPallet magazine 7 Dynafix / UPC
Pallet magazine 5 Delphin / MTS
System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis
Controll unitTNC 640 (Heidenhain)
Fanuc 0i-MD

MILL E 700 U

Main Specifications

Main Specifications

Travel X, Y, Z700 x 600 x 500 mm
Feed rate X/Y/Z30 m/min
Swivelling range+65°
-120°
Rotary rangen x 360°
Feed rate swivel17 (3+2)
32 (5X simultaneous with DD) rpm
Feed rate rotary28 (3+2)
112 (5X simultaneous with DD) rpm
Working tableT-slot table Ø630 mm
System 3R Dynafix 350x350 / Erowa UPC 320x320 mm
System 3R Delphin 400x400 / Erowa MTS 400x400 mm
Table load300 / 500 (5X simultaneous with DD) kg
Working spindle20'000 rpm - HSK-A63
12'000 rpm - ISO & BT40
Tool magazine30 / 60 / Tool Tower 120 / 170 / 215 pockets
AutomationPallet magazine 7 Dynafix / UPC
Pallet magazine 5 Delphin / MTS
System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis
Controll unitTNC 640 (Heidenhain)
Fanuc 0i-MD
