Mikron MILL S/X series

Dynamic, precise machining for perfect finishes
Achieve high dynamic, precision and surface finish in mold and part production with the highest productivity on the most iconic compact machine. With an optimized thermal management system and the possibility to easily integrate Automation, the Mikron MILL S/X series is the perfect match for customers who are looking to optimize their processes.

Dynamic

Answer growing part complexity, precision and cycle time demands with a five-axis strategy. Get the ideal combination of linear, rotating and swiveling axes and shorten your production time with direct Milling in one clamping operation as a substitute for other process steps. Profit from perfect surface quality and precision due to single-clamping production and perfectly aligned five-axis kinematics.

Precision and high surface quality

Perfect machine design with highest mechanical requirements provides the basis for high surface quality and repeatability. The reliable Step-Tec Spindle and linear motors in combination with Ambient Robust technology always ensure high surface quality on parts. Master the challenges of a wide range of applications and short-term market requirements while maintaining high accuracy.

Iconic ergonomics and design

The Mikron MILL S/X series is very well-known on the market for its ideal ergonomics and fit in customers’ workshops. The ideal machine design allows perfect machine setup and accessibility. Increase your return on investment (ROI) through perfect machine-robot connectivity and scalability.

MILL X 400 – MILL S 500/600/800

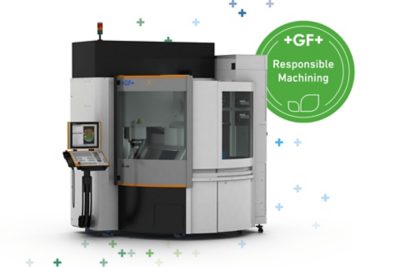

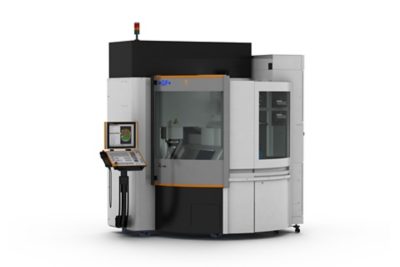

Milling machine - 3 axis - Mikron MILL S/X series MILL X 400
Milling machine - 3 axis - Mikron MILL S/X series MILL S 500

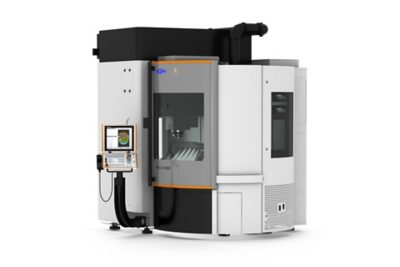

Milling machine - 3 axis - Mikron MILL S/X series MILL S 600

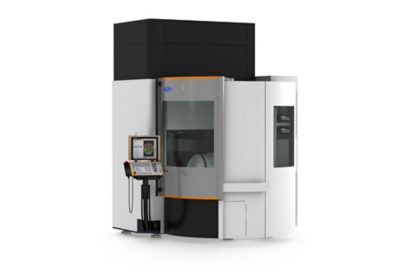

Milling machine - 3 axis - Mikron MILL S/X series MILL S 800
1/
100% precision right on time and process

With Automated Machine Calibration (AMC) as standard, the machine geometry can be calibrated at any time within minutes by any operator. The powerful cooling of all machine components will keep your process stable.

+45% reduction of tool center point drift

The Ambient Robust technology enables constant stabilization of the machine body temperature. Minimal movement of machine geometry will result in lowest possible drift of the tool center point.

+40% higher speed for more competitiveness

The strong linear motors capable of a speed up to 100m/min position you ahead of your competition. Reduce your cost per part thanks to higher machine dynamics.

24-h billable autonomy

Discover integrated Automation with GF Machining Solutions' most compact pallet changer. This solution is prepared for third-party automation with robot interface. Even with automation, access to the working area is always ensured.



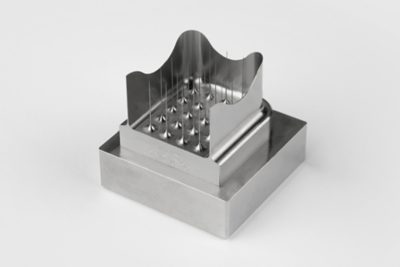

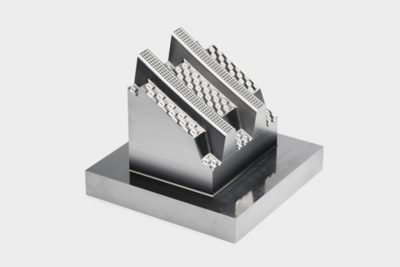

Applications

Automation comes standard - MILL X - Milling machines GF Machining Solutions

Automation comes standard

Palletized automation is one of the best ways to cut down setup times and maximize spindle utilization – and it comes standard on MILL X series machines. Whether it’s unmanned series production or a range of different parts, it’s ideal for any shop looking for the highest level of throughput. The machine also comes with a standardized robot interface to take the single-machine MILL X and integrate it with a complete automation solution.

Complex-part production, perfected - MILL X - Milling machines - GF Machining Solutions

Complex-part production, perfected

Designed to allow manufacturers to reach new levels of speed and productivity, the MILL X series also offers ultra-high-speed spindles, integrated automation and smart machine modules that are all aimed at minimizing non-cut time and maximizing operator productivity. Superior surface finishes help to eliminate post-processing operations and when operators do need to intervene, the ergonomic design makes access simple.

Long-lasting precision - MILL S - Milling machines GF Machining Solutions

Long-lasting precision

For mold and die manufacturers, long cycle times for precision components make process security a necessity. The MILL S series uses a range of solutions for long-term reliability, including programmable warm-up cycles, thermostabilized machine bodies and OptiCool or CoolCore Step-Tec Spindle technology. High-dynamic drives and guides, direct-path measuring systems in the linear axes, and castings optimized.

Optimal machining at your fingertips - MILL S - Milling machines - GF Machining Solutions

Optimal machining at your fingertips

In addition to an optimized, rigid machine design and world-class spindle technology, the MILL S series comes equipped with smart machine modules that make it possible to reach the highest level of reliability and performance. Operator Support System (OSS) Extreme smooths movement and improves feedrates for high precision, better surface quality and up to 25% faster machining time, while Intelligent Tool Monitoring (ITM) ensures reliable.

Jig grinding

Secure and reduce your manufacturing process for optimal surface quality with a single machine



Mikron MILL S/X machines are able to combine Milling and jig grinding on the same machine. The grinding setup into the machine has been well designed in order to maintain standard workpiece dimensions and clamping surface even for Automation. Nevertheless, the laser measuring system and the dressing spindle are located closer to the working area for a quick and fast grinding process. Through this two-in-one solution, GF Machining Solutions improves and significantly reduces customers’ manufacturing processes. The combination of milling and grinding technologies, extremely high machine dynamics, and consistent thermal stability and accuracy provide fast ROI and high-end, quality products.

Two-in-one solution

Combine Milling and jig grinding on a single machine to both reduce the part manufacturing process and increase surface quality. The closed grinding process (grinding + measuring) accelerates your time to market.

Monitor your process

Dressing spindle is equipped with an acoustic emission (AE) sensor to track and visualize on the Heidenhain control the signal during tool dressing. The machine can be equipped with an additional AE sensor to track grinding operations in order to further optimize the process.

Three- or five-axis grinding process

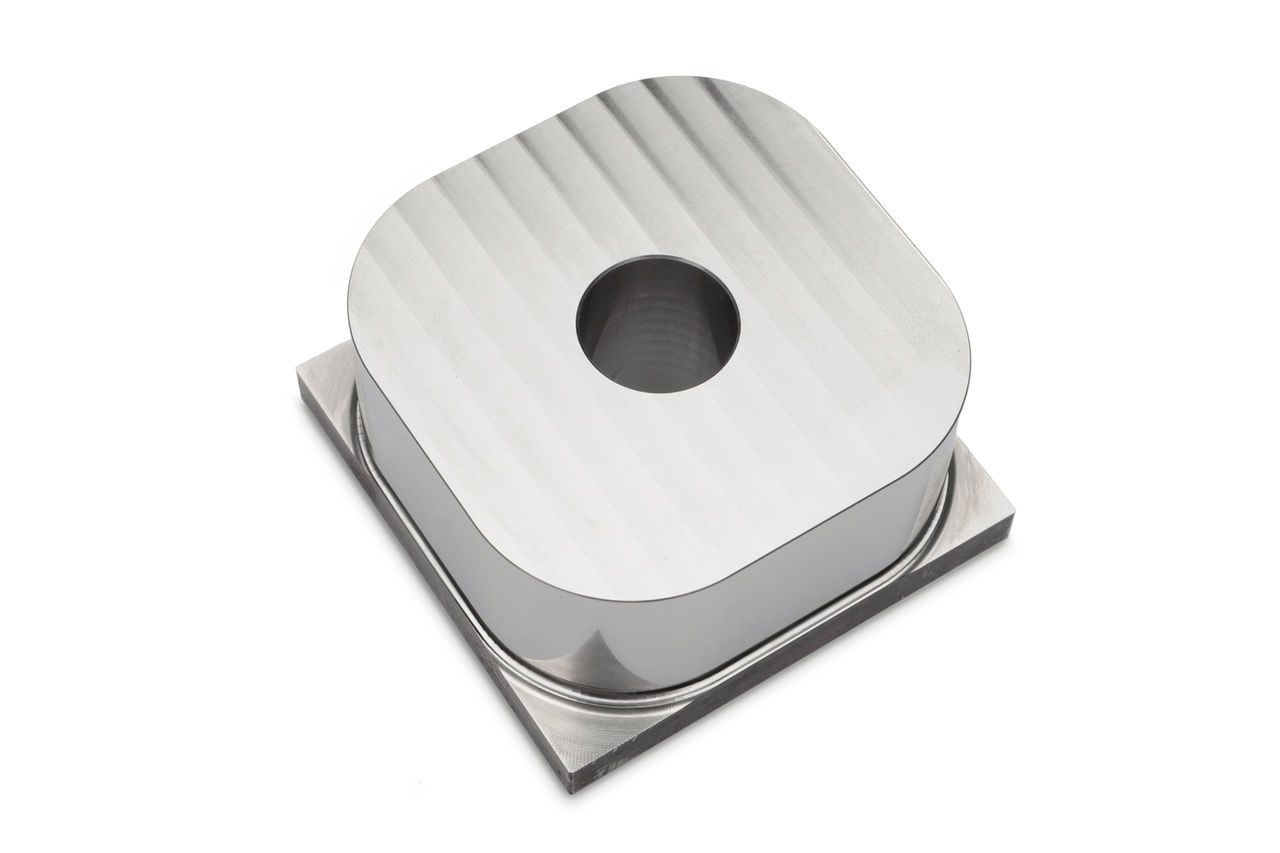

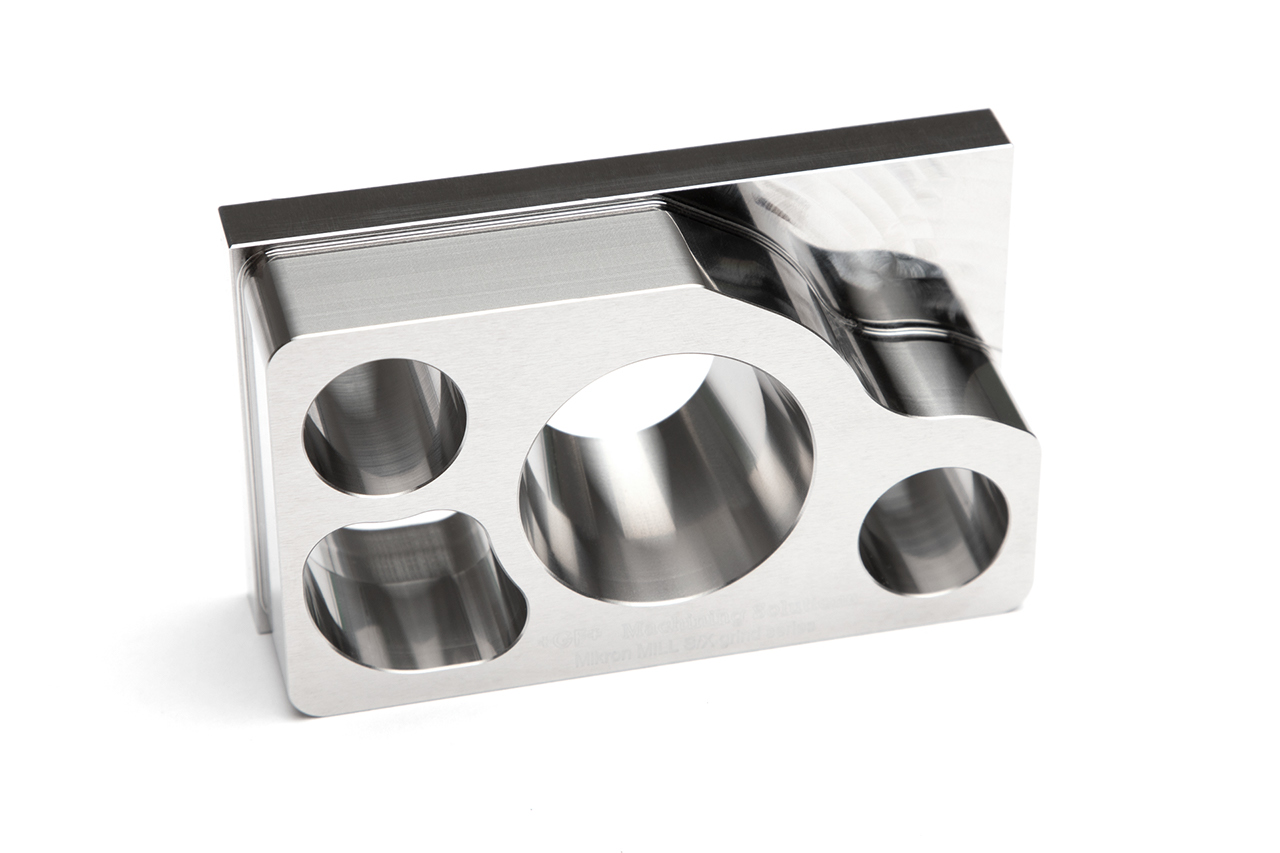

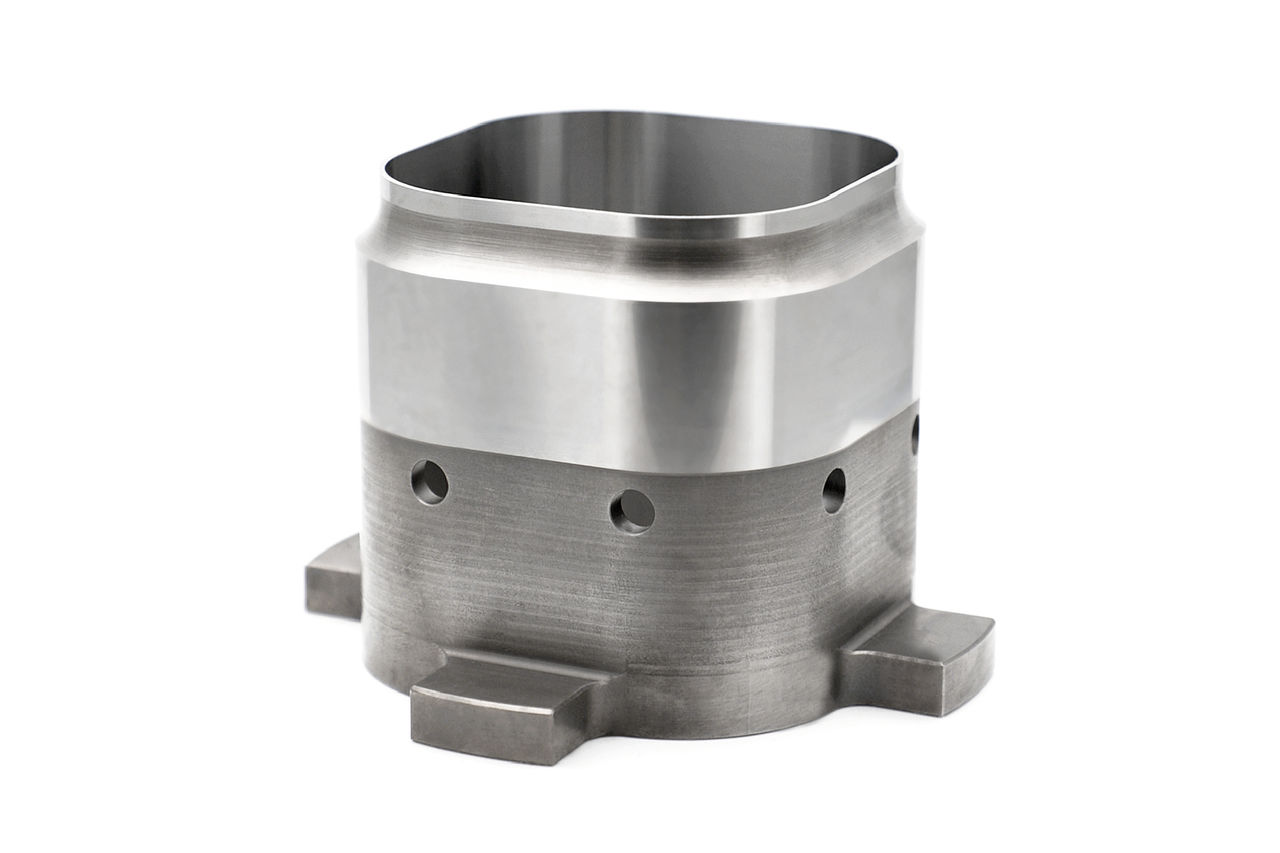

Thanks to the Mikron MILL S/X series extend your business opportunity by combining milling and grinding process on the same machine in three- or five-axis simultaneous. Get easily a surface quality of < Ra 0.06 µm

Stable grinding process

Easily and significantly increase surface quality on parts with the closed grinding process (grinding/dressing/measuring) and the monitoring through the AE sensors.

Maximize your potential

Mikron MILL S/X (U) series machines are Automation ready and the grinding option does not impact standard workpiece dimensions or the standard pallet changer. Get automated parts changing to increase your production output while achieving 3 µm machining accuracy and less than 0.06 µm surface roughness.



Specifications

MILL X 400
Main specifications
Travel X,Y,Z
500 x 450 x 360 mm
19.68 x 17.72 x 14.17 in
Rapid traverse X,Y,Z100 m/min
3,937 in/min
Working spindle (40% ED, S6)30,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
Pallet/clamping surfaceDynafix 280 x 280/350 x 350
UPC 320 x 320
Max. load (incl. pallet)120 kg
264 lbs
Tool magazine18/36/68/168 (HSK-E40)
Machine weight6,800 kg
14,991 lbs
Control unitTNC 640 (Heidenhain)

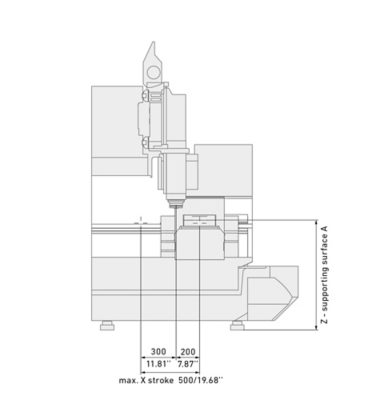

Technical drawings

layout front

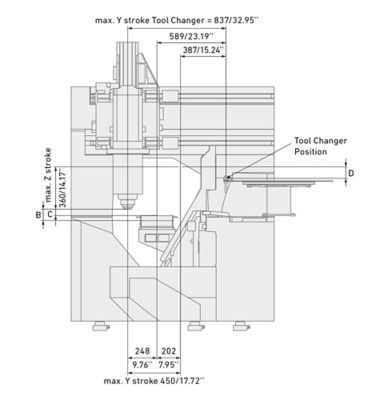

layout profile
layout mill x 400
MILL S 500
Main specifications
Travel X,Y,Z
500 x 450 x 360 mm
19.68 x 17.72 x 14.17 in
Rapid traverse X,Y,Z61 m/min
2,401 in/min
Working spindle (40% ED, S6)30,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
Work table590 x 450 mm
23.23 x 17.72 in
Max. load (incl. pallet)200 kg
441 lbs
Tool magazine18/36/68/168 (HSK-E40)
Machine weight6,800 kg
14,991 lbs
Control unitTNC 640 (Heidenhain)

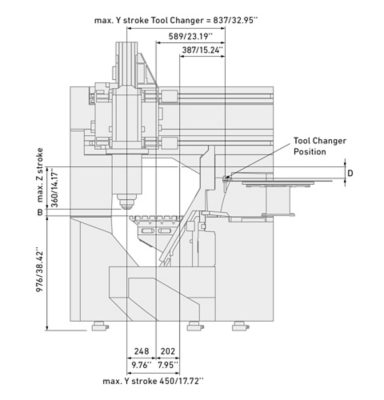

Technical drawings

layout front
layout profile
layout mill s 500
MILL S 600
Main specifications
Travel X,Y,Z
600 x 600 x 500 mm
23.62 x 23.62 x 19.68 in
Rapid traverse X,Y,Z61 m/min
2,401 in/min
Working spindle (40% ED, S6)42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
36,000 (HSK-E50) / 33 / 21 rpm/kW/Nm
Work table900 x 600 mm
35.43 x 23.62 in
Pallet/clamping surface800 x 600 mm
31.5 x 23.62 in
Max. load (incl. pallet)500 kg
1102 lbs
Tool magazine18/36/68/168 (HSK-E40)
15/30/60/120/170/220 (HSK-E50)
Machine weight9,900 kg
21,825 lbs
Control unitTNC 640 (Heidenhain)

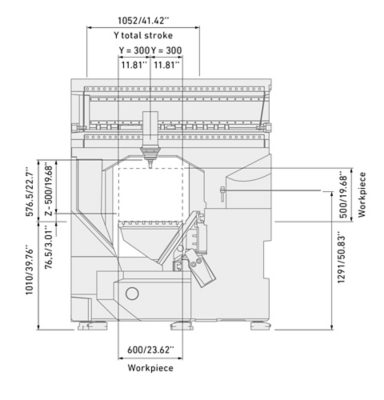

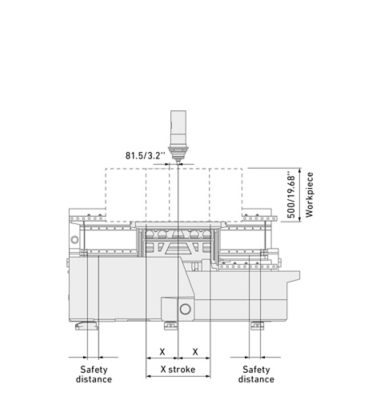

Technical drawings

layout front
layout profile
layout mill s 600
MILL S 800
Main specifications
Travel X,Y,Z
800 x 600 x 500 mm
31.5 x 23.62 x 19.68 in
Rapid traverse X,Y,Z61 m/min
2,401 in/min
Working spindle (40% ED, S6)42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
36,000 (HSK-E50) / 33 / 21 rpm/kW/Nm
Work table900 x 600 mm
35.43 x 23.62 in
Pallet/clamping surface800 x 600 mm
31.5 x 23.62 in
Max. load (incl. pallet)1000 kg
2204 lbs
Tool magazine18/36/68/168 (HSK-E40)
15/30/60/120/170/220 (HSK-E50)
Machine weight9,900 kg
21,825 lbs
Control unitTNC 640 (Heidenhain)



Technical drawings

layout front
layout profile
layout mill s 800
