The most compact and dynamic milling machine
Please accept all cookies to view the external content.
Dynamic
Meet complex precision demands with a five-axis system using all-linear direct-drive motors. It offers dynamic response, high acceleration, and precise positioning for faster, vibration-free milling in one setup.
Precision and high surface quality
Robust design with high stiffness and STEP TEC spindle ensures precision and mirror finishes. Linear motors with Ambient Robust tech deliver active thermal stability for consistent accuracy in dynamic applications.
Iconic ergonomics and design
The MIKRON MILL S/X U series is renowned for ergonomic design and workshop fit. Its optimal setup and accessibility boost ROI with seamless machine-robot integration and scalability.
Ideal for automotive reflector mold machining, the MIKRON MILL S and X feature direct linear motors and advanced thermostabilization for precise, stable, and high-quality finishes.
Designed for complex 5-axis machining, the MIKRON MILL S and X excel in applications like impeller, turbocharger, and vacuum compressor manufacturing.
Built for high-dynamic machining, the MIKRON MILL S and X deliver precise results for medical parts like bone saw guides and dental components—offering top performance in a compact footprint
Dynamic precision over long running times
Achieve high dynamic, precision and surface finish in mold and part production with the highest productivity on the most iconic compact machine.
• Linear direct-drive motors in all axis
• Axis feed rate up to 100 m/min
• Acceleration up to 1.5 g
• Active thermal management – Ambien Robust
• High spindle rpm up to 42,000

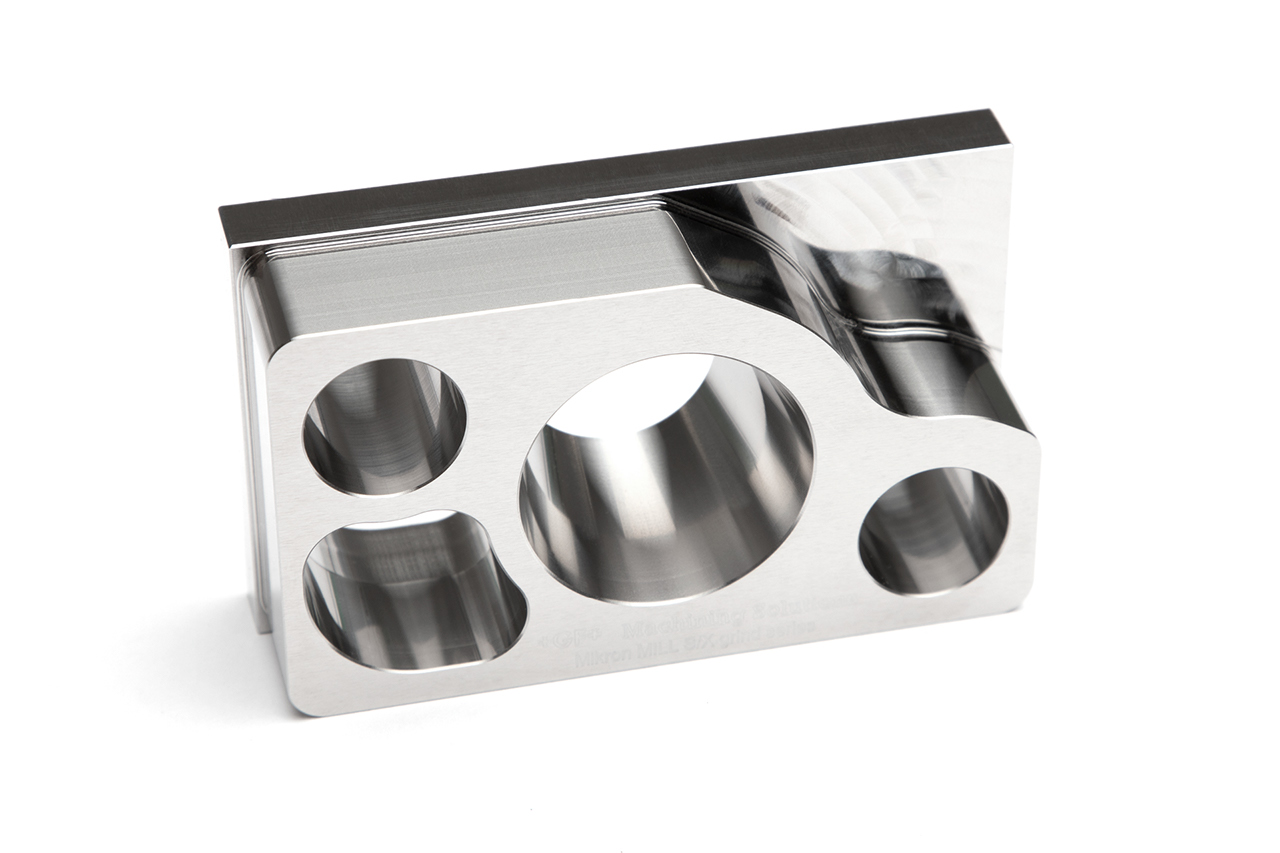

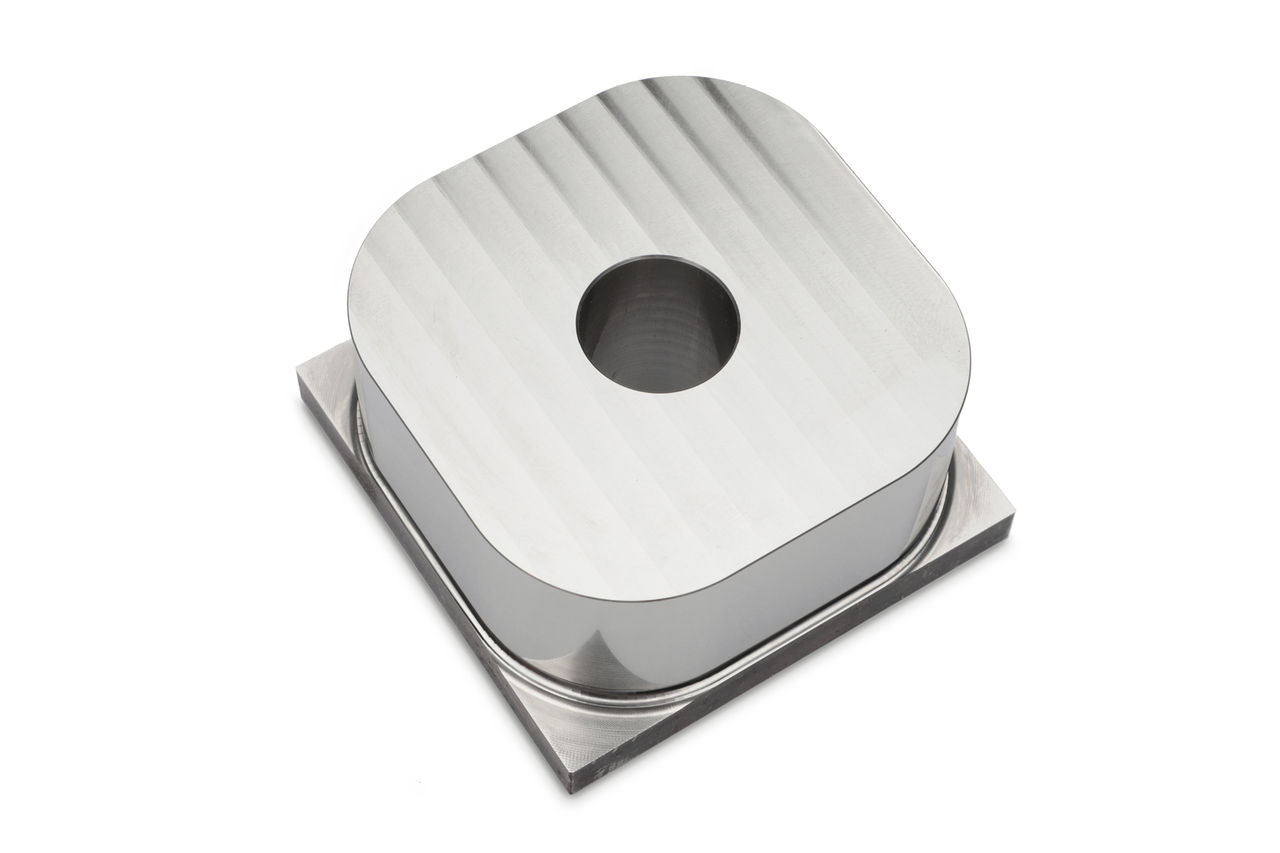

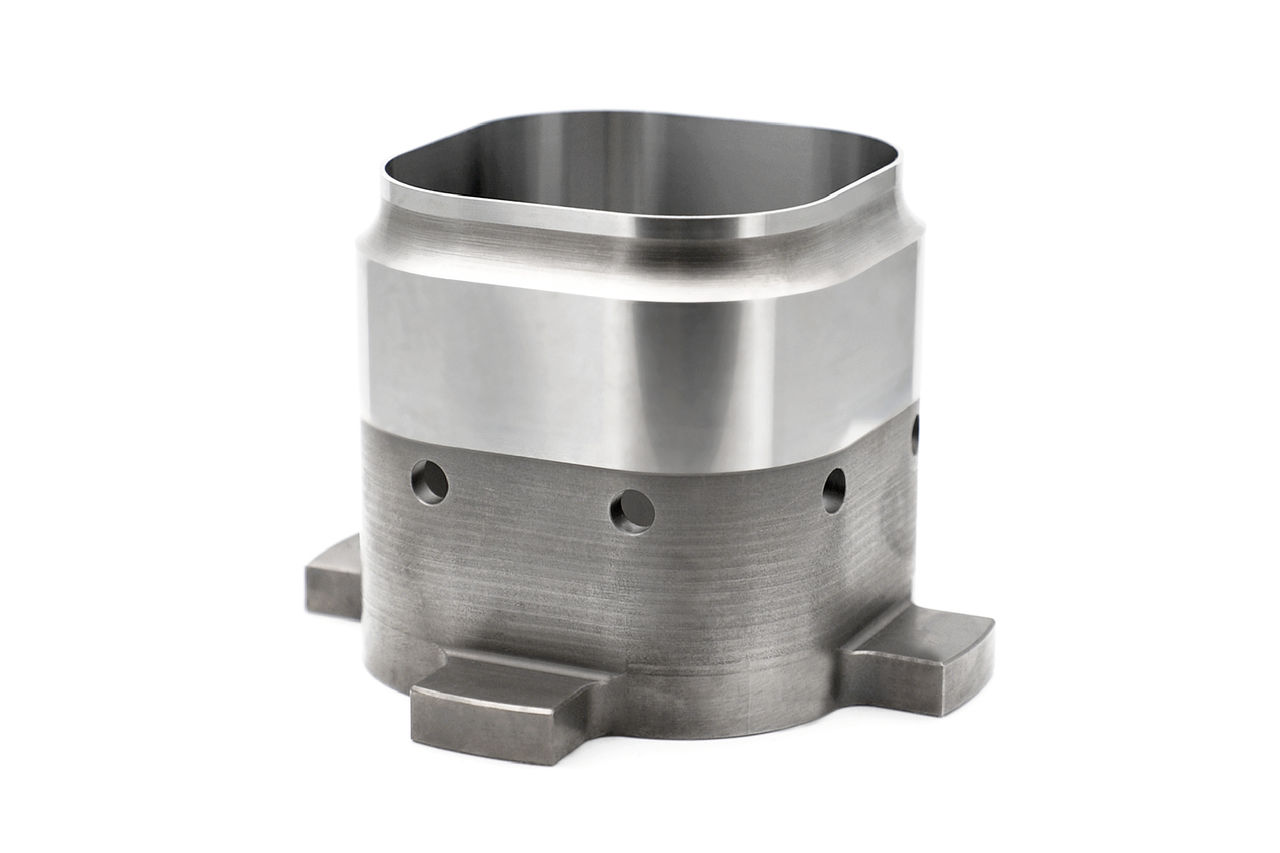

Jig grinding: Secure and reduce your manufacturing process for optimal surface quality with a single machine
Two-in-one solution
Combine Milling and jig grinding on a single machine to both reduce the part manufacturing process and increase surface quality. The closed grinding process (grinding + measuring) accelerates your time to market.
Monitor your process
Dressing spindle is equipped with an acoustic emission (AE) sensor to track and visualize on the Heidenhain control the signal during tool dressing. The machine can be equipped with an additional AE sensor to track grinding operations in order to further optimize the process.
Three- or five-axis grinding process
Thanks to the MIKRON MILL S/X U series extend your business opportunity by combining milling and grinding process on the same machine in three- or five-axis simultaneous. Get easily a surface quality of < Ra 0.06 µm.
Stable grinding process
Easily and significantly increase surface quality on parts with the closed grinding process (grinding/dressing/measuring) and the monitoring through the AE sensors.
Maximize your potential
MIKRON MILL S/X (U) series machines are Automation ready and the grinding option does not impact standard workpiece dimensions or the standard pallet changer. Get automated parts changing to increase your production output while achieving 3 µm machining accuracy and less than 0.06 µm surface roughness.
Human Machine interface
Boosted numerical control
The MIKRON MILL S and X series can be equipped with either the Heidenhain TNC 7 or the Siemens Sinumerik ONE control system. Both HMIs are enhanced by an internally developed and patented Smart Machine modules, designed to boost productivity and elevate machining performance to the next level.
High-quality Swiss made Spindle
Precision engineered for extreme micromachining
STEP TEC high-speed Spindles use premium components and advanced thermal design for stable, precise, vibration-free micromachining at high speeds. Swiss-made in-house for unmatched quality, ideal for automotive, electronics, and medical applications.
30,000 min-1, HSK-E40
42,000 min-1, HSK-E40
36,000 min-1, HSK-E50
OptiCool
STEP TEC’s OptiCool Spindle series ensures not only that the Spindle remains thermally stable, but that natural heat transfer to the Spindle support (e.g., Z axis) is limited to the lowest amount possible, in order to preserve the machine’s geometry.
CoolCore
Where conventional stator cooling reaches its limits, STEP TEC’s CoolCore Spindle goes beyond the ordinary to lower the temperature and minimize temperature fluctuations in the rotating shaft.
Applications
Specifications
MILL X 400
Main specifications | |
Travel X,Y,Z |
500 x 450 x 360 mm 19.68 x 17.72 x 14.17 in |
Rapid traverse X,Y,Z | 100 m/min 3,937 in/min |
Working spindle (40% ED, S6) | 30,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm |
Pallet/clamping surface | Dynafix 280 x 280/350 x 350 UPC 320 x 320 |
Max. load (incl. pallet) | 120 kg 264 lbs |
Tool magazine | 68/168 (HSK-E40) |
Machine weight | 6,800 kg 14,991 lbs |
Control unit | Heidenhain TNC 7 Siemens SINUMERIK ONE |
MILL S 500
Main specifications | |
Travel X,Y,Z |
500 x 450 x 360 mm 19.68 x 17.72 x 14.17 in |
Rapid traverse X,Y,Z | 61 m/min 2,401 in/min |
Working spindle (40% ED, S6) | 30,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm |
Work table | 590 x 450 mm 23.23 x 17.72 in |
Max. load (incl. pallet) | 200 kg 441 lbs |
Tool magazine | 68/168 (HSK-E40) |
Machine weight | 6,800 kg 14,991 lbs |
Control unit | Heidenhain TNC 7 Siemens SINUMERIK ONE |
MILL S 600
Main specifications | |
Travel X,Y,Z |
600 x 600 x 500 mm 23.62 x 23.62 x 19.68 in |
Rapid traverse X,Y,Z | 61 m/min 2,401 in/min |
Working spindle (40% ED, S6) | 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm 36,000 (HSK-E50) / 33 / 21 rpm/kW/Nm |
Work table | 900 x 600 mm 35.43 x 23.62 in |
Pallet/clamping surface | 800 x 600 mm 31.5 x 23.62 in |
Max. load (incl. pallet) | 500 kg 1,102 lbs |
Tool magazine | 68/168 (HSK-E40) 15/30/60/120/170/220 (HSK-E50) |
Machine weight | 9,900 kg 21,825 lbs |
Control unit | Heidenhain TNC 7 Siemens SINUMERIK ONE |
MILL S 800
Main specifications | |
Travel X,Y,Z |
800 x 600 x 500 mm 31.5 x 23.62 x 19.68 in |
Rapid traverse X,Y,Z | 61 m/min 2,401 in/min |
Working spindle (40% ED, S6) | 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm 36,000 (HSK-E50) / 33 / 21 rpm/kW/Nm |
Work table | 900 x 600 mm 35.43 x 23.62 in |
Pallet/clamping surface | 800 x 600 mm 31.5 x 23.62 in |
Max. load (incl. pallet) | 1,000 kg 2,204 lbs |
Tool magazine | 68/168 (HSK-E40) 15/30/60/120/170/220 (HSK-E50) |
Machine weight | 9,900 kg 21,825 lbs |
Control unit | Heidenhain TNC 7 Siemens SINUMERIK ONE |
