Seamless precision and speed. Pure Laser simplicity.
Please accept all cookies to view the external content.
Please accept all cookies to view the external content.
When speed meets stability and precision

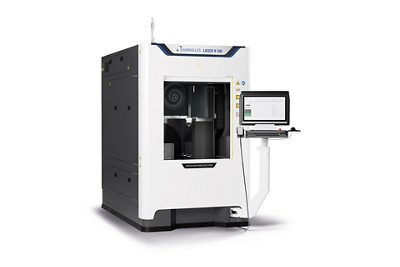

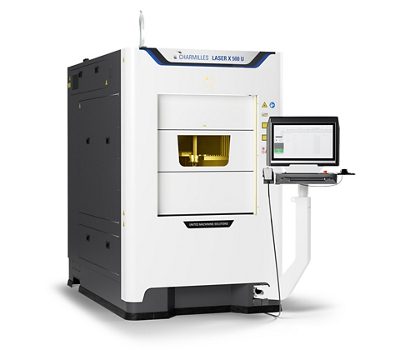

The CHARMILLES LASER X 500 U combines a thermostabilized platform for consistent accuracy with advanced kinematics that enable ultra-fast, high-precision machining—even on complex geometries.
Set up your jobs in minutes and not hours
Features a new HMI for streamlined tool management and faster workflows, paired with LaserSUITE360 CAD/CAM software offering preconfigured strategies for rapid programming
Unlock new opportunities with LaserSuite360

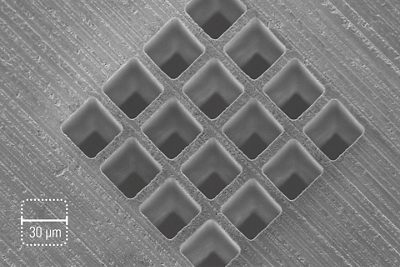

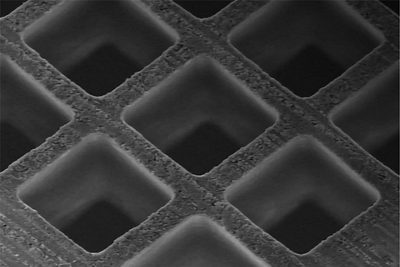

Easily produce complex angles, chamfers, and fine details through micro-drilling and micro-cutting operations, while our optimized guide plate strategy ensures efficient and precise machining for probe card applications.

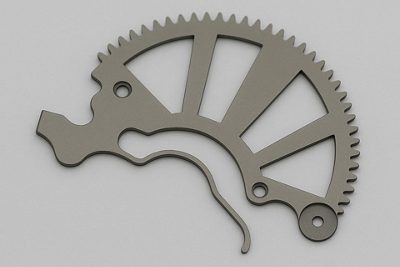

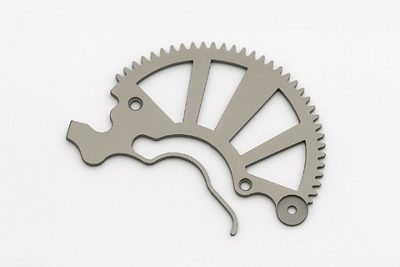

The CHARMILLES LASER X 500 (U) delivers precise beveling, counterboring, deep engraving, chamfering, ablation, and fine cutting — essential operations highly valued in the watchmaking industry.
From high-precision micro drilling to micro cutting, the CHARMILLES LASER X 500 (U) delivers the versatility and accuracy demanded by the ICT industry.

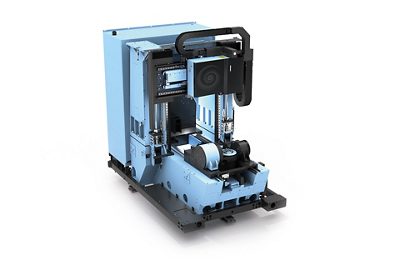

Complete thermostabilization
The CHARMILLES LASER X 500 (U)’s water-cooled core ensures stable precision throughout any production cycle—whether it lasts hours or weeks.
High dynamics
Accelerated axis mouvement
The combination of linear motors and torque motors drives higher speed and acceleration on the axis.
High-speed 5D scanners
The new CHARMILLES LASER X 500 (U) integrates the latest-generation 5D scanner, giving customers full control over their drilling and cutting operations with unmatched speed and quality assurance.

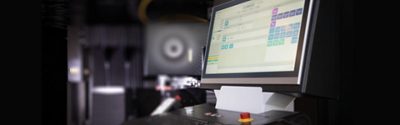

With SPOT, our innovative Laser machine interface, we offer an advanced Human-Machine Interface (HMI) and controller that exceed the demands of even the most complex applications.
Flexibility
Enhanced programming, loop and variable management, operation management and code completion offer the flexibility to tailor programs to specific application requirements.
Machine tool DNA
SPOT delivers advanced frame management, tool management, software corrections, measurement cycles, calibration wizards and G-code capabilities.
Ergonomics and user friendliness
Single-click laser switch, embedded controls, and intuitive features set SPOT as the industry standard for a user-friendly interface.
User account management
It enhances security and control with customizable permissions and access levels.
Applications
Versatile machining
Please accept all cookies to view the external content.
3-axis configuration
Maximum loading capacity: 60 kg
5-axis configuration
Maximum loading capacity: 15 kg
Key services for your Laser machine
We offer dedicated Success Packs for Laser machines. For added peace of mind, our packs give you a full-warranty coverage for up to 5 years. Ensure optimum performance with our regular maintenance and get back to business quickly through fast and efficient repair services.
Extended warranty
- Included in the Gold Success Pack
- One year full machine warranty including laser source and labor costs
Preventive maintenance
- Included in the Silver Success Pack
- Annual scheduled intervention on site including an OEM certified maintenance kit and labor costs
Fast repair services
- Included in the Bronze / Silver Success Packs
- Advanced diagnosis, 24/5 support through My rConnect digital platform
Specifications
LASER X 500 (U)
Main specifications
Main specifications |
|
| Machine dimensions * | 2174 x 1387 x 2556 mm |
| Approx. machine weight | 4000 kg |
| Machine footprint | 3600 x 2500 mm |
| X, Y, Z travels | 550 x 400 x 500 mm |
| B-axis travel | -110°/+110° (LASER X 500 U) |
| C-axis travel | 0°/+720° (LASER X 500 U) |
| Laser CHARMILLES Femto Flexipulse™ | 40 W IR/20 W GR |
* Width x depth x height
