Mikron MILL S/X U series

Dynamic, precise machining for perfect finishes
Achieve high dynamic, precision and surface finish in mold and part production with the highest productivity on the most iconic compact machine. With an optimized thermal management system and the possibility to easily integrate Automation, the Mikron MILL S/X U series is the perfect match for customers who are looking to optimize their processes.

Please accept all cookies to view the external content.

MILL S/X 400 U – MILL S/X 600 U – MILL S 200 U

Please accept all cookies to view the external content.


Applications

Jig grinding

Secure and reduce your manufacturing process for optimal surface quality with a single machine



Please accept all cookies to view the external content.

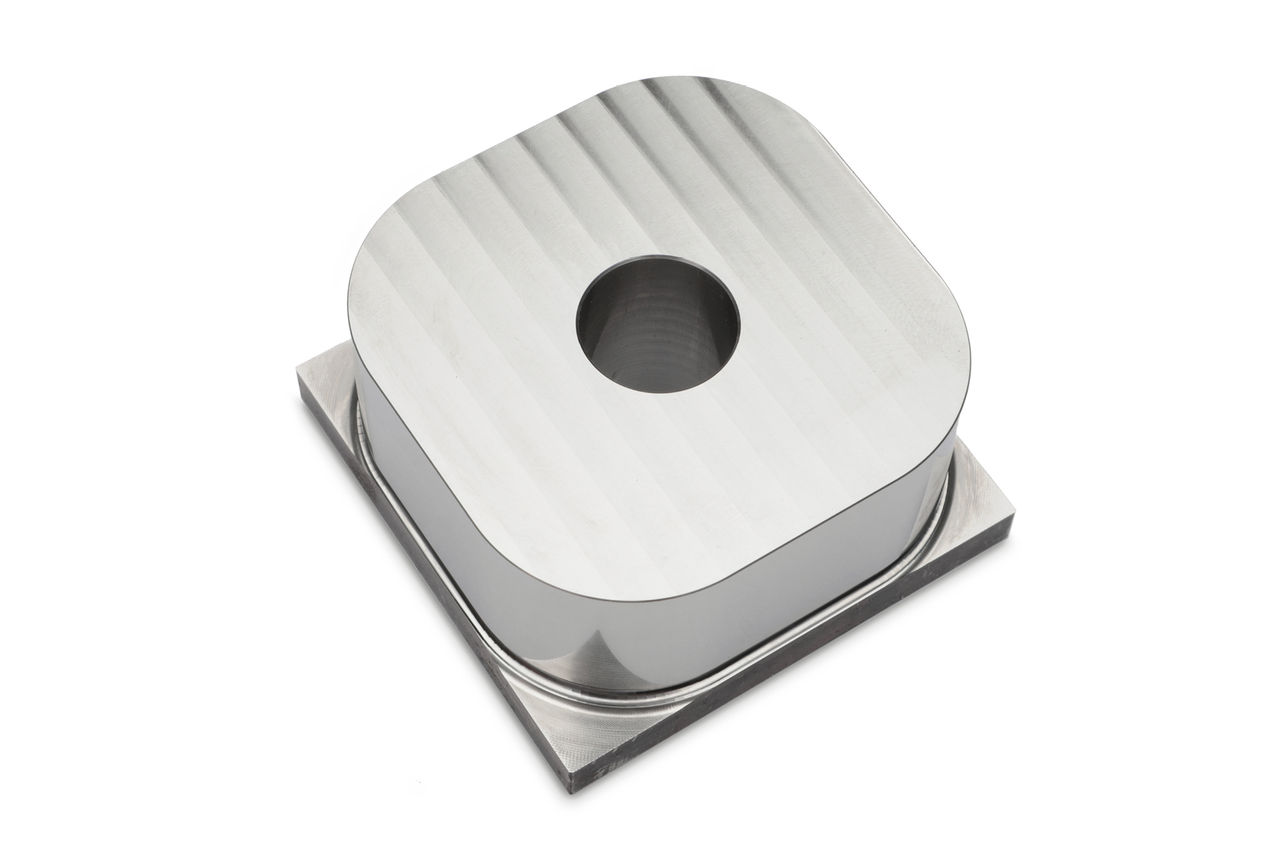

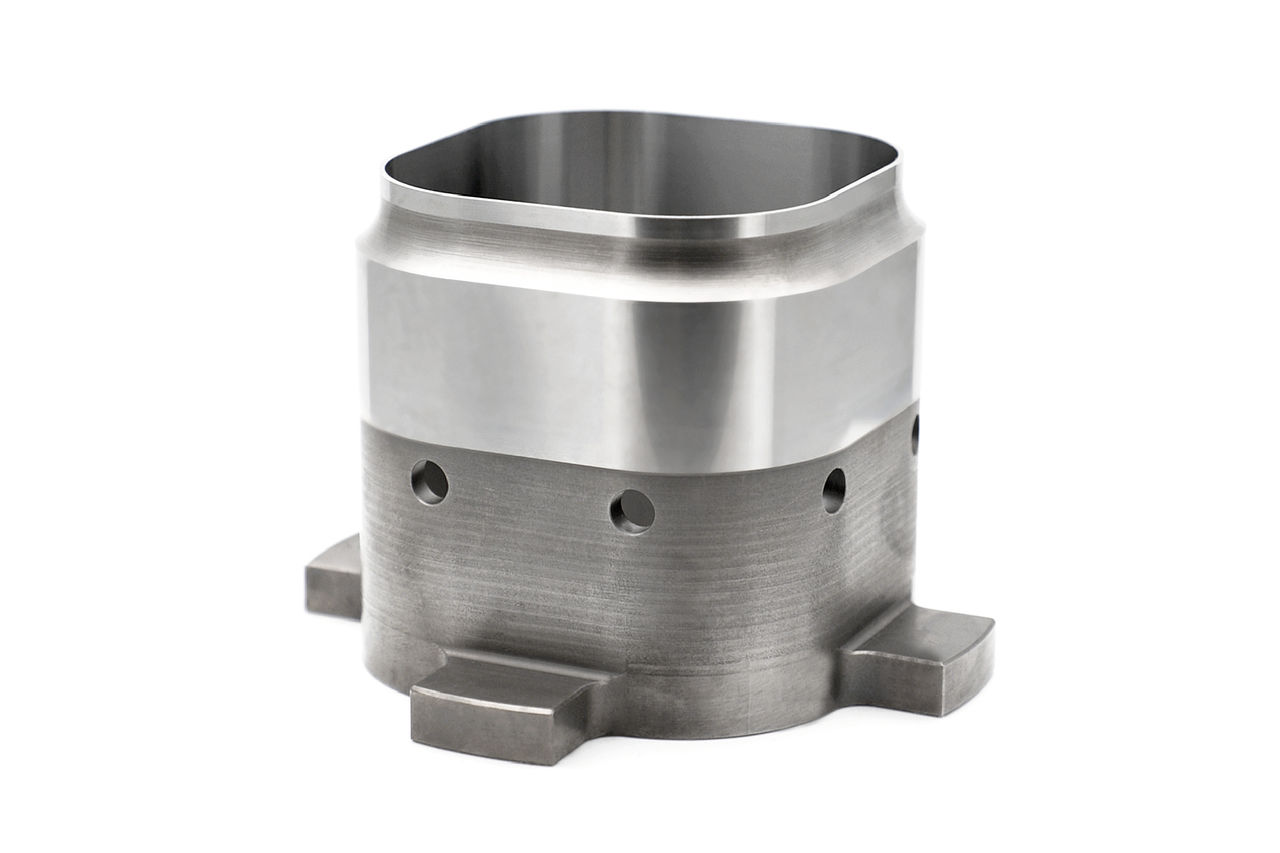

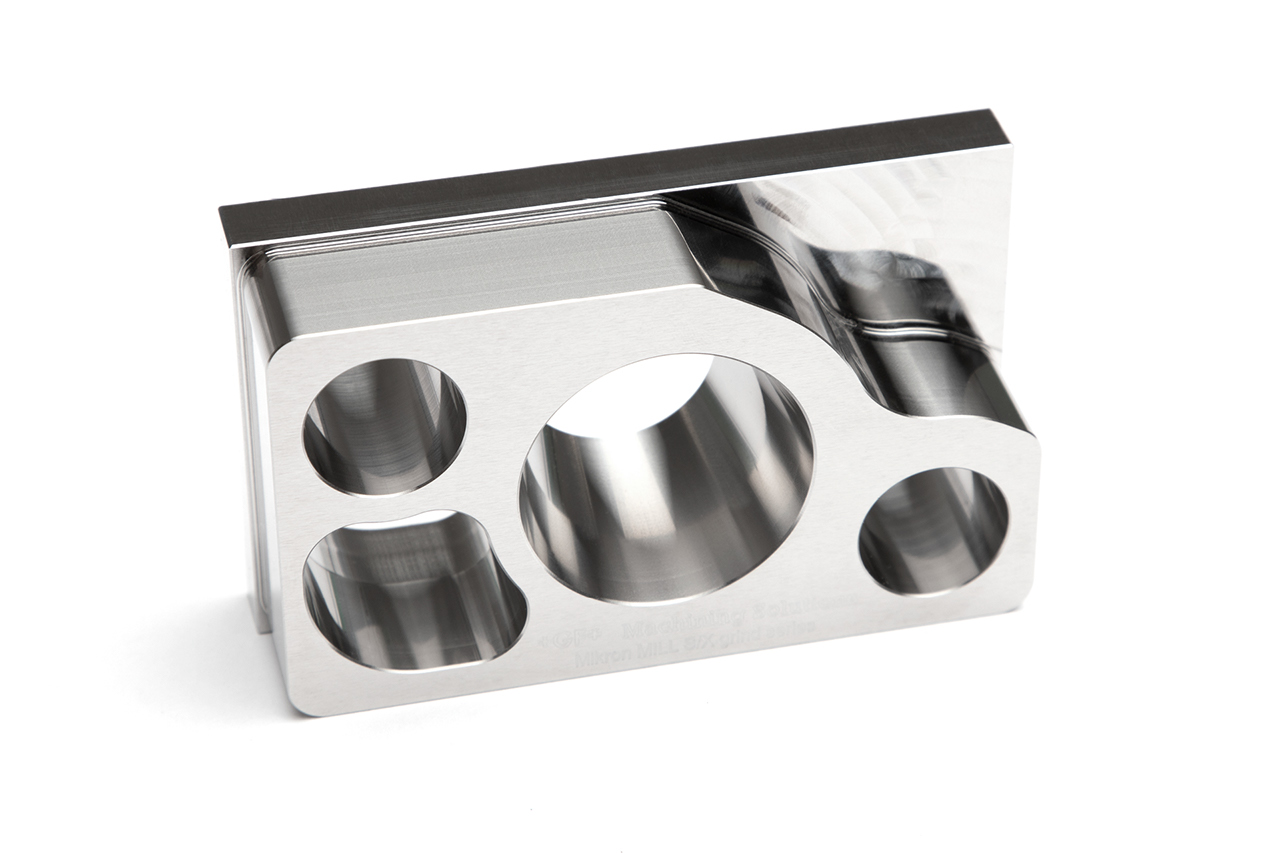

Mikron MILL S/X U machines are able to combine Milling and jig grinding on the same machine. The grinding setup into the machine has been well designed in order to maintain standard workpiece dimensions and clamping surface even for Automation. Nevertheless, the laser measuring system and the dressing spindle are located closer to the working area for a quick and fast grinding process. Through this two-in-one solution, GF Machining Solutions improves and significantly reduces customers’ manufacturing processes. The combination of milling and grinding technologies, extremely high machine dynamics, and consistent thermal stability and accuracy provide fast ROI and high-end, quality products.

Please accept all cookies to view the external content.


Sustainability

Maintaining the highest level of precision while consuming less energy, the Mikron MILL S/X U series is a sustainable solution for any high-end milling challenges. This starts with design of the machine from the very beginning, with a new control unit, a more efficient exhaust system and intelligent temperature control.

Please accept all cookies to view the external content.


Specifications

MILL S 200 U

Main specifications
Main specifications
Travel X,Y,Z
160 x 160 x 200 mm
6.30 x 6.30 x 7.87 in
Swiveling range +30°
-120°
Rotary range n x 360°
Rapid traverse X,Y,Z 42 m/min
1,653 in/min
Rapid traverse: Swiveling / Rotating 150 / 220 rpm
Working spindle (40% ED, S6) 50,000 (HSK-E32) / 8.5 / 3.4 rpm/kW/Nm
Pallet/clamping surface GPS 120
ITS 148
Macro Magnum 156
Macro 54
Max. load (incl. pallet) 8 kg
17.64 lbs
Tool magazine 30/60/150 (HSK-E32)
Machine weight 3,600 kg
7,936 lbs
Control unit TNC 640 (Heidenhain)



Technical drawings

MILL S/X 400 U

Main specifications
Main specifications
Travel X,Y,Z
500 x 450 x 360 mm
19.68 x 17.72 x 14.17 in
Swiveling range +110°
-110°
Rotary range n x 360°
Rapid traverse X,Y,Z 61 m/min (MILL S)
2,401 in/min
100 m/min (MILL X)
3,937 in/min
Rapid traverse: Swiveling / Rotating 165 / 250 rpm
Working spindle (40% ED, S6) 30,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
Pallet/clamping surface MacroMagnum 156
ITS 148
Max. load (incl. pallet) 25 kg
55 lbs
Tool magazine 18/36/68/168 (HSK-E40)
Machine weight 7,000 kg
15,432 lbs
Control unit TNC 640 (Heidenhain)



Technical drawings

MILL S/X 600 U

Main specifications
Main specifications
Travel X,Y,Z
800 x 600 x 500 mm
31.5 x 23.62 x 19.68 in
Swiveling range +30°
-110°
Rotary range n x 360°
Rapid traverse X,Y,Z 61 m/min (MILL S)
2,401 in/min
100 m/min (MILL X)
3,937 in/min
Rapid traverse: Swiveling / Rotating 60 / 150 rpm
Working spindle (40% ED, S6) 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
36,000 (HSK-E50) / 33 / 21 rpm/kW/Nm
Pallet/clamping surface Dynafix 280 x 280/350 x 350
GPS 240 x 240
UPC 320 x 320
Max. load (incl. pallet) 120 kg
264 lbs
Tool magazine 18/36/68/168 (HSK-E40)
15/30/60/120/170/220 (HSK-E50)
Machine weight 9,900 kg
21,825 lbs
Control unit TNC 640 (Heidenhain)



Technical drawings
