Dynamic

Answer growing part complexity, precision and cycle time demands with a five-axis strategy. Get the ideal combination of linear, rotating and swiveling axes and shorten your production time with direct Milling in one clamping operation as a substitute for other process steps. Profit from perfect surface quality and precision due to single-clamping production and perfectly aligned five-axis kinematics.

Precision and high surface quality

Perfect machine design with highest mechanical requirements provides the basis for high surface quality and repeatability. The reliable Step-Tec Spindle and linear motors in combination with Ambient Robust technology always ensure high surface quality on parts. Master the challenges of a wide range of applications and short-term market requirements while maintaining high accuracy.

Iconic ergonomics and design

The Mikron MILL S/X U series is very well-known on the market for its ideal ergonomics and fit in customers’ workshops. The ideal machine design allows perfect machine setup and accessibility. Increase your return on investment (ROI) through perfect machine-robot connectivity and scalability.

MILL S/X 400 U – MILL S/X 600 U

100% precision right on time and process

With Automated Machine Calibration (AMC) as standard, the machine geometry can be calibrated at any time within minutes by any operator. The powerful cooling of all machine components will keep your process stable.

+45% reduction of tool center point drift

The Ambient Robust technology enables constant stabilization of the machine body temperature. Minimal movement of machine geometry will result in lowest possible drift of the tool center point.

+40% higher speed for more competitiveness

The strong linear motors capable of a speed up to 100m/min position you ahead of your competition. Reduce your cost per part thanks to higher machine dynamics.

24-h billable autonomy

Discover integrated Automation with GF Machining Solutions' most compact pallet changer. This solution is prepared for third-party automation with robot interface. Even with automation, access to the working area is always ensured.



Applications

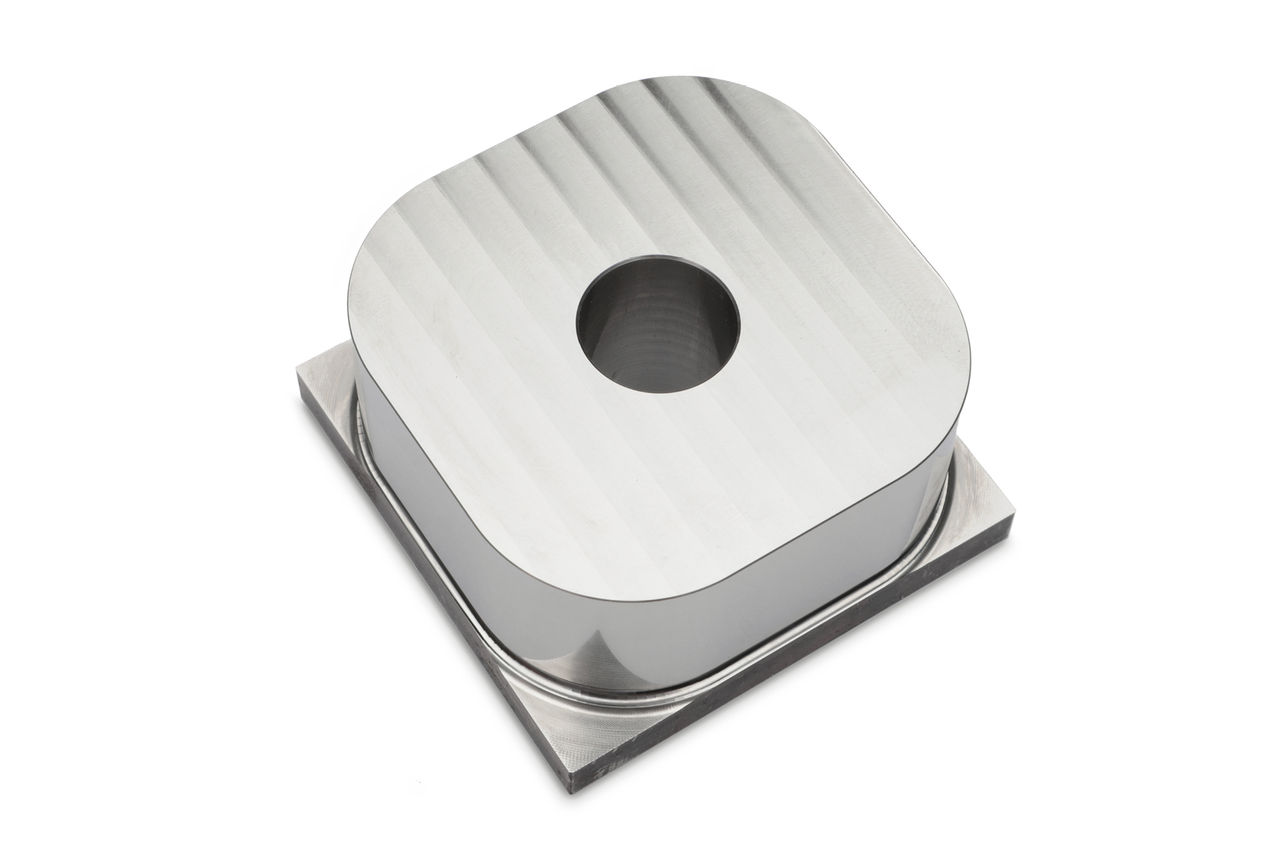

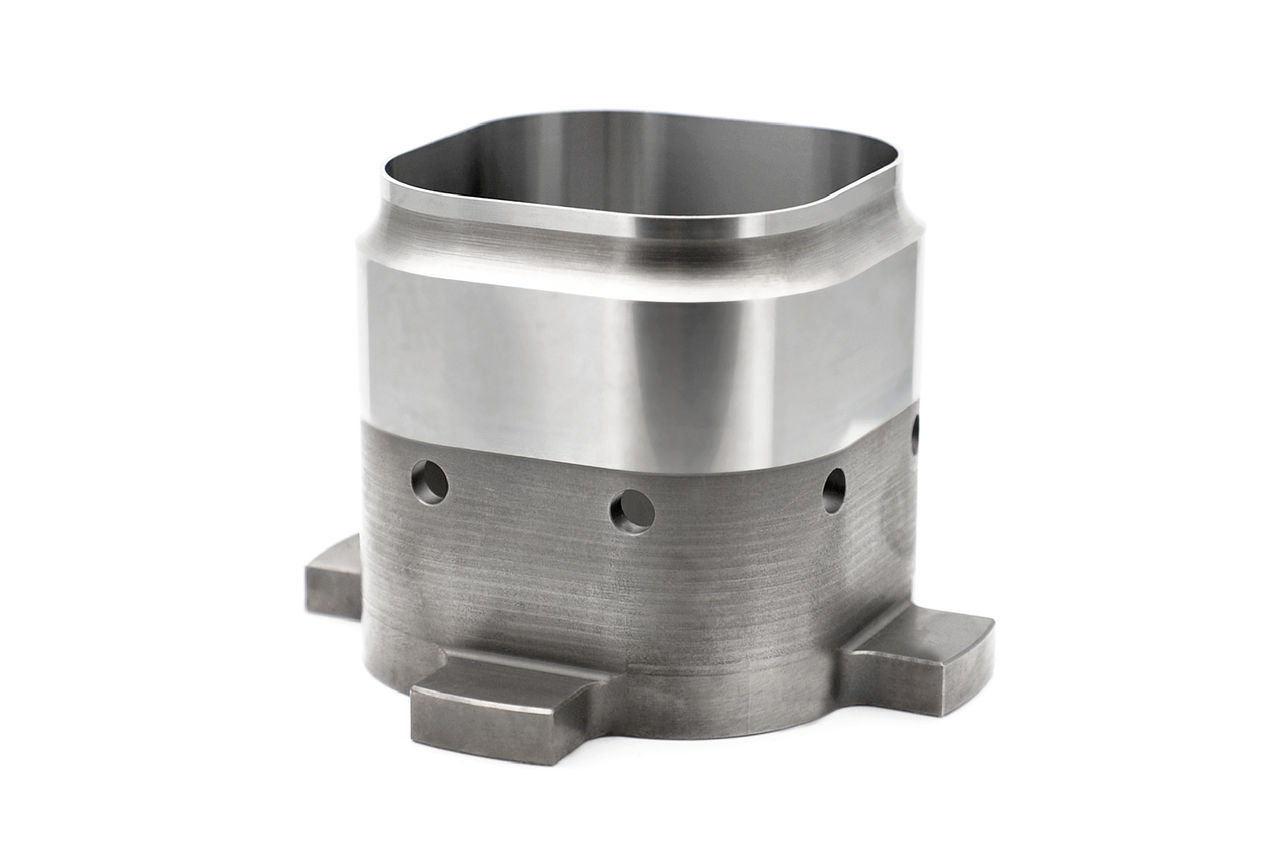

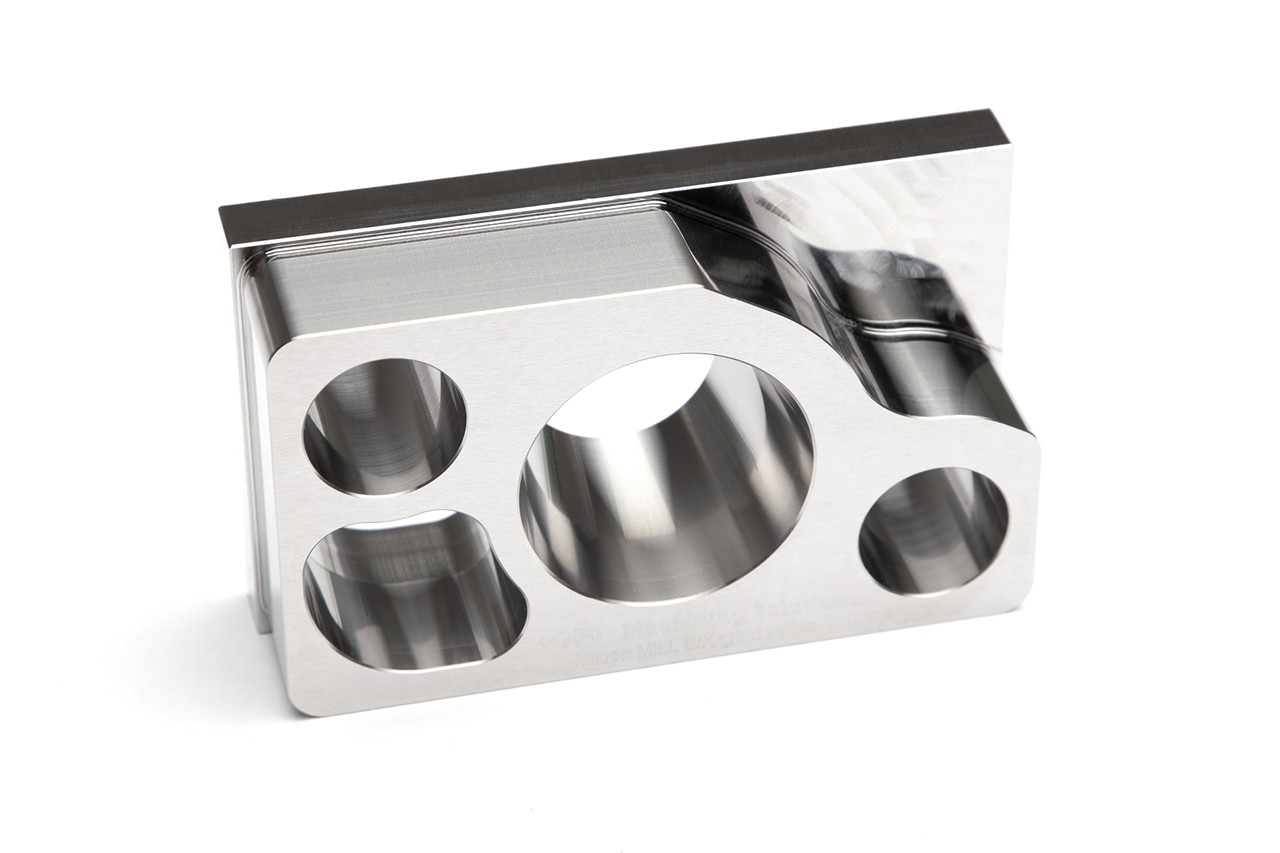

Jig grinding

Secure and reduce your manufacturing process for optimal surface quality with a single machine



Mikron MILL S/X U machines are able to combine Milling and jig grinding on the same machine. The grinding setup into the machine has been well designed in order to maintain standard workpiece dimensions and clamping surface even for Automation. Nevertheless, the laser measuring system and the dressing spindle are located closer to the working area for a quick and fast grinding process. Through this two-in-one solution, GF Machining Solutions improves and significantly reduces customers’ manufacturing processes. The combination of milling and grinding technologies, extremely high machine dynamics, and consistent thermal stability and accuracy provide fast ROI and high-end, quality products.

Two-in-one solution

Combine Milling and jig grinding on a single machine to both reduce the part manufacturing process and increase surface quality. The closed grinding process (grinding + measuring) accelerates your time to market.

Monitor your process

Dressing spindle is equipped with an acoustic emission (AE) sensor to track and visualize on the Heidenhain control the signal during tool dressing. The machine can be equipped with an additional AE sensor to track grinding operations in order to further optimize the process.

Three- or five-axis grinding process

Thanks to the Mikron MILL S/X U series extend your business opportunity by combining milling and grinding process on the same machine in three- or five-axis simultaneous. Get easily a surface quality of < Ra 0.06 µm

Stable grinding process

Easily and significantly increase surface quality on parts with the closed grinding process (grinding/dressing/measuring) and the monitoring through the AE sensors.

Maximize your potential

Mikron MILL S/X (U) series machines are Automation ready and the grinding option does not impact standard workpiece dimensions or the standard pallet changer. Get automated parts changing to increase your production output while achieving 3 µm machining accuracy and less than 0.06 µm surface roughness.



Specifications

MILL S/X 400 U
Main specifications
Travel X,Y,Z
500 x 240 x 360 mm
19.68 x 17.72 x 14.17 in
Swiveling axis +110°/-110°
Rotary axis n x 360°
Rapid traverse X,Y,Z 61 m/min (MILL S)
2.4 in/min
100 m/min (MILL X)
3.94 in/min
Rapid traverse: Swiveling / Rotating 165 / 250 rpm
Working spindle (40% ED, S6) 30,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
Pallet/clamping surface MacroMagnum 156
ITS 148
Max. load (incl. pallet) 25 kg
55 lbs
Tool magazine (incl. pallet) 18/36/68/168 (HSK-E40)
Machine weight 7,000 kg
15,432 lbs
Control unit TNC 640 (Heidenhain)



Technical drawings

layout front
layout profile
layout mill s/x 400
layout max part rotation
MILL S/X 600 U
Main specifications
Travel X,Y,Z
800 x 600 x 500 mm
31.5 x 23.62 x 19.68 in
Swiveling axis +30°/-110°
Rotary axis n x 360°
Rapid traverse X,Y,Z 61 m/min (MILL S)
2.4 in/min
100 m/min (MILL X)
3.94 in/min
Rapid traverse: Swiveling / Rotating 60 / 150 rpm
Working spindle (40% ED, S6) 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
36,000 (HSK-E40) / 33 / 21 rpm/kW/Nm
Pallet/clamping surface Dynafix 280 x 280/350 x 350
UPC 320 x 320
Max. load (incl. pallet) 120 kg
264 lbs
Tool magazine (incl. pallet) 18/36/68/168 (HSK-E40)
15/30/60/120/170/220 (HSK-E50)
Machine weight 9,900 kg
21,825 lbs
Control unit TNC 640 (Heidenhain)



Technical drawings

layout front
layout profile
layout mill s/x 400
layout max part rotation
