Mikron MILL E Series

The vertical, three-axis Mikron MILL E 800 and Mikron MILL E 1200 sets standards in VMC category. Its value are robustness, compactness and user friendliness. The perfect harmonization of both machining performances and stability is the fruit of long development experience of our engineers. The results is efficient precision production equipment with an irreproachable operation in any situation.

MILL E 800 - MILL E 1200

Please accept all cookies to view the external content.

VCE 1400/1600/2000 Pro Series– Ideal efficient milling for parts up to 2 meters

Please accept all cookies to view the external content.

The affordable bestseller VCE 1400/1600/2000 Pro series ramp up you production of simple to complex molds, dies prototypes and singles parts up to 2 meters and 3 tones. Whether you're a job shop, mold and die maker, small to medium-sized operation, prototype manufacturer or producer of single parts, this reasonably priced bestseller delivers always the expected results and even more. Get s a stiff machine base and high-tech key components –along with CNC, Spindle and accuracy-supporting linear scales included –to drive your success. Experience easy set-up, excellent ergonomics, a choice of X travel from 1,400 to 2,000 mm to machine a wide variety of material and execute a vest variety of application.

Please accept all cookies to view the external content.

Specifications

MILL E 800

Main Specifications

Main Specifications

Travel X, Y, Z 850 x 600 x 600 mm
Feed rate X/Y/Z 15 m/min
Rapid feed rate X,Y / Z 40 m/min
Working table T-slot table 1050 x 600 mm
Table load 1000 kg
Working spindle 20'000 rpm - HSK-A63
16'000 rpm - HSK-A63 & ISO & BT40
12'000 rpm - ISO & BT40
Tool magazine 30 / 60 pockets
Footprint
Automation On request:
System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

MILL E 1200

Main Specifications

Main Specifications

Travel X, Y, Z 1250 x 600 x 600 mm
Feed rate X/Y/Z 15 m/min
Rapid feed rate X,Y / Z 40 m/min
Working table T-slot table 1450 x 600 mm
Table load 1500 kg
Working spindle 20'000 rpm - HSK-A63
16'000 rpm - HSK-A63 & ISO & BT40
12'000 rpm - ISO & BT40
Tool magazine 30 / 60 pockets
Footprint
Automation On request:
System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

VCE 600 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 600 x 500 x 540 mm
Feed rate X/Y/Z 40 m/min
Working table 700 x 500 mm
Table load 800 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
Tool magazine 24 / 40 pockets
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

VCE 800 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 800 x 500 x 540 mm
Feed rate X/Y/Z 40 m/min
Working table 910 x 500 mm
Table load 1100 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
Tool magazine 24 / 40 pockets
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

VCE 1000 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 1020 x 560 x 600 mm
Feed rate X/Y/Z 40 m/min
Working table 1000 x 560 mm
Table load 1350 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
Tool magazine 24 / 40 / 60 pockets
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

VCE 1200 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 1200 x 600 x 675 mm
Feed rate X/Y/Z 32 / 24 m/min
Working table 1220 x 620 mm
Table load 1700 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
Tool magazine 24 / 40 / 60 pockets
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

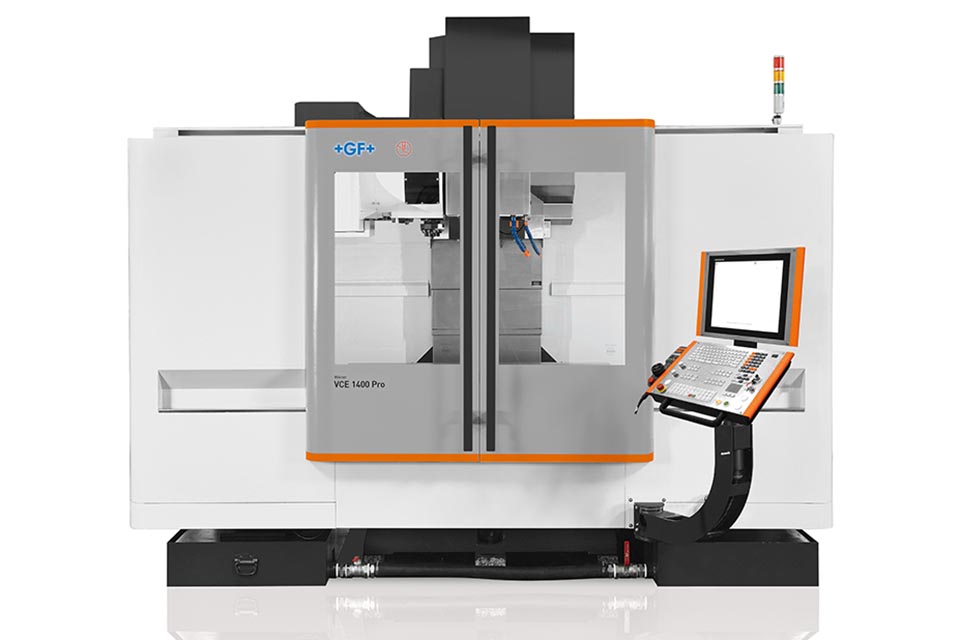

VCE 1400 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 1400 x 650 x 675 mm
Feed rate X/Y/Z 32 / 24 m/min
Working table 1400 x 620 mm
Table load 1700 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
Tool magazine 24 / 40 / 60 pockets
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

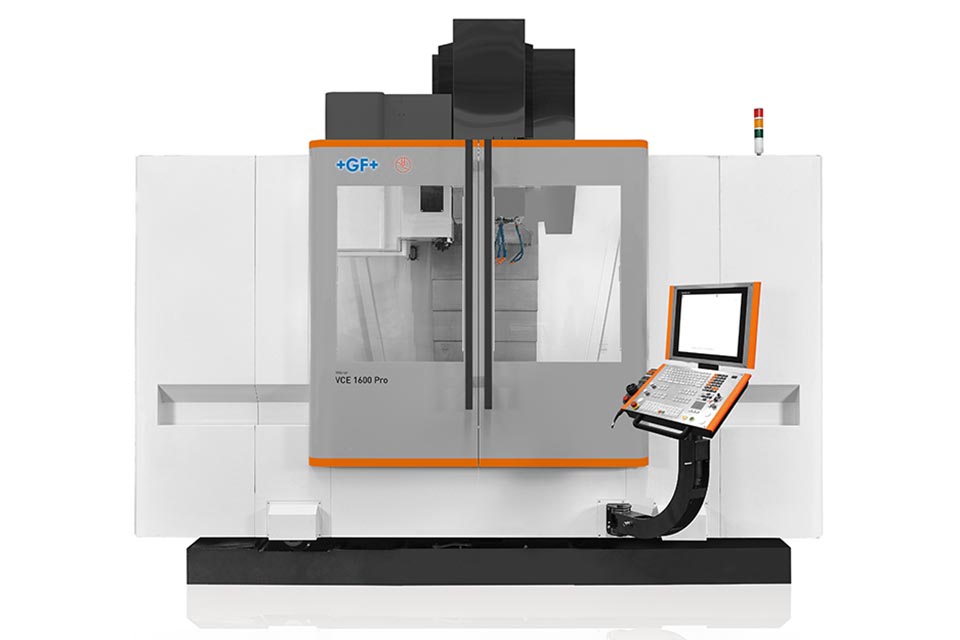

VCE 1600 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 1600 x 900 x 800 mm
Feed rate X/Y/Z 24 / 20 m/min
Working table 1700 x 850 mm
Table load 2000 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
6'000 rpm - ISO & BT50
Tool magazine 40 / 60 pockets - HSK-A63
30 / 40 / 60 pockets - ISO & BT40
24 / 40 pockets -  ISO & BT50
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

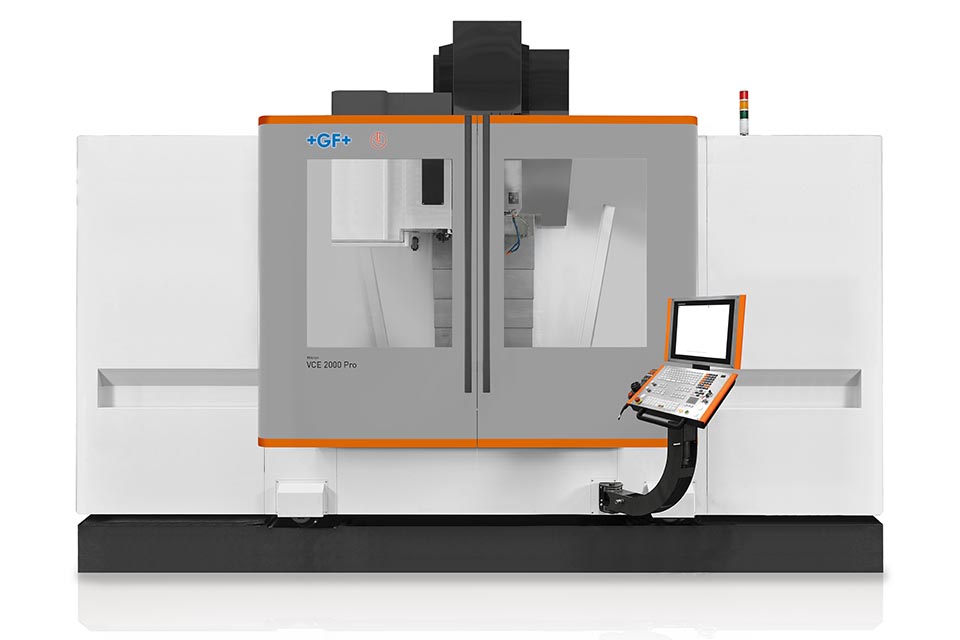

VCE 2000 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 2000 x 900 x 800 mm
Feed rate X/Y/Z 20 m/min
Working table 2100 x 850 mm
Table load 3000 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
6'000 rpm - ISO & BT50
Tool magazine 40 / 60 pockets -  HSK-A63
30 / 40 / 60 pockets - ISO & BT40
24 / 40 pockets -  ISO & BT50
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis
