Serie Mikron MILL E

I Mikron MILL E 800 e Mikron MILL E 1200, verticali a tre assi, stabiliscono degli standard nella categoria VMC. I suoi pregi sono robustezza, compattezza e facilità d'uso. La perfetta armonizzazione delle prestazioni di lavorazione e della stabilità è il frutto della lunga esperienza di sviluppo dei nostri ingegneri. Il risultato è un'efficiente attrezzatura di produzione di precisione con un funzionamento irreprensibile in ogni situazione.

MILL E 800 - MILL E 1200

Serie VCE 1400/1600/2000 Pro– Fresatura efficiente ideale per pezzi fino a 2 metri

La serie VCE 1400/1600/2000 Pro, bestseller e conveniente, aumenta la produzione di stampi semplici o complessi, prototipi di matrici e pezzi singoli fino a 2 metri e 3 toni. Che si tratti di un’officina, un produttore di stampi e matrici, un’azienda di piccole e medie dimensioni, un produttore di prototipi o un produttore di pezzi singoli, questo bestseller dal prezzo ragionevole offre sempre i risultati attesi e molto altro ancora. Ottenete una piastra della macchina rigida e componenti chiave high-tech, insieme a CNC, mandrino e scale lineari di supporto della precisione incluse, per promuovere il vostro successo. Provate la facilità di configurazione, l’eccellente ergonomia, una scelta di corsa X da 1.400 a 2.000 mm per lavorare un’ampia varietà di materiali ed eseguire una notevole varietà di applicazioni.

Specifiche

MILL E 800

Main Specifications

Main Specifications

Travel X, Y, Z 850 x 600 x 600 mm
Feed rate X/Y/Z 15 m/min
Rapid feed rate X,Y / Z 40 m/min
Working table T-slot table 1050 x 600 mm
Table load 1000 kg
Working spindle 20'000 rpm - HSK-A63
16'000 rpm - HSK-A63 & ISO & BT40
12'000 rpm - ISO & BT40
Tool magazine 30 / 60 pockets
Footprint
Automation On request:
System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

MILL E 1200

Main Specifications

Main Specifications

Travel X, Y, Z 1250 x 600 x 600 mm
Feed rate X/Y/Z 15 m/min
Rapid feed rate X,Y / Z 40 m/min
Working table T-slot table 1450 x 600 mm
Table load 1500 kg
Working spindle 20'000 rpm - HSK-A63
16'000 rpm - HSK-A63 & ISO & BT40
12'000 rpm - ISO & BT40
Tool magazine 30 / 60 pockets
Footprint
Automation On request:
System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

VCE 600 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 600 x 500 x 540 mm
Feed rate X/Y/Z 40 m/min
Working table 700 x 500 mm
Table load 800 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
Tool magazine 24 / 40 pockets
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

VCE 800 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 800 x 500 x 540 mm
Feed rate X/Y/Z 40 m/min
Working table 910 x 500 mm
Table load 1100 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
Tool magazine 24 / 40 pockets
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

VCE 1000 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 1020 x 560 x 600 mm
Feed rate X/Y/Z 40 m/min
Working table 1000 x 560 mm
Table load 1350 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
Tool magazine 24 / 40 / 60 pockets
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

VCE 1200 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 1200 x 600 x 675 mm
Feed rate X/Y/Z 32 / 24 m/min
Working table 1220 x 620 mm
Table load 1700 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
Tool magazine 24 / 40 / 60 pockets
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

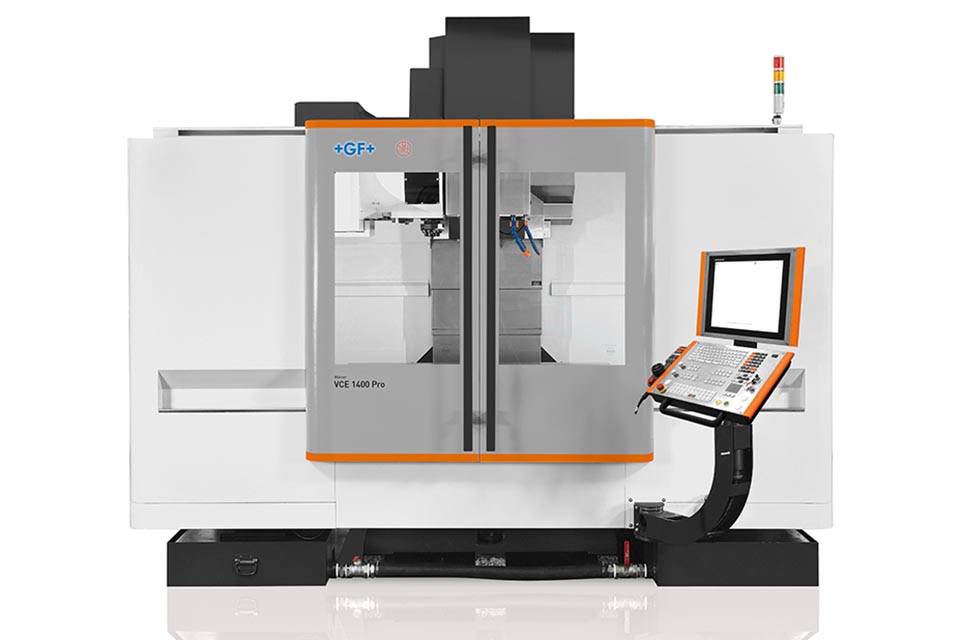

VCE 1400 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 1400 x 650 x 675 mm
Feed rate X/Y/Z 32 / 24 m/min
Working table 1400 x 620 mm
Table load 1700 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
Tool magazine 24 / 40 / 60 pockets
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

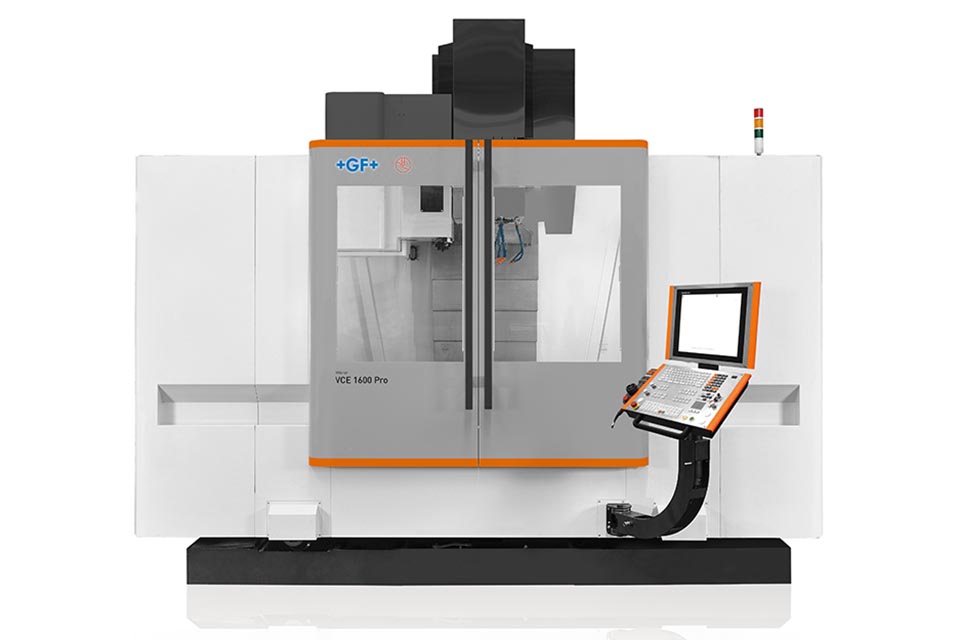

VCE 1600 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 1600 x 900 x 800 mm
Feed rate X/Y/Z 24 / 20 m/min
Working table 1700 x 850 mm
Table load 2000 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
6'000 rpm - ISO & BT50
Tool magazine 40 / 60 pockets - HSK-A63
30 / 40 / 60 pockets - ISO & BT40
24 / 40 pockets -  ISO & BT50
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis

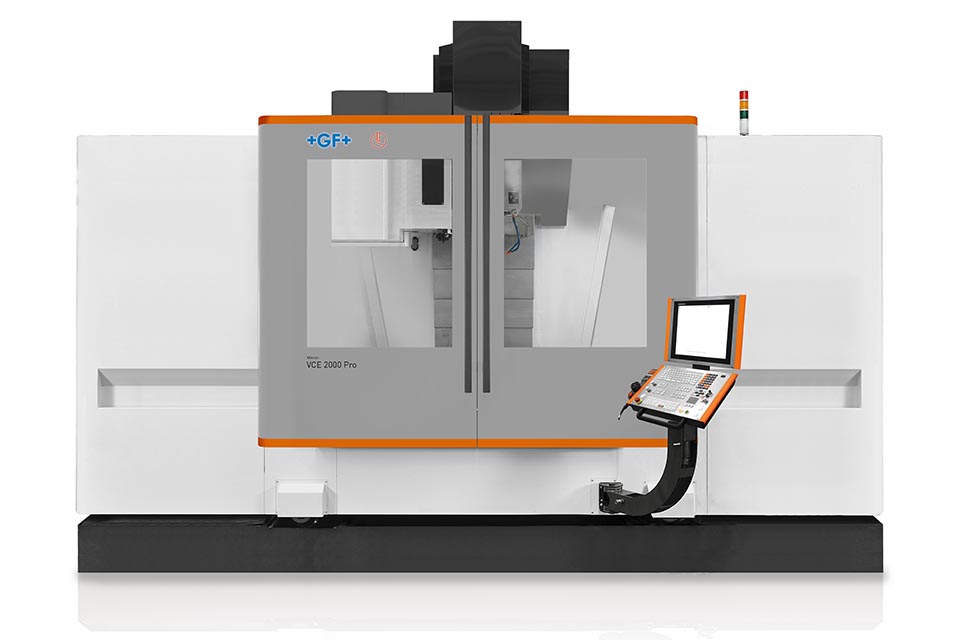

VCE 2000 Pro

Main Specifications

Main Specifications

Travel X, Y, Z 2000 x 900 x 800 mm
Feed rate X/Y/Z 20 m/min
Working table 2100 x 850 mm
Table load 3000 kg
Working spindle 16'000 rpm - HSK-A63 / ISO & BT 40
10'000 rpm - ISO & BT40
6'000 rpm - ISO & BT50
Tool magazine 40 / 60 pockets -  HSK-A63
30 / 40 / 60 pockets - ISO & BT40
24 / 40 pockets -  ISO & BT50
Footprint
Automation System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis
