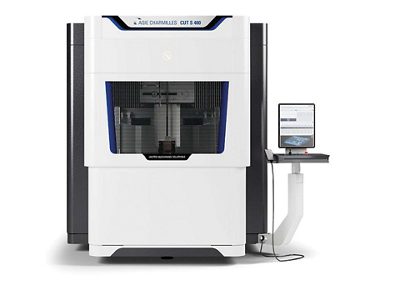

Achieve unparalleled accuracy and efficiency with our new, standard-setting, superior precision CUT S 400/600/800 wire-cutting Electrical Discharge Machining (EDM) series. These machines are designed to deliver exceptional performance, reduce operational costs, and enhance productivity in high-precision manufacturing.

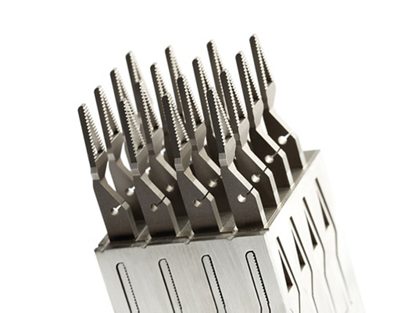

Achieve stable pitch accuracy on both micro and large parts with our Intelligent Power Generator featuring Direct Power Supply (IPG-DPS), Thermocompensation, symmetrical mechanical design, and an advanced axis measurement system.

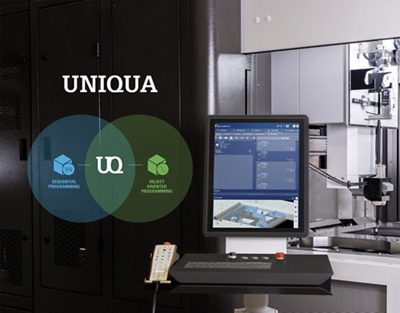

Achieve ultraprecise results with UNIQUA’s intuitive interface, dynamic/ISO programming, real-time monitoring, high-precision anti-collision, and Spark Track with ISPS and iWire.

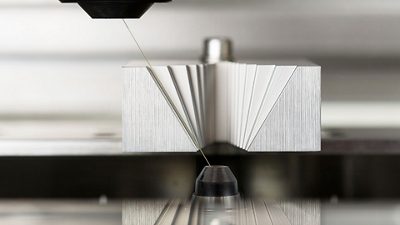

Position your team for limitless taper machining. Our new TETRAX mechanical design with full U, V, and Z axis travel vastly expands your taper machining capabilities
Right out of the box, you’re ready for automation due to our symmetrical TETRAX mechanical design allowing two-sided access to the table and left or right configurability for maintenance-related accessibility. Compactness optimizes the machine’s footprint.
Please accept all cookies to view the external content.

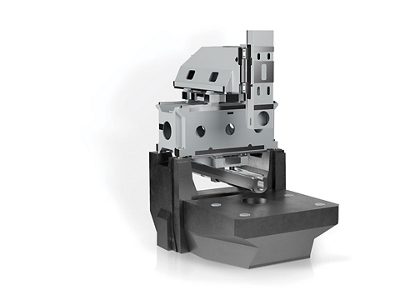

New TETRAX frame design: precision without limits
Unlock full machining potential with unlimited taper, full Z-axis travel, and micron-level precision. TETRAX redefines automation, flexibility, and accessibility. Master complexity. Eliminate limits.
Smart cutting and intelligent process control
Elevate EDM with precision, uptime, and speed—thanks to Intelligent Power Generator, Spark Track, and Turbo Tech. Backed by 600+ technologies and 55+ plug-and-play wires for unmatched efficiency
Precision perfected — Safe, stable, and thermally controlled
Precision under pressure. Collision protection, thermal compensation, and a rigid monobloc table ensure accuracy in any condition. A sealed cabinet maintains thermal stability for consistent, repeatable results
Please accept all cookies to view the external content.
TETRAX unlocks full-axis freedom - eliminating taper and height limits. With 600+ technologies and closed diamond wire guides, it delivers unmatched precision, smooth threading or rethreading and reliability
Please accept all cookies to view the external content.

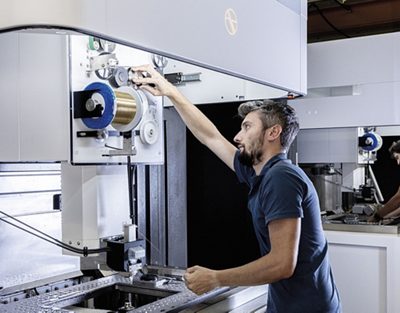

Fast front-end installation, large 25 kg spools option for extended autonomy, and RFID-enabled Smart Wire for automatic recognition and traceability. Less downtime, smoother workflow, and more time machining.
Program with ease using ISO or dynamic UNIQUA modes. Cut precisely with Dynamic Corner Control, reducing post-processing. EDM-EXPERT optimizes settings automatically for any material, boosting uptime and confidence
Machine is designed for smooth upkeep. A screw fixation system simplifies head maintenance, quick-change filters reduce effort, and automatic greasing keeps components running longer. Less manual work means more uptime and productivity

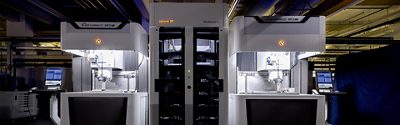

Automation begins with TETRAX: a compact, symmetrical design enabling two-sided access and full automation from day one.
OPC UA connectivity ensures seamless smart factory integration. Key features - Automatic Slug Welding, Wire Threading, and integrated wire chopper - eliminate manual tasks, minimize downtime, and boost precision-driven productivity.
Please accept all cookies to view the external content.
| Main specifications | CUT S 400 | CUT S 600 | CUT S 800 |
|---|---|---|---|
| Dimensions | 2060 x 2920 x 2345 mm 81.1 x 114.96 x 92.33 in |
2200 x 3500 x 2490 mm 86.61 x 137.8 x 98.03 in |
2670 x 3100 x 2950 mm 105.2 x 122.1 x 116.15 in |
| Part dimensions | 800 x 600 x 250 mm 31.5 x 23.62 x 9.84 in |
1000 x 700 x 350 mm 39.37 x 27.56 x 13.78 in |
1350 x 1000 x 510 mm 53.15 x 39.37 x 20.08 in |
| Max Part Weight | 1000 Kg 2204 lbs |
1500 Kg 2205 lbs |
3000 Kg 6613 lbs |
| Axes Travel XYZ | 405 x 315 x 256 mm 15.94 x 12.4 x 10.07 in |
605 x 405 x 356 mm 23.62 x 15.75 x 13.78 in |
800 x 600 x 510 mm 31.5 x 23.62 x 20.08 in |
| U,V Travel | 500 x 350 mm 19.68 x 13.78 in |
700 x 450 mm 27.56 x 17.71 in |
800 x 600 mm 31.5 x 23.62 in |
| Taper Angle/Height | ± 30/256 mm (45° optional) ± 30/10.07 in (45° optional) |
± 30/356 mm (45° optional) ± 30/13.78 in (45° optional) |
± 30/510 mm (45° optional) ± 30/20.08 in (45° optional) |
| Wire Guide (Standard) | Ø0.20 or 0.25 mm 0.008 or 0.0100 in |
||
| Wire Guides (Optional) | Ø0.05 - 0.3 mm 0.002 - 0.012 in |
||
| Best Ra | 0.08 µm | ||
