Mikron MILL S/X 系列

動態、精準,完美表面加工
用最具代表性、精巧的機器以最高生產效率在模具和零件加工生產上實現高動態、精度和表面粗糙度。MILL S/X 系列機器具有優化的溫度控制系統和可輕鬆整合自動化是尋求優化製程的客戶的最佳選擇。

MILL X 400 – MILL S 500/600/800


產品應用

Jig 研磨功能

使用單一機器確保並降低製造程序,以獲得最佳表面品質

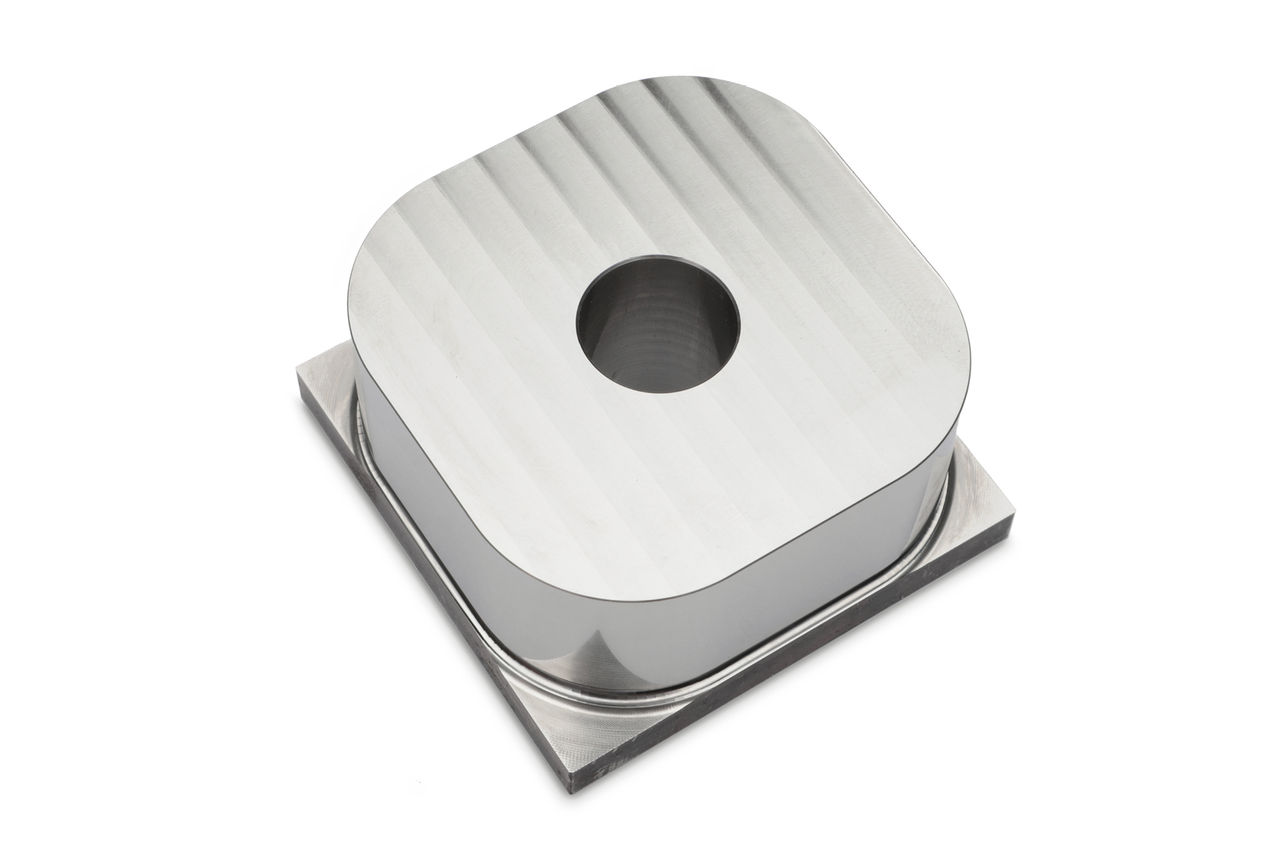

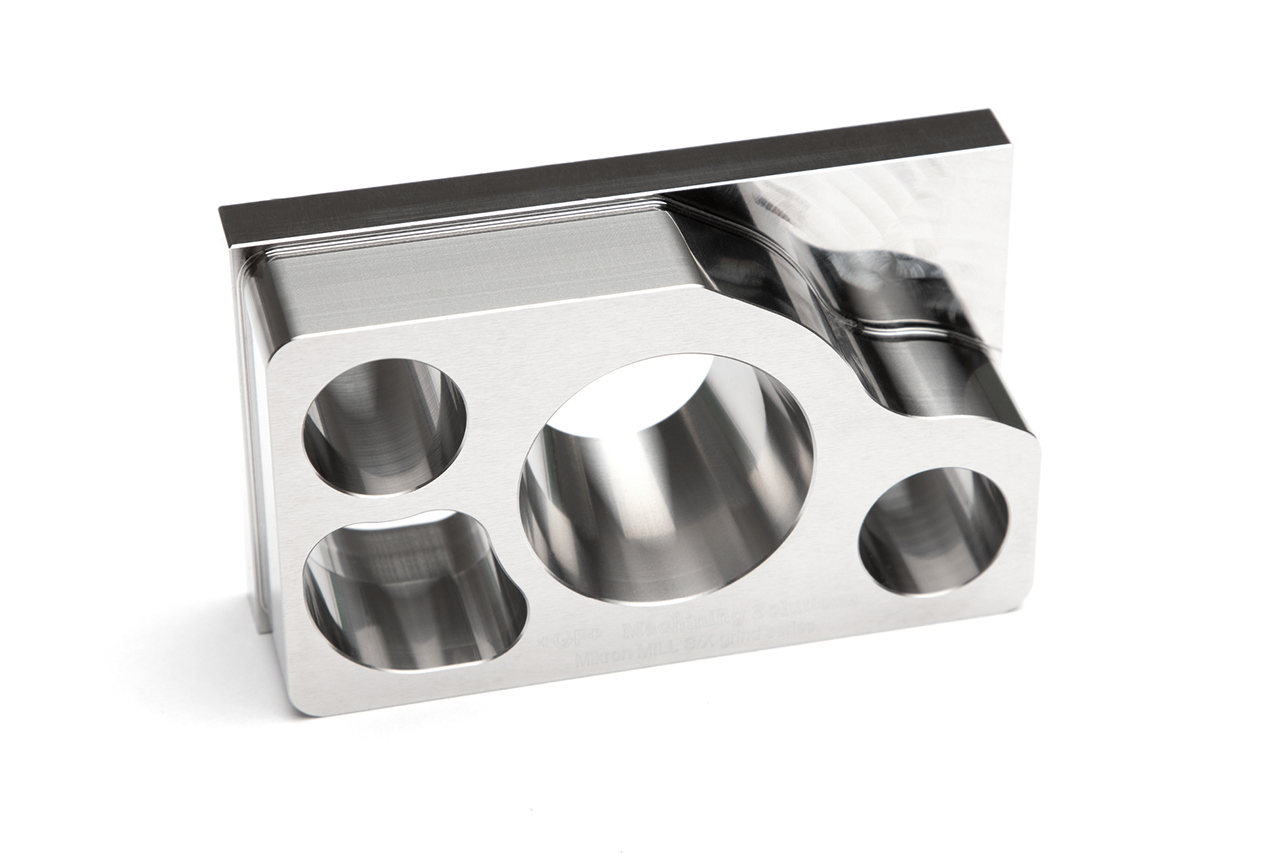

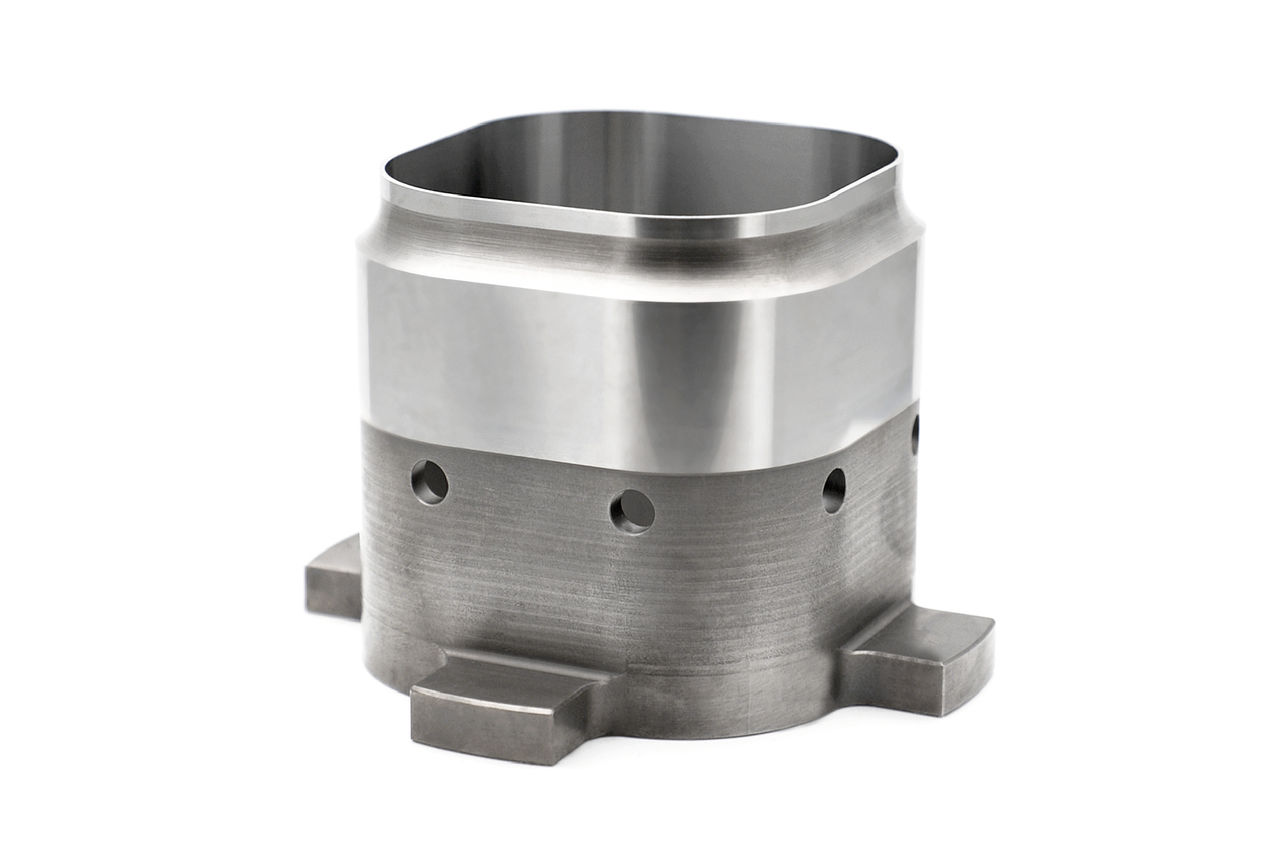

Mikron MILL S/X 機器可將銑削和研磨結合在機上。經過精心設計的機器研磨設置,即使是自動化也能維持標準工件尺寸和夾持表面。然而,雷射測量系統和修整主軸的設置更接近工作區域,可快速完成研磨加工。GF Machining Solutions 透過此合二為一的解決方案,改善並大幅縮短客戶的製程。結合銑削和研磨技術、極高的機器動態以及一致的熱穩定性和精度,提供快速的投資回報和高端、優質的產品。


規格

MILL X 400

Main specifications
Main specifications
Travel X,Y,Z
500 x 450 x 360 mm
19.68 x 17.72 x 14.17 in
Rapid traverse X,Y,Z 100 m/min
3,937 in/min
Working spindle (40% ED, S6) 30,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
Pallet/clamping surface Dynafix 280 x 280/350 x 350
UPC 320 x 320
Max. load (incl. pallet) 120 kg
264 lbs
Tool magazine 18/36/68/168 (HSK-E40)
Machine weight 6,800 kg
14,991 lbs
Control unit TNC 640 (Heidenhain)



技術視圖

MILL S 500

Main specifications
Main specifications
Travel X,Y,Z
500 x 450 x 360 mm
19.68 x 17.72 x 14.17 in
Rapid traverse X,Y,Z 61 m/min
2,401 in/min
Working spindle (40% ED, S6) 30,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
Work table 590 x 450 mm
23.23 x 17.72 in
Max. load (incl. pallet) 200 kg
441 lbs
Tool magazine 18/36/68/168 (HSK-E40)
Machine weight 6,800 kg
14,991 lbs
Control unit TNC 640 (Heidenhain)



技術視圖

MILL S 600

Main specifications
Main specifications
Travel X,Y,Z
600 x 600 x 500 mm
23.62 x 23.62 x 19.68 in
Rapid traverse X,Y,Z 61 m/min
2,401 in/min
Working spindle (40% ED, S6) 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
36,000 (HSK-E50) / 33 / 21 rpm/kW/Nm
Work table 900 x 600 mm
35.43 x 23.62 in
Pallet/clamping surface 800 x 600 mm
31.5 x 23.62 in
Max. load (incl. pallet) 500 kg
1102 lbs
Tool magazine 18/36/68/168 (HSK-E40)
15/30/60/120/170/220 (HSK-E50)
Machine weight 9,900 kg
21,825 lbs
Control unit TNC 640 (Heidenhain)



技術視圖

MILL S 800

Main specifications
Main specifications
Travel X,Y,Z
800 x 600 x 500 mm
31.5 x 23.62 x 19.68 in
Rapid traverse X,Y,Z 61 m/min
2,401 in/min
Working spindle (40% ED, S6) 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
36,000 (HSK-E50) / 33 / 21 rpm/kW/Nm
Work table 900 x 600 mm
35.43 x 23.62 in
Pallet/clamping surface 800 x 600 mm
31.5 x 23.62 in
Max. load (incl. pallet) 1000 kg
2204 lbs
Tool magazine 18/36/68/168 (HSK-E40)
15/30/60/120/170/220 (HSK-E50)
Machine weight 9,900 kg
21,825 lbs
Control unit TNC 640 (Heidenhain)



技術視圖
