DMP Flex/Factory 350

可全天候進行零件生產的堅固且靈活的金屬 3D 印表機

DMP Flex 350 能夠更高效地生產非常緻密的純金屬零件,該設備採用了經過改善的氣流技術,從而提高整個成形區域的零件品質。這是一種靈活、高產量、高可重複性金屬 3D 印表機,可以用最具挑戰性的合金生產出高品質的精密零件,最大零件尺寸為 275 x 275 x 420 公釐。

DMP FLEX 350

DMP FACTORY 350

確保最高安全性與粉末完整性

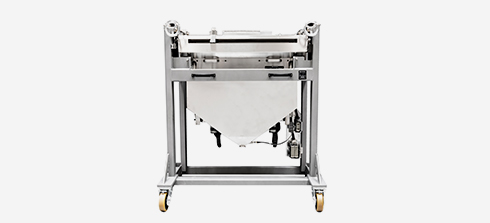

DMP Factory 350 具有整合式粉末管理系統,具有高效能篩分和自動化粉末輸送功能。粉末作業流程的無氧環境確保了最高零件品質以及最大粉末利用率,並最大程度地減少了使用者與粉末的接觸。


DMP Flex/Factory 350 特點





DMP Flex 350 特點

機器規格

DPM Flex/Factory 350

Main specifications

Main specifications

Machine dimensions 2370 x 2400 x 2869 mm (DMP Flex 350 in printing condition)
  2370 x 2400 x 3470 mm (DMP Factory 350 in printing condition)
Machine weight 4200 kg

Printing specifications

Printing specifications

Laser type 1 or 2 x 500 W / Fiber laser
Laser wavelength 1070 nm
Layer thickness, range, preset Adjustable, min. 5 μm, typical: 30, 60, 90 μm
Build envelope 275 x 275 x 420 mm (height inclusive of build plate)
Material deposition Soft blade recoater
Minimum feature size
200 μm
Minimum wall thickness
150 μm
Accuracy
± 0.1-0.2% with ± 100 μm minimum
Repeatability (related to actual printed jobs)
Δx (3σ) = 60 μm, Δy (3σ) = 60 μm, Δz (3σ) = 60 μm

Materials

Materials

LaserForm Ni718, LaserForm Ni615, LaserForm Ti Gr23,  LaserForm Ti Gr5,  LaserForm Ti Gr1,  LaserForm AlSi10Mg, LaserForm  AlSi7Mg0.6, LaserForm CoCrF75, LaserForm 316L, LaserForm 17-4PH, LaserForm Managing Steel, AMPO M789, Certified Tungsten, Aluminum A6061
