DMP Flex/Factory 350

7/24 parça üretimi için sağlam, esnek metal 3D yazıcı

DMP Flex 350, çok yoğun, saf metal parçaların daha verimli üretimini mümkün kılar ve tüm yapım alanında gelişmiş tek tip parça kalitesi için geliştirilmiş gaz akış teknolojisi içerir. En zorlu alaşımlardan maksimum 275 x 275 x 420 mm parça boyutu ile yüksek kaliteli parçalar üreten esnek, yüksek verime, yüksek tekrarlanabilirliğe sahip metal 3D yazıcı.

DMP Flex 350

Available materials 24 Available materials 24

Available Materials

Ready-to-run metal alloys with thoroughly tested build parameters (Inconel, Titanium, Cobalt Chrome, Aluminium, Steel).

Build envelope xzy Build envelope xzy

Build envelope size

Print large and high metal parts with our middle-size printer (*275x275x420*mm (XYZ) or 350x350x350mm (XYZ), height inclusive of build plate).

O₂ level in the build chamber

Guarantees consistent powder quality for high quality parts.

All-in-one parametric software

3DXpert® streamlines your process to quickly and efficiently transition from a 3D model to a successfully printed part.

DMP Factory 350

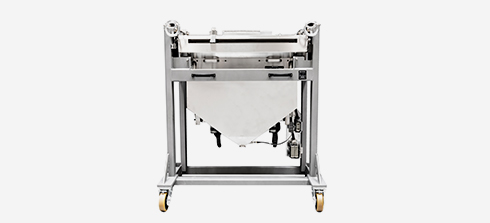

Maksimum güvenlik ve toz bütünlüğü sağlayın

DMP Factory 350, yüksek performanslı eleme ve otomatik toz taşıma özelliğine sahip entegre bir toz yönetim sistemine sahiptir. Toz iş akışının O2 içermeyen atmosferi, en yüksek parça kalitesinin yanı sıra maksimum toz kullanımını garanti eder ve kullanıcının toz temasını en aza indirir.


DMP Flex/Factory 350 features

vacuum-chamber

Unique vacuum chamber concept

Consistent, low O2 environment

Reduce your cost to part by avoiding non-quality scrap issues and get access to higher-margin regulated markets like aerospace and medical, where constant quality is a requirement for certified parts. Discover these benefits, thanks to our consistently low 02 environment in the printer to guarantee consistent powder quality for high-quality parts.

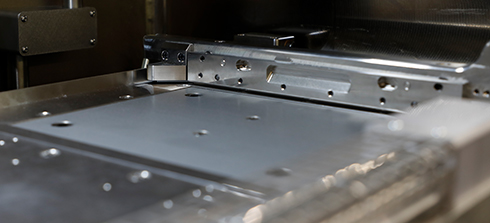

Bi-directional recoating

Boost your productivity

Accelerate your productivity to reduce your cost per part, thanks to our high-performance, bidirectional recoating system that consistently and accurately deposits a fresh powder layer on each pass to reduce the time that the lasers are active.

bi-directional-recoater

monitoring

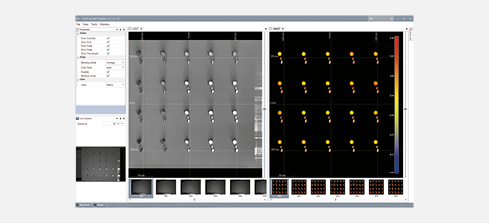

DMP Monitoring

Real-time process monitoring

DMP Monitoring allows users to see, analyze, understand and fine-tune their metal AM process with unprecedented capability. The DMP Monitoring toolset for enhanced quality control includes real-time process monitoring, synchronized images of the melt pool and powder bed, synchronized images of active and archived jobs for comparison, and a toolset for analyzing the magnitude of a subject area, enabling:

  • Real-time, in-build data collection and visualization
  • Post-build process analysis
  • Build parameter optimization

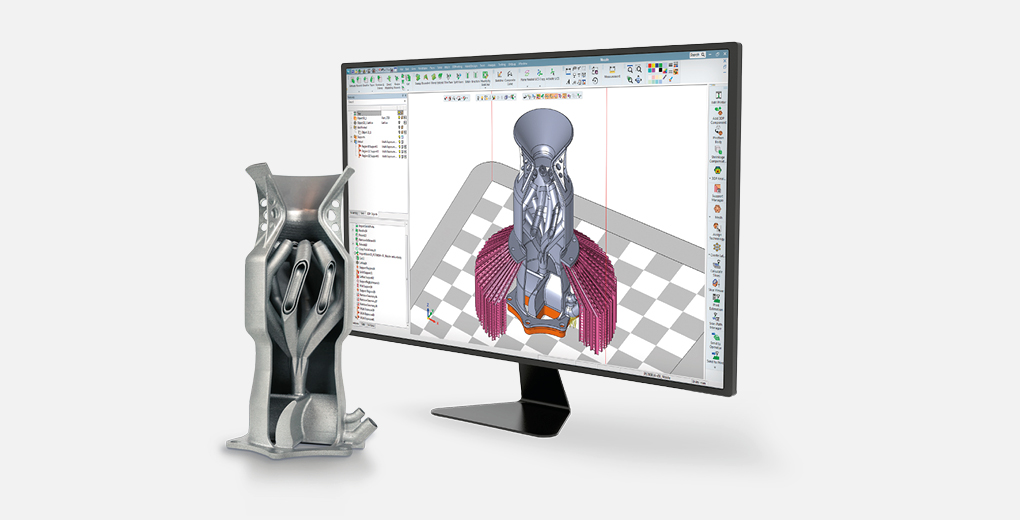

3DXpert

All-in-one integrated software for Additive Manufacturing

3DXpert is an all-in-one integrated software to prepare, optimize and manufacture 3D CAD models using additive manufacturing (AM). Supporting every step of the additive manufacturing workflow from design to post-processing, 3DXpert streamlines your process to quickly and efficiently transition from a 3D model to a successfully printed part.

3dxpert

DMP Flex 350 features

removable-print-module

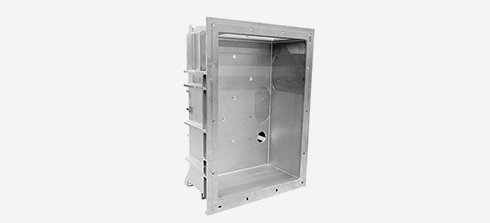

Removable print module

Increase your flexibility

Improve your flexibility and productivity with a Removable Print Module (RPM) that can be replaced with another RPM just after a job is finished. This also positively impacts the total cost of ownership because you can reduce downtime when switching from one material to another material by having one dedicated RPM per material.

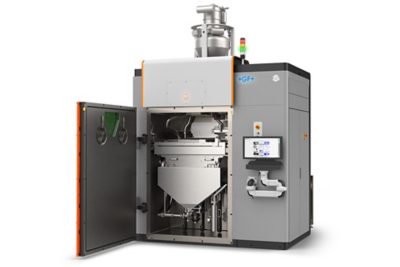

DMP Flex/Factory 350 Dual

DMP Flex 350 ve DMP Factory 350 sistemleri artık iki lazerli bir yapılandırmaya sahip olup üretim sürelerini yüzde 50'ye kadar kısaltmaktadır. Yüksek kaliteyi ve tekrarlanabilirliği korurken verimliliği artırarak işletme maliyetlerini düşürür.

New features

New Dual Laser (2x 500 W) configuration
Increases productivity and reduces costs

New pre-filter cyclone system
Decreases filter costs

New heated platform
Reduces risk cracking of specific building jobs

Enhanced Removable Print Module
Enables easy, fast and consistent calibration

Enhanced coater accuracy
Decreases machine-to-machine variability

Enhanced coater cutting tool
Decreases operator errors and machine-to-machine variability

New back powder tray on exhaust
Reduces loss of powder during cleaning

New Railroad UI in Operator mode
Reduced operator error

dmp-flex-350

DMP Flex 350 Triple

New features

Triple Laser (3x 500W) configuration
Increased productivity and reduced costs

3-axis scanning systems with dynamic focusing
Better accuracy and higher productivity on large build areas

Full field laser
It allows to build large seamless parts

Configurable 275x275x420mm or 350x350x350mm RPM build volume
Perfectly matching the specific application requirements

DMP-Flex-350-triple-open

Teknik özellikler

DPM Flex/Factory 350

Main specifications

Main specifications

Machine dimensions 2370 x 2400 x 2869 mm (DMP Flex 350 in printing condition)
  2370 x 2400 x 3470 mm (DMP Factory 350 in printing condition)
Machine weight 4200 kg

Printing specifications

Printing specifications

Laser type 1 or 2 or 3 x 500 W / Fiber laser
Laser wavelength 1070 nm
Layer thickness, range, preset Adjustable, min. 5 μm, typical: 30, 60, 90 μm
Build envelope

275 x 275 x 420 mm (height inclusive of build plate) – DMP 350 Single / Dual / Triple laser

350 x 350 x 350 mm (height inclusive of build plate)

Material deposition Soft blade recoater
Minimum feature size
200 μm
Minimum wall thickness
150 μm
Accuracy
± 0.1-0.2% with ± 100 μm minimum
Repeatability (related to actual printed jobs)
Δx (3σ) = 60 μm, Δy (3σ) = 60 μm, Δz (3σ) = 60 μm

Materials

Materials

Aluminum alloys: LaserForm AlSi7Mg0.6, LaserForm AlSi10Mg, Certified Al6061-RAM2, Certified Scalmalloy, Certified Aheadd CP1

Titanium alloys: LaserForm Ti Gr1, LaserForm Ti Gr5, LaserForm Ti Gr23

Steels: LaserForm 316L, LaserForm 17-4PH, LaserForm Maraging Steel, Certified Böhler M789

Cobalt-Chrome alloys: LaserForm CoCrF75

Nickel alloys: LaserForm Ni718, LaserForm Ni625, Certified HX, Certified GRX-810

Refractory metals: Certified Tungsten, Certified C-103

Copper alloys: Certified CuCr1Zr, Certified CuCr2.4, Certified CuNi30, Certified GRCop-42, Certified Pure Cu
