Ready for Delivery - Frezeleme

Dikey frezeleme makinelerinde uzmanlaşan ve müşteri odaklı bir yaklaşıma sahip olan GF Machining Solutions'ın Frezeleme portföyü, çeşitli parça karmaşıklıklarının işlenmesine olanak tanıyan üç ve beş eksenli makineleri içerir. Teslim edilmeye hazır olan Freze makinelerimizde neler bulacağınızı keşfedin!

Please accept all cookies to view the external content.

MILL S/X (U) series

MILL X 400
MILL X 400
MILL X 400
Pallet/clamping surface UPC 320 x 320
Control unit TNC 640 (Heidenhain)
Tool magazine 68x HSK-E40
Working spindle 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
Automation Pallet magazine 7x UPC
Availability Europe
MILL S 200 U
MILL S 200 U
MILL S 200 U
Pallet/clamping surface Macro 54 x 54
Control unit TNC 640 (Heidenhain)
Tool magazine 30x HSK-E32
Working spindle 50,000 (HSK-E32) / 8.5 / 3.4 rpm/kW/Nm
Automation Pallet magazine 20x Macro 54
Availability Europe

MILL P (U) series

MILL P 800 U
MILL P 800 U
MILL P 800 U
Pallet/clamping surface T-slots
Control unit TNC 640 (Heidenhain)
Tool magazine 30x  HSK-A63
Working spindle 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm
Automation
Availability Europe

MILL E (U) series

MILL E 800
MILL E 800
MILL E 800
Pallet/clamping surface T-slots
Control unit TNC 620 (Heidenhain)
Tool magazine 30x HSK-A63 / ISO 40
60x HSK-A63
Working spindle 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm
16,000 (ISO 40) / 28 / 115 rpm/kW/Nm

Automation Robot interface
Availability Europe
MILL E 1200
MILL E 1200
MILL E 1200
Pallet/clamping surface T-slots
Control unit TNC 620 (Heidenhain)
Tool magazine 30x ISO 40
60x HSK-A63
Working spindle 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm
16,000 (HSK-A63) / 28 / 115 rpm/kW/Nm
16'000 (ISO 40) / 28 / 115 rpm/kW/Nm
Automation
Availability Europe

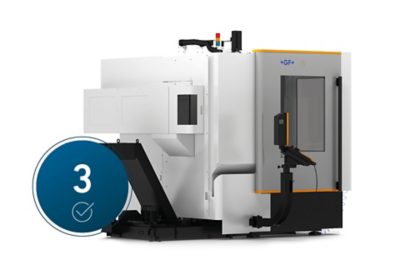

MILL E 700 U
MILL E 700 U
MILL E 700 U
Pallet/clamping surface T-slots
UPC 320 x 320
Control unit TNC 640 (Heidenhain)
Tool magazine 30x ISO 40
60x HSK-A63
Working spindle 12,000 (ISO 40) / 20 / 88 rpm/kW/Nm
20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm
Automation Robot interface
Availability Europe

VCE Pro series

VCE 600 Pro
VCE 600 Pro
VCE 600 Pro
Pallet/clamping surface T-slots
Control unit TNC 620 (Heidenhain)
Tool magazine 24x ISO 40
30x ISO 40
Working spindle 10,000 (ISO 40) / 18.5 / 149 rpm/kW/Nm
Automation
Availability Europe
VCE 800 Pro
VCE 800 Pro
Pallet/clamping surface T-slots
Control unit TNC 620 (Heidenhain)
Tool magazine 24x ISO 40

Working spindle 10,000 (ISO 40) / 18.5 / 149 rpm/kW/Nm
Automation
Availability Europe
VCE 1000 Pro
VCE 1000 Pro
VCE 1000 Pro
Pallet/clamping surface T-slots
Control unit TNC 620 (Heidenhain)
Tool magazine 24x HSK-A63
40x HSK-A63
Working spindle 16,000 (HSK-A63) / 14.75 / 94 rpm/kW/Nm
Automation
Availability Europe
VCE 1200 Pro
VCE 1200 Pro
VCE 1200 Pro
Pallet/clamping surface T-slots
Control unit TNC 620 (Heidenhain)
Tool magazine 40x ISO 40

Working spindle 10,000 (ISO 40) / 18.5 / 149 rpm/kW/Nm

Automation
Availability Europe
VCE 1400 Pro
VCE 1400 Pro
VCE 1400 Pro
Pallet/clamping surface T-slots
Control unit TNC 620 (Heidenhain)
Tool magazine 60x HSK-A63
Working spindle 16,000 (HSK-A63) / 14.75 / 94 rpm/kW/Nm
10,000 (ISO 40) / 18.5 / 149 rpm/kW/Nm
Automation
Availability Europe
VCE 1600 Pro
VCE 1600 Pro
VCE 1600 Pro
Pallet/clamping surface T-slots
Control unit TNC 620 (Heidenhain)
Tool magazine 24x ISO 50
Working spindle 6,000 (ISO 50) / 18 / 350 rpm/kW/Nm
Automation
Availability Europe
