Specializing in vertical milling machines and with a customer-oriented approach, MIKRON MILL's Milling portfolio includes machines in three and five axes, allowing the handling of various part complexities. Discover what you will find with our Milling machines that are ready to be delivered to you now!
Please accept all cookies to view the external content.

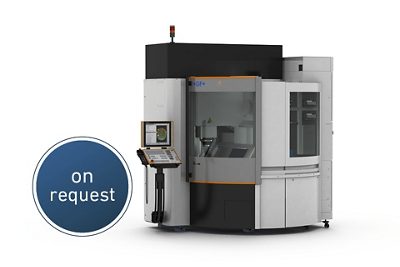

| MIKRON MILL X 400 | |
| Pallet/clamping surface | UPC 320 x 320 |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 68x HSK-E40 |
| Working spindle | 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm |
| Automation | Pallet magazine 7x UPC |
| Availability | United States |
| MIKRON MILL X 400 U | |
| Pallet/clamping surface | UPC 320 x 320 |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 68x HSK-E40 |
| Working spindle | 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm |
| Automation | WorkPartner1+ Interface |
| Availability | United States |

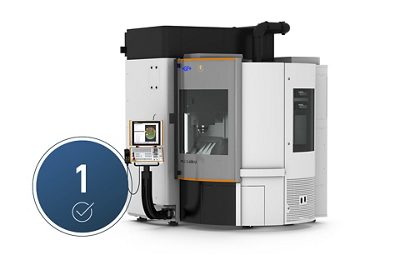

| MIKRON MILL S 600 U G | |
| Pallet/clamping surface | MacroMagnum |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 168x HSK-E40 |
| Working spindle | 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm |
| Automation | Robot Interface |
| Availability | United States |

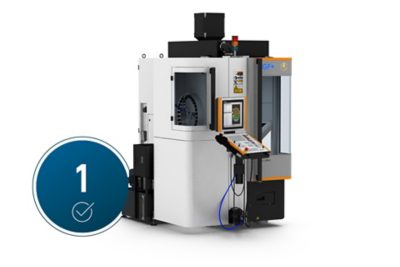

| MIKRON MILL S 200 U | |
| Pallet/clamping surface | 20x Macro 54 |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 60x HSK-E32 |
| Working spindle | 50,000 (HSK-E32) / 185 / 3.4 rpm/kW/Nm |
| Automation | |
| Availability | United States |

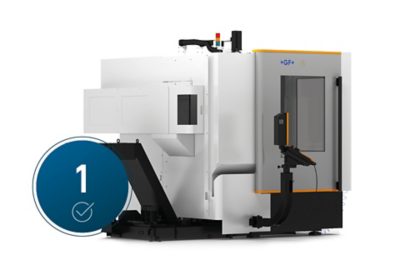

| MIKRON MILL E 700 U | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 60x HSK-A63 |
| Working spindle | 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm |
| Automation | Robot interface |
| Availability | Canada |

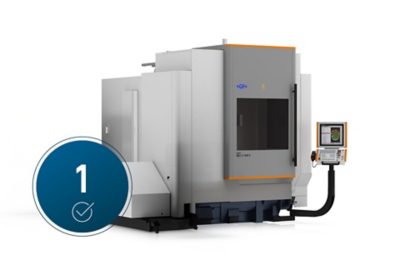

| MIKRON MILL E 1400 U | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 175x HSK-A100 |
| Working spindle | 10,000 (HSK-A100) / 34 / 324 rpm/kW/Nm |
| Automation | |
| Availability | United States |
| MIKRON MILL E 500 U | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 60x HSK-A63 |
| Working spindle | 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm |
| Automation | Robot interface |
| Availability | United States |
| MIKRON MILL E 700 U | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 60x HSK-A63 |
| Working spindle | 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm |
| Automation | |
| Availability | Mexico |
| MIKRON MILL E 1200 | |
| Pallet/clamping surface | T-slots |
| Control unit | TNC 640 (Heidenhain) |
| Tool magazine | 30x HSK-A63 |
| Working spindle | 16,000 (HSK-A63) / 14.75 / 94 rpm/kW/Nm |
| Automation | |
| Availability | Mexico |
