AgieCharmilles CUT P Pro Series

Precise, Consistent, Performant
With reliable mechanics, advanced technology features and a new HMI, the new CUT P PRO series delivers unmatched precision and performance for EDM application.

NEW

Discover the new HMI

Learn more

Please accept all cookies to view the external content.

Make your life easier

Reduce manual interventions and gain processing time with the Automatic Slug Welding (ASW) functionality for welding to the cavity to easily remove the core before finishing cuts and Automatic Slug Management (ASM) requiring no operator presence. Both functionalities reduce your operator’s presence in front of the machine.

Maintain workpiece-independent precision

Preserve stable accuracy during axis movement, thanks to the QUADRAX system. The workpiece does not move, the axes’ mass is constant, and the axes are independent. In addition, the base has a lower thermal conductivity and a vibration damping system.

Smart consumables

SMART wire spools are equipped with radio frequency identification (RFID) chips to store wire characteristics and traceability-related data. This feature equips the CUT P and makes it truly a smart solution! Improve your production process, achieve full traceability and share technical issues in an efficient manner.

Focus on performance and energy efficiency

With a reduction of 30% of the daily energy consumption compared to the previous generation, our new generation of Wire-Cutting machines is ready for the future. This important improvement is possible thanks to the smart module Econowatt during standby mode and to the latest generation of GF Machining Solutions’ Intelligent Power Generators (IPG) and to new injection pumps during operation.

CUT P 350 Pro / CUT P 550 Pro / CUT P 800 Pro / CUT P 1250 Pro

Please accept all cookies to view the external content.

AgieCharmilles CUT P 350 Pro
AgieCharmilles CUT P 350 Pro

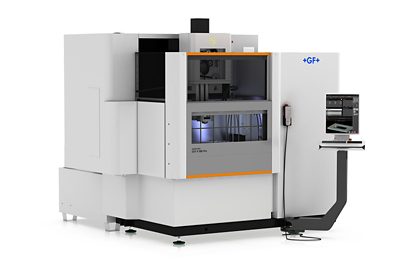

AgieCharmilles CUT P 550 Pro
AgieCharmilles CUT P 550 Pro

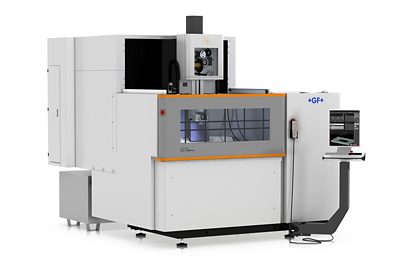

AgieCharmilles CUT P 800 Pro
AgieCharmilles CUT P 800 Pro

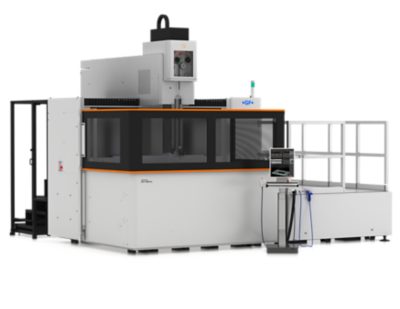

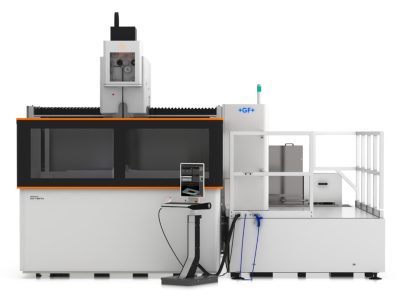

AgieCharmilles CUT P 1250 Pro AgieCharmilles CUT P 1250 Pro
AgieCharmilles CUT P 1250 Pro
Industry 4.0: Optimize your productivity and machine availability with SMART and connected solutions.
1/

Faster cutting speed

Achieve the quintessence of productivity with our latest-generation Intelligent Power Generator (IPG).

Cost per part

Reduce your cost per part and increase the number of parts produced with dedicated technologies for AC Cut VS+ wire.

Running costs

Reduce your running costs with our Eco machining functionalities.

Wire consumption

Significantly reduce the highest cost-intensive influence on running costs, thanks to optimized wire feed rate and faster technologies with the Intelligent Power Generator (IPG).

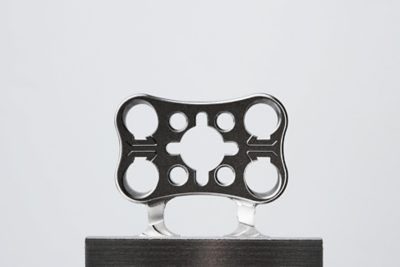

Increase your design possibilities

Increase your design possibilities

Experience EDM’s many strong advantages more conventional medical industry manufacturing methods. Count on our latest-generation wire EDM solutions to simplify your execution of complex geometries and benefit from reduced tooling costs, absence of machining forces, controlled biocompatibility, and a broad array of Automation choices.

Accuracy is the key to your productivity

Accuracy is the key to your productivity

Repeatability and longer tooling life are “must haves” with component miniaturization and increasing production volumes. Achieve the accuracy down to 2 µm, machining repeatability with thermostabilization and finer surface finishes down to Ra 0.08 µm essential to your daily success with the new CUT P Pro wire-cutting EDM series.

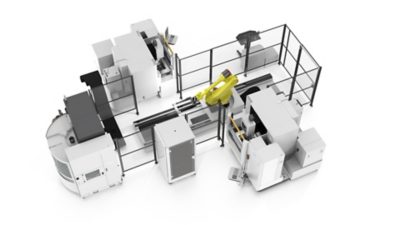

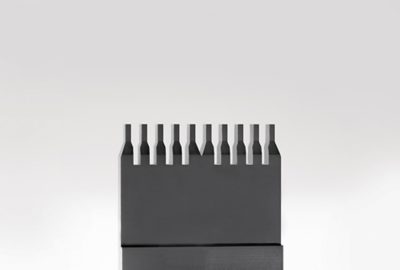

Optimize your workflow, reduce your time to market

Optimize your workflow, reduce your time to market

Shorter time to market, larger product portfolios and zero-defect manufacturing call for shorter, more efficient manufacturing flows, more flexible production lines, and more reliable processes. Overcome these challenges with the SMART machine solutions as well as automation solutions to allow maximal productivity while keeping full flexibility. Two very contradictory notions.

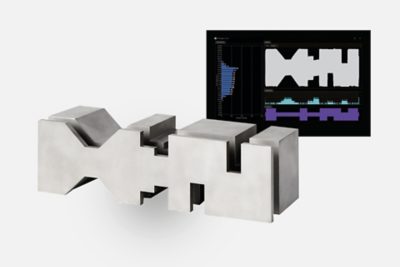

Intelligent Spark Protection System (ISPS)

Intelligent Spark Protection System (ISPS)

The ISPS module recognizes difficult machining conditions and automatically adapts the parameters to avoid wire breakage during roughing. The ISPS module benefits from Spark Track technology: It uses the spark distribution data to maximize machining performance and provide complete wire breakage protection.

Step into the future

The time you spend cutting is the time you are making money. That’s why GF Machining Solutions optimizes your productivity and machine availability with SMART and connected solutions.

Establish your autonomy WorkShopManager and CellManager take you to the next level of flexibility.

Ensure quality with monitoring and traceability eTracking digitizes your process monitoring.

Closer support for you Secure highest availability with rConnect.

Manage your resources Increase your efficiency with smart consumables.

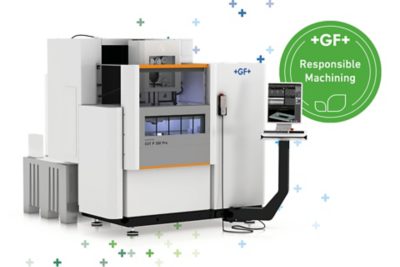

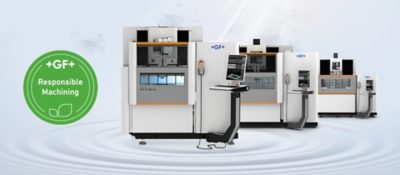

Sustainability

Discover our innovations that allow our new Wire-Cutting EDM machines to achieve reductions of up to 30% in daily energy consumption, compared to the previous generation.

Please accept all cookies to view the external content.

IPG – Higher electrical efficiency

Our latest generation of Intelligent Power Generators (IPG) allows a digital and quick control of each spark, improving the machine’s electrical efficiency.

IPG – Reduced energy waste

Thanks to its resonant switching mode, IPG contributes to reducing waste of energy.

IPG – Reduced component wear

IPG reduces wear on electrodes during the whole product lifecycle.

Econowatt

Smart module enabling energy-saving standby mode and programmable fast reactivation “wake up” option. No energy is wasted during non-productive time and every morning equipment is prepared and ready to carry out the requested tasks.

Injection pumps – Higher energy efficiency

Use of injection pumps instead of high-pressure pumps reduces the energy consumption.

Learn more

Specifications

CUT P 350 Pro

Main Specifications

Main Specifications
Travel X, Y, Z *

350 x 250 x 220 mm

13.77 x 8.66 x 8.66 in
Min. surface roughness RA 0.08 μm
Max. taper angle / height

± 30°/220 mm (45°/220 mm optional)

± 30°/8.66 in (45°/8.66 in optional)
Max. workpiece dimensions *

1000 x 550 x 220 mm

39.37 x 21.65 x 8.66 in
Max. workpiece weight

750 kg

1653 lbs

Workpiece

Workpiece
Travel U, V **

350 x 220 mm

13.77 x 8.66 in
Wire diameters

0.15 - 0.33 (0.07-0.10 optional) mm

0.006 - 0.013 (0.003 - 0.004 optional) in
Max. wire spool weight 8 (25 optional)  kg

* Width x depth x height ** Width x depth

CUT P 550 Pro

Main Specifications

Main Specifications
Travel X, Y, Z *

550 x 350 x 400 mm

21.65 x 13.77 x 15.75 in
Min. surface roughness RA 0.08 μm
Max. taper angle / height

± 30°/400 mm (45°/400 mm optional)

± 30°/15.75 in (45°/15.75 in optional)
Max. workpiece dimensions

1200 x 700 x 400 mm

47.24 x 27.56 x 15.75 in
Max. workpiece weight

1500 kg

3307 lbs

Workpiece

Workpiece
Travel U, V **

550 x 350 mm

21.65 x 13.77 in
Wire diameters

0.15-0.33 (0.07-0.10 optional) mm

0.006-0.013 (0.003-0.004 optional) in
Max. wire spool weight 8 (25 optional) kg

* Width x depth x height ** Width x depth

CUT P 800 Pro

Main Specifications

Main Specifications
Travel X, Y, Z *

800 x 550 x 510 mm

31.5 x 21.65 x 20.07 in
Min. surface roughness RA 0.1 μm
Max. taper angle / height

± 30°/510 mm (45°/510 mm optional)

± 30°/20.07 in (45°/20.07 in optional)
Max. workpiece dimensions

1300 x 950 x 510 mm

51.18 x 21.65 x 20.07 in
Max. workpiece weight

3000 kg

6614 lbs

Workpiece

Workpiece
Travel U, V **

800 x 550 mm

31.5 x 21.65 in
Wire diameters

0.15-0.33 mm

0.06-0.013 in
Max. wire spool weight 25 kg

* Width x depth x height ** Width x depth

CUT P 1250 Pro

Main Specifications

Main Specifications
Travel X, Y, Z

1250 x 850 x 100-800 mm

49.2 x 33.5 x 3.9-27.56 in
Min. surface roughness RA 0.2 μm
Max. taper angle / height

30°/800 mm

30°/31.5 in
Max. workpiece dimensions *

2300 x 1300 x 800 mm

90.6 x 51.2 x 31.49
Max. workpiece weight

6000 kg

13228 lbs

Workpiece

Workpiece
Travel U, V

1250 x 850 mm

49.2 x 33.5 in
Wire diameters

0.15-0.33 mm

0.006-0.013
Max. wire spool weight **

25-45 kg

55-100 lbs

* Length x depth x height ** Option
