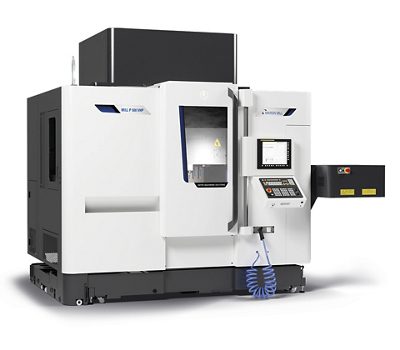

Outstanding micromachining performances over long cycle time
Please accept all cookies to view the external content.
Please accept all cookies to view the external content.
Superior stability via intelligent active cooling system
High-performance linear motors for ultra-fine accuracy
Robust and stiff mechanical design

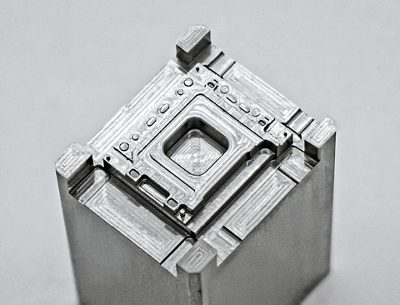

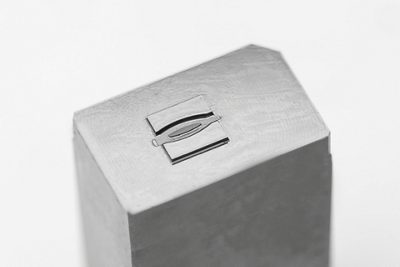

Delivers micron-level precision and thermal stability for compact ICT components. Perfect for reliable, high-volume part manufacturing.

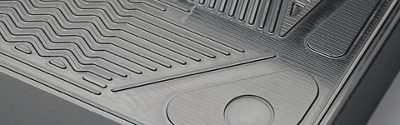

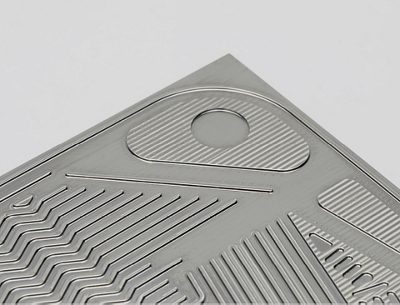

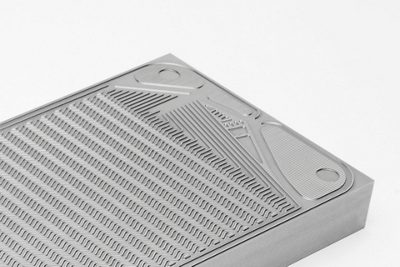

Enables precise, high-speed machining of fuel cell plates. Ensures accuracy and repeatability for automotive needs.

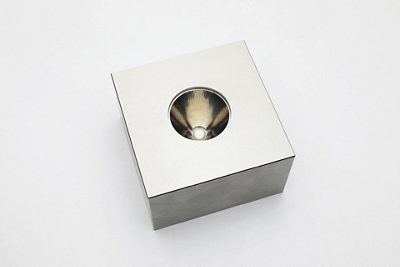

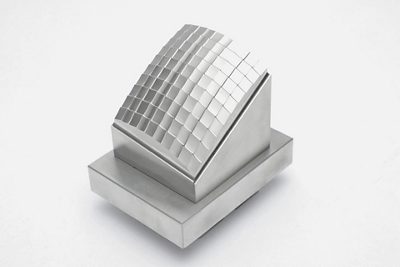

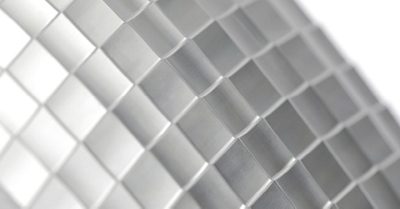

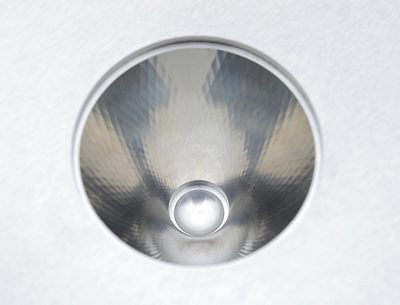

Delivers ultra-smooth surface finishes with stable, high-precision machining. Perfect for reflector molds requiring optical-grade quality.
Intelligent active cooling system
The MIKRON MILL P 500 VHP’s active internal cooling system (Ambient Robust technology) circulates temperature-controlled fluid, ensuring precise thermal management. This enables consistent accuracy and stability throughout long micromachining cycles.
Cooled elements
• Machine base and column
• Spindle
• Direct-drive X, Y and Z axes
• Z-axis slide
• Table
• Laser measuring system support
• Water tank
The MIKRON MILL P 500 VHP features thermal insulation housing that isolates it from external temperature fluctuations, ensuring optimal thermal stability and consistent precision during operation.

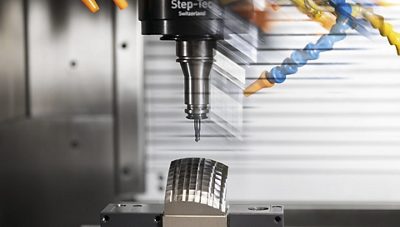

Dynamic motion
Backlash-free motion for micro finishes
Linear motors provide precise, backlash-free positioning with high repeatability. Their fast dynamic response minimizes vibration and mechanical backlash, ensuring superior surface finish and contour accuracy in micromachining.
• Travel speed 30 m/min
• Acceleration 5 m/s²
High-quality Swiss made Spindle
Precision engineered for extreme micromachining
STEP TEC high-speed Spindles use premium components and advanced thermal design for stable, precise, vibration-free micromachining at high speeds. Swiss-made in-house for unmatched quality, ideal for automotive, electronics, and medical applications.
42,000 min-1, HSK-E40

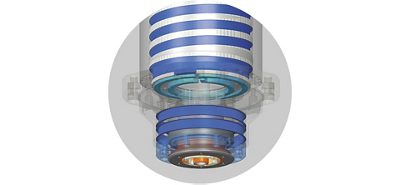

OptiCool
STEP TEC’s OptiCool Spindle series ensures not only that the Spindle remains thermally stable, but that natural heat transfer to the Spindle support (e.g., Z axis) is limited to the lowest amount possible, in order to preserve the machine’s geometry.

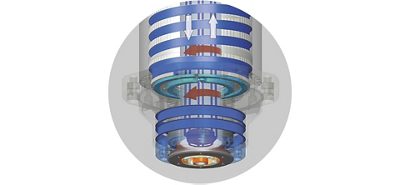

CoolCore
Where conventional stator cooling reaches its limits, STEP TEC’s CoolCore Spindle goes beyond the ordinary to lower the temperature and minimize temperature fluctuations in the rotating shaft.
Applications
Specifications
MILL P 500 VHP
Main specifications
Main specifications |
|
| Travel X, Y, Z | 500 x 450 x 350 mm |
| Feed rate X/Y/Z | 30 m/min |
| Working table | T-slot table 620 x 500 mm |
| Table load | 300 kg |
| Working spindle | 42,000 rpm - HSK-E40 |
| Tool magazine | 30 / 60 pockets |
| Automation | Pallet magazine 5 pallets Delphin System 3R Workpartner 1+ and Transformer WorkMaster |
