Ready for Delivery - Die-sinking EDM

GF Machining Solutions, a leader in Die-sinking EDM since 1954, combines Agie and Charmilles' expertise. Their AgieCharmilles FORM machines feature the Swiss-made Intelligent Power Generator (IPG) and Tecform Algorithmic Intelligence, offering 70 years of EDM expertise for ultraprecise machining, mold making, or high-precision projects. Discover their exceptional performance and innovations, they are ready to be delivered to you now!

FORM X series

FORM X 400
FORM X 400
FORM X 400
Travel X, Y, Z 400 x 300 x 350 mm
15.7 x 11.8 x 13.8 in
Max. workpiece dimensions 820 x 582 x 250 mm
32.28 x 22.83 x 9.84 in
Max. workpiece weight 800 kg
1763.70 lbs
Max. electrode weight
50 kg
110.23 lbs
Min./Max. distance between table and chuck 170 - 520 mm
6.69 - 20.47 in
Location Europe

empty

FORM S

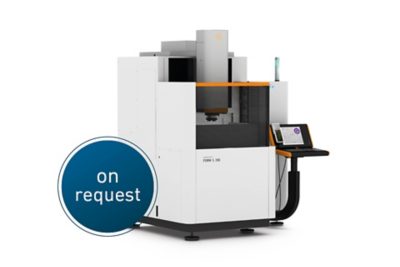

FORM S 350
FORM S 350
FORM S 350
Travel X, Y, Z350 x 250 x 300 mm
13.78 x 9.84 x 11.81 in
Max. workpiece dimensions790 x 530 x 300 mm
31.1 x 20.87 x 11.81 in
Max. workpiece weight500 kg
1102.31 lbs
Max. electrode weight
50 kg
110.23 lbs
Min./Max. distance between table and chuck
LocationEurope

empty

FORM P series

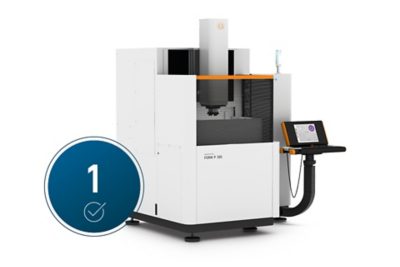

FORM P 350
FORM P 350
FORM P 350
Travel X, Y, Z 350 x 250 x 300 mm
13.78 x 9.84 x 11.81 in
Max. workpiece dimensions 700 x 460 x 285 mm
27.56 x 18.11 x 11.22 in
Max. workpiece weight 500 kg
1102.31 lbs
Max. electrode weight
50 kg
110.23 lbs
Min./Max. distance between table and chuck 150 - 450 mm
5.91 - 17.72 in
Location Europe

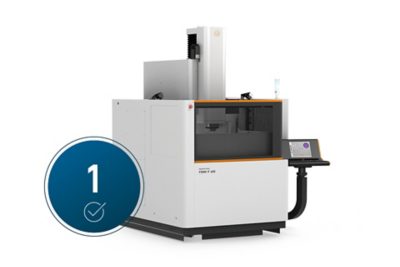

FORM P 600
FORM P 600
FORM P 600
Travel X, Y, Z 600 x 400 x 450 mm
23.62 x 15.75 x 17.72 in
Max. workpiece dimensions 1040 x 730 x 410 mm
40.94 x 28.74 x 16.14 in
Max. workpiece weight 1600 kg
3527.40 lbs
Max. electrode weight
50 kg
110.23 lbs
Min./Max. distance between table and chuck 150 - 600 mm
5.91 - 23.62 in
Location Europe
FORM P 900
FORM P 900
FORM P 900
Travel X, Y, Z 900 x 700 x 500 mm
35.43 x 27.56 x 19.68 in
Max. workpiece dimensions 1670 x 1120 x 560 mm
65.75 x 40.09 x 22.05 in
Max. workpiece weight 3000 kg
6613.86 lbs
Max. electrode weight
50 kg
110.23 lbs
Min./Max. distance between table and chuck 322 - 822 mm
12.68 - 32.36 in
Location Europe

FORM E series

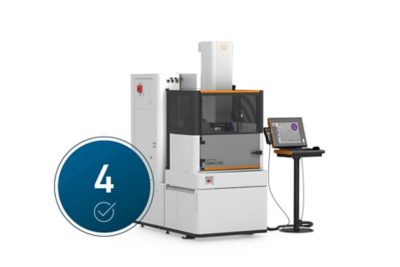

FORM E 350
FORM E 350
FORM E 350
Travel X, Y, Z 350 x 250 x 250 mm
13.78 x 9.85 x 9.85 in
Max. workpiece dimensions 800 x 500 x 265 mm
31.50 x 19.69 x 10.44 in
Max. workpiece weight 200 kg
400 lbs
Max. electrode weight
50 kg
110.23 lbs
Min./Max. distance between table and chuck 170 - 420 mm
6.69 - 16.53 in
Location Europe
FORM E 600
FORM E 600
FORM E 600
Travel X, Y, Z 600 x 400 x 400 mm
23.62 x 15.75 x 15.75 in
Max. workpiece dimensions 1000 x 700 x 400 mm
39.37 x 27.56 x 15.75 in
Max. workpiece weight 1000 kg
2204 lbs
Max. electrode weight
100 kg
220 lbs
Min./Max. distance between table and chuck 190 - 590 mm
7.48 - 23.23 in
Location Europe
