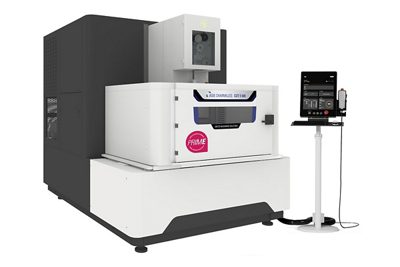

AGIE CHARMILLES CUT E PRIME

NOW IS THE TIME
There won’t be a better opportunity to get your AGIE CHARMILLES wire EDM. Claim your CUT E PRIME machine and enjoy new levels of access, performance and support.

VALUE OFF THE CHARTS

Our two eligible machines, the CUT E 350 PRIME and CUT E 600 PRIME, sport a special configuration with extra features. It’s unprecedented access to the AGIE CHARMILLES brand — and all that it has to offer.

PERFORMANCE INTO PROFIT

There are many high-quality wire EDMs out there, but only one lets you work faster, make the parts you need faster and invoice faster. That’s the CUT Series from AGIE CHARMILLES.

TRUE PARTNERSHIP

Once you have your CUT E PRIME on the floor, you also have us: service, application support, spare parts availability, decades of expertise from a partner that invented the process.

Machine specifications
CUT E PRIME applications

Request a Quote

RECENT APPLICATIONS

A big perk of elite wire EDM machines like the CUT E Series: you can set your watch to their precision and repeatability.

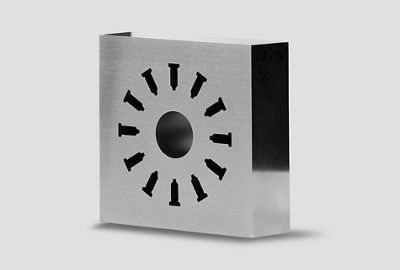

Stamping die

Height: 20 mm
Steel
AC CUT AH (brass coated)
Five cuts
Clearance: 4 µm
Surface finish: Ra 0.22 µm

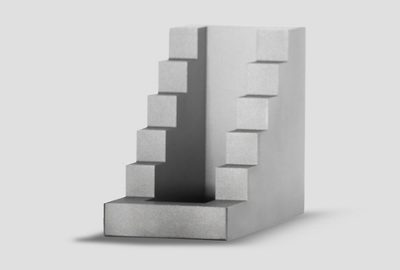

Variable height

The POWER-EXPERT module decides the optimal power to send in the wire, and is especially efficient for stepped parts.

Height: 10-60 mm
Steel
AC BRASS 900 (hard) wire
Three cuts
Surface roughness: Ra 0.55 µm

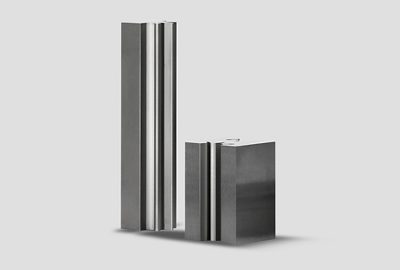

Hard metal die

Height: 20 mm
Tungsten carbide
AC CUT AH (brass coated) wire
Five cuts
Surface roughness: Ra 0.17 µm

KEY FEATURES & SPECS IN THE CUT E 350 & 600 PRIME

Decades of invention and optimization stand behind the CUT E 350 & 600 PRIME, allowing you to experience new levels of success.

Intelligent Power Generator (IPG) helps you meet quality and precision demands
- Onboard technology boosts cutting speed, precision and surface finish
Turbo Tech, our onboard speed technology, puts you on the performance fast track
- Increases processing speed while ensuring accuracy
UNIQUA HMI bridges sequential and object-oriented programming
- Robust, versatile and friendly control suitable for both experts and beginners

CUT E 350

Main specifications
Travel X, Y, Z	350 x 250 x 250 mm 13.78 x 9.84 x 9.84 in
Min. surface roughness RA	0.14 μm 6 μin
Dimensions of complete equipment *	1850 x 3050 x 2220 mm 72.83 x 120.07 x 87.40 in
Max. taper angle / height	± 30°/50 mm ± 30°/1.97 in
Max. workpiece dimensions	820 x 680 x 250 mm 32.28 x 26.77 x 9.84 in
Max. workpiece weight	400 kg 882 lbs

Workpiece
Travel U, V	± 45 mm ± 1.77 in
Wire diameters	0.15-0.30 (0.10 optional) mm 0.006-0.012 (0.04 optional) in
Max. wire spool weight	8 (25 optional) kg

* Width x depth x height

CUT E 600

Main specifications
Travel X, Y, Z	600 x 400 x 350 mm 23.62 x 15.75 x 13.78 in
Min. surface roughness RA	0.14 μm 6 μin
Dimensions of complete equipment *	2160 x 3400 x 2320 mm 85.04 x 133.86 x 91.34 in
Max. taper angle / height	± 30°/50 mm ± 30°/1.97 in
Max. workpiece dimensions	1030 x 800 x 350 mm 40.55 x 31.5 x 13.78 in
Max. workpiece weight	1000 kg 2205 lbs

Workpiece
Travel U, V	± 50 mm ± 1.97 in
Wire diameters	0.15-0.30 (0.10 optional) mm 0.006-0.012 (0.04 optional) in
Max. wire spool weight	8 (25 optional) kg
