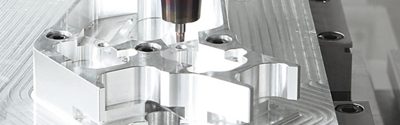

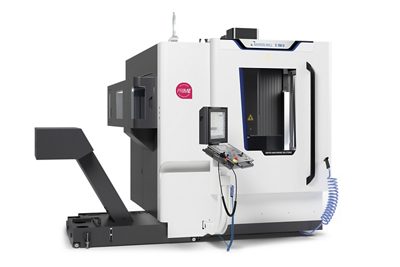

MIKRON MILL E 700 U PRIME

PRIMED FOR 5-AXIS MILLING
This is your best chance to get that MIKRON MILL. Jump on the limited-time MILL E 700 U PRIME before it’s too late.

MIKRON MILL E 700 U PRIME

VALUE OFF THE CHARTS

The limited-edition MILL E 700 U PRIME features a special configuration with bonus features added on. It’s unprecedented access to the MIKRON MILL 5-axis lineup — and all that it has to offer.

PERFORMANCE INTO PROFIT

There are many high-quality VMCs out there, but only one lets you work faster, make the parts you need faster and invoice faster. That’s the MILL Series from MIKRON MILL.

TRUE PARTNERSHIP

Once you have your MILL E 700 U PRIME on the floor, you also have us: service, application support, spare parts availability, decades of expertise from a partner that invented the process.

MILL E 700 U PRIME

RECENT APPLICATIONS

Here are a few of the many complex applications the MILL E 700 U PRIME handles easily.

MILL E 700 U PRIME

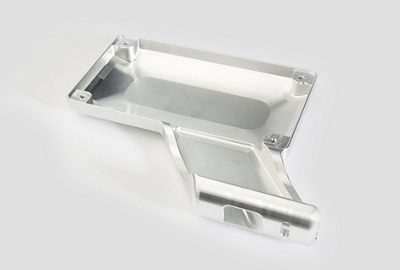

PLATE COVER

  • Sector: aerospace

  • Material: AL 7575

  • Wall thickness: 0.5 mm

  • Surface finish: Ra 0.5 µm

  • Accuracy: ± 0.05 mm

  • Repeatability: 24 / 7 production

MILL E 700 U PRIME

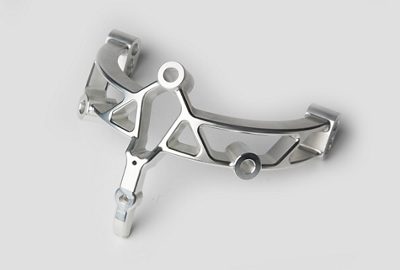

SURGICAL SUPPORT DEVICE

  • Sector: medical

  • Material: AL 6061

  • Process time: 6.5 h

  • Surface finish: Ra 0.3 µm

  • Production cost reduction: 30%

MILL E 700 U PRIME

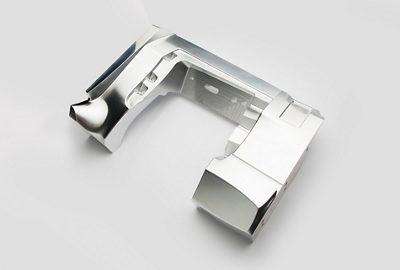

AIRBAG SHOOTING DEVICE

  • Sector: automotive

  • Material: AL 6082

  • Tool range: Ø4 mm to Ø40 mm

  • Removed material: 0.021 m3/min

  • Process time: 23 h

  • Accuracy: ± 0.03 mm

KEY FEATURES & SPECS IN THE MILL E 700 U PRIME

With minimized noise, superior quality, application versatility and automation readiness, the MILL E 700 U PRIME typically becomes a shop favorite the moment it lands on the floor.

  • 700 mm / 600 mm / 500 m XYZ travels

  • Heidenhain TNC 640

  • STEP TEC spindle: 120 Nm, 20,000 rpm

  • Integrated or third-party automation

  • Integrated palletization

  • Up to 60 tools integrated (up to 215 on a tower)

  • Direct drive rotary and tilting table

  • Swivel range from -65° TO +120°

  • Compact footprint

  • Ergonomic access

MILL E 700 U

Main Specifications

Main Specifications
Travel X, Y, Z 700 x 600 x 500 mm
Feed rate X/Y/Z 30 m/min
Swivelling range -65°
+120°
Rotary range n x 360°
Feed rate swivel 17 (3+2)
32 (5X simultaneous with DD) rpm
Feed rate rotary 28 (3+2)
112 (5X simultaneous with DD) rpm
Working table T-slot table Ø630 mm
System 3R Dynafix 350x350 / Erowa UPC 320x320 mm
System 3R Delphin 400x400 / Erowa MTS 400x400 mm
Table load 300 / 500 (5X simultaneous with DD) kg
Working spindle 20'000 rpm - HSK-A63
12'000 rpm - ISO & BT40
Tool magazine 30 / 60 / Tool Tower 120 / 170 / 215 pockets
Automation Pallet magazine 7 Dynafix / UPC
Pallet magazine 5 Delphin / MTS
System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis
Control unit TNC 640 (Heidenhain)
Fanuc 0i-MD
