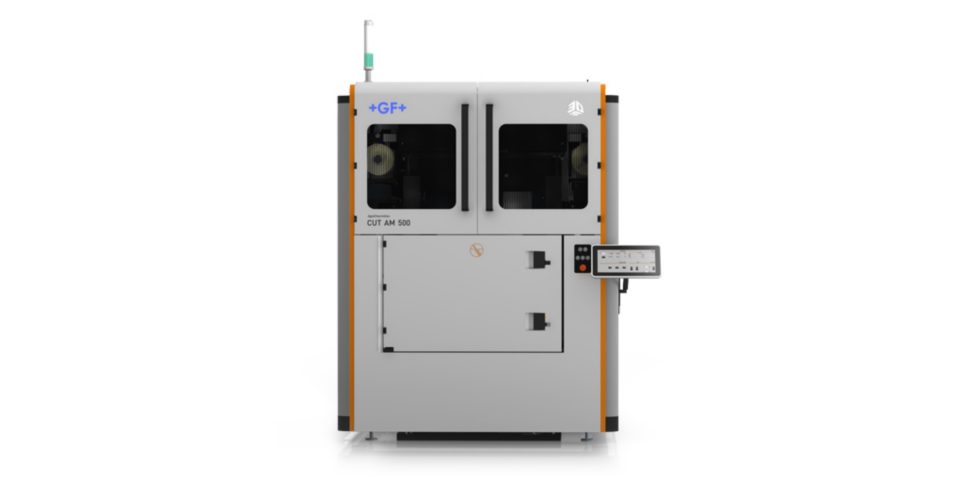

CUT AM 500

Unique EDM separation of AM parts

The universal AgieCharmilles CUT AM 500—based on GF Machining Solutions’ more than 65 years of legendary EDM expertise—makes a significant contribution to the AM process: It is a fast, precise, affordable and Automation-ready alternative to using standard EDM or a band saw to separate additively manufactured parts from the build plate. The CUT AM 500 is the perfect complement to GF Machining Solutions’ and 3D Systems’ scalable, workflow-optimized DMP Factory 500 and DMP Flex/Factory 350 3D metal printing solutions.



Maintain part integrity

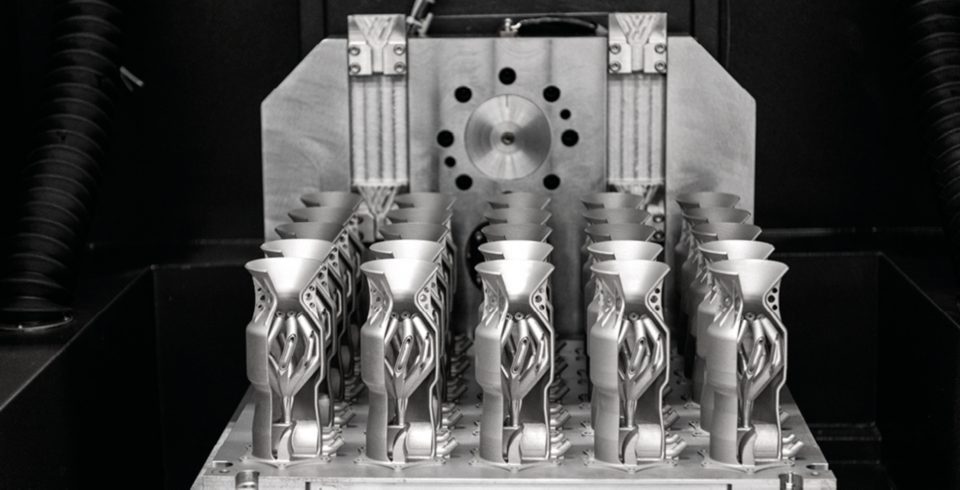

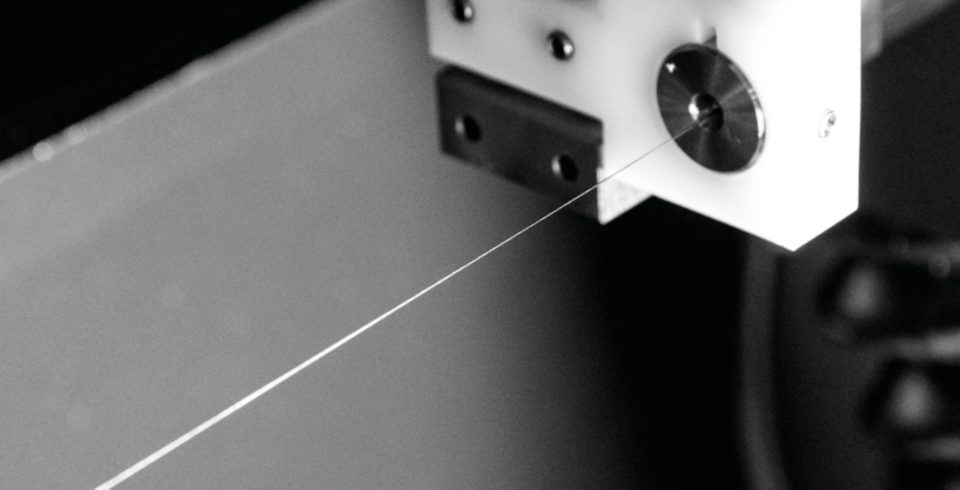

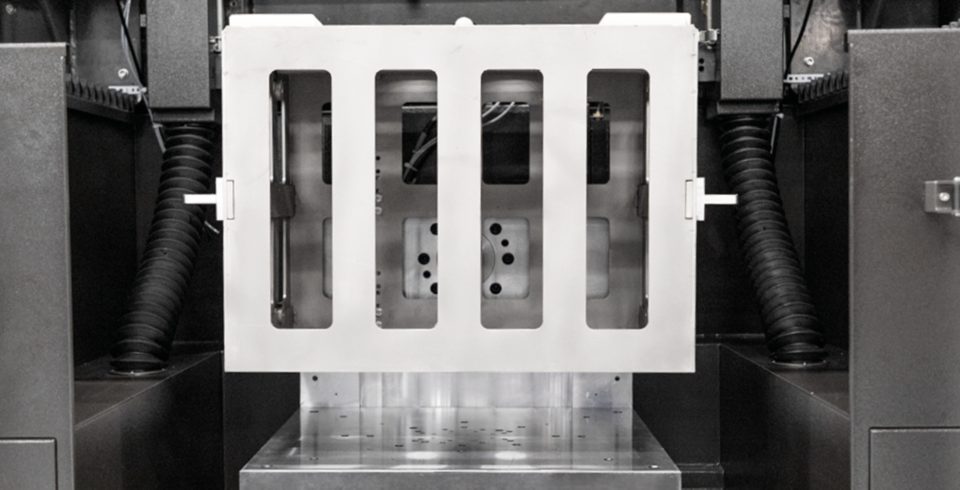

Maintain your part integrity by ensuring that your parts are undamaged during the cutting process, thanks to the tilting table, the horizontal wire Electrical Discharge Machining (EDM) process and the customizable baskets.

Fast separation process

Get the most reliable combination of advantages for cutting additively manufactured parts with specific support structures remaining powder: a machine with unique features, including a generator enabling the fastest and most reliable EDM process.

Low running cost

Reduce your running costs to the minimum level—as low as the cost level of a band saw—with our new, dedicated technology in combination with the double spool concept.

Automation ready

Discover easier clamping and referencing as well as Automation readiness with a machine layout designed for integration of a clamping system.

1/
Universal solution

The CUT AM 500 is designed to cut parts printed on any powder bed fusion printer.

Built plate dimensions

The CUT AM 500 can separate 3D-printed parts from large build plates with a weight of up to 500 kg.

Wire diameter

Reduce your total build time and save costs thanks to the very small diameter of the molybdenum wire.

Maximum speed

Extremely fast cutting process in comparison to standard EDM machines.

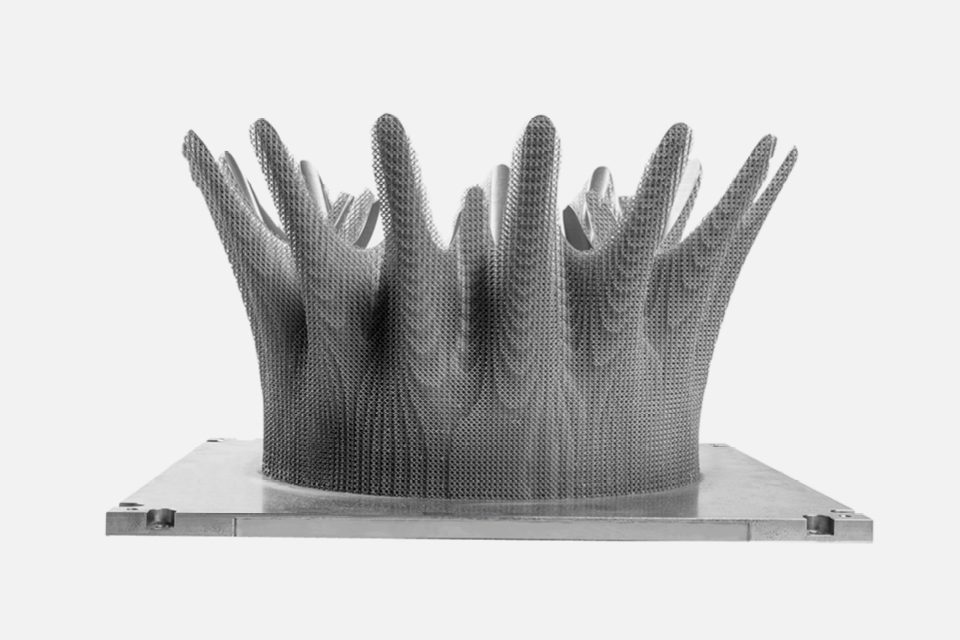

Lobed exhaust mixer

Lobed exhaust mixer

Hip cups

Hip cups

Power tool

Power tool

Fuel injection nozzles

Fuel injection nozzles

Specifications

CUT AM 500

Main specifications

Dimensions of complete equipment (WxDxH) 1700x2953x2224 mm
Dimensions of complete equipment with lamp (WxDxH)1700x2953x2608 mm
Dimensions of complete equipment with extraction system (WxDxH)1700x2953x2708 mm
Total weight of equipment without dielectric3220
Total weight of equipment with dielectric4120
Tank volume900L

Cutting specifications

Max. part dimensions
510x510x490
Max. part weight (base plate + parts)500 kg
Y, Z Travel650x200 mm
Y, Z measurement resolution0.1 μm
Speed of axis movement0-2000 mm/min
Wire typeMolybdenum 0.2 mm
Max.machining speed240 mm2/min
Min. roughness 6 μm (Ra) (according to geometries and technologies)
Accuracy±0.1 mm
